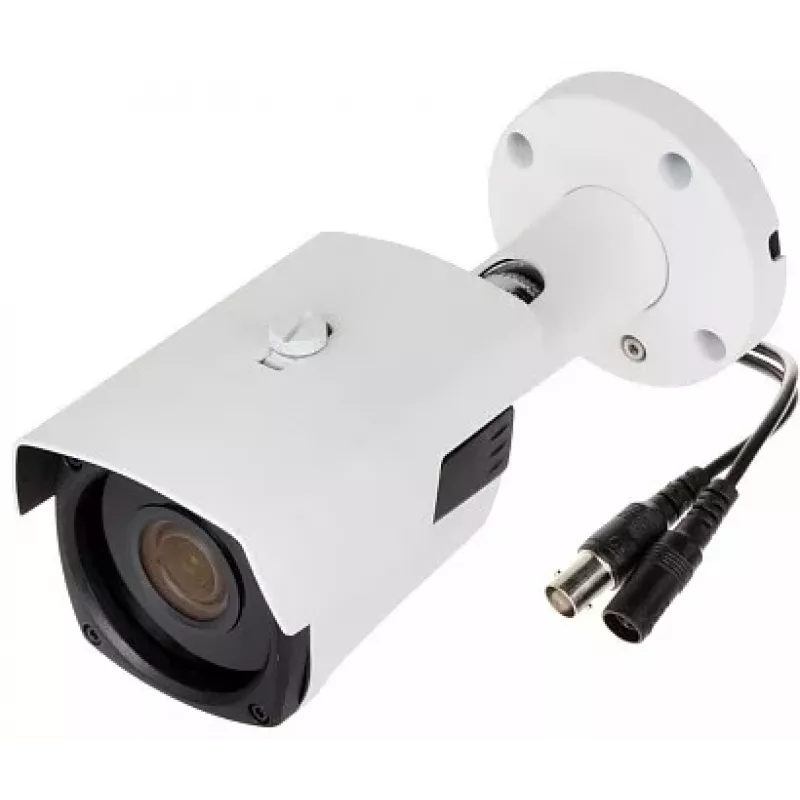

Cámara AHD, HD-CVI, HD-TVI, PAL 8,3 Mpx, 4K UHD

This high-performance 8.3 Megapixel 4K UHD camera supports multiple video output formats including AHD, HD-CVI, HD-TVI, and CVBS (PAL/NTSC), making it compatible with a wide range of DVRs and monitoring systems. Featuring a 1/2.8" Progressive Scan CMOS sensor, it delivers crisp and detailed images with a resolution of 3840x2160 pixels. The camera is equipped with a fixed 3.6mm lens providing an approximate 88° horizontal field of view, ideal for general surveillance applications.

Advantages

With an IP67 weatherproof rating, this camera is suitable for both indoor and outdoor use, ensuring reliable operation in harsh environments. The built-in IR cut filter enables automatic day/night switching, and the infrared LEDs provide up to 30 meters of night vision. Digital WDR and 2D DNR enhance image quality in challenging lighting conditions.

Suitable for

• Residential and commercial security systems
• Outdoor surveillance requiring weatherproof durability
• Integration with existing AHD, CVI, TVI, or analog DVRs

Key specifications

• Image Sensor: 1/2.8" Progressive Scan CMOS
• Effective Pixels: 3840(H) x 2160(V) - 8 Megapixel (4K UHD)
• Video Output: AHD, HD-CVI, HD-TVI, CVBS (PAL/NTSC) selectable
• Frame Rate: 15fps (NTSC), 12.5fps (PAL) at 4K
• Lens: Fixed 3.6mm, Horizontal FOV approx. 88°
• IR Distance: Up to 30 meters (98 feet)
• Day/Night: IR Cut Filter with auto switch
• Minimum Illumination: 0.01 Lux (F1.2, AGC ON), 0 Lux with IR
• WDR: Digital WDR (DWDR)
• Noise Reduction: 2D DNR
• Ingress Protection: IP67
• Power Supply: DC 12V, Max. 4.5W
• Operating Temperature: -30°C to +60°C (-22°F to 140°F)
• Housing Material: Metal
• Connectivity: BNC video output

Recommendations

For optimal performance, use a compatible DC 12V power supply and connect via BNC to a DVR supporting the selected video format. Ensure proper mounting to maintain the IP67 seal.
