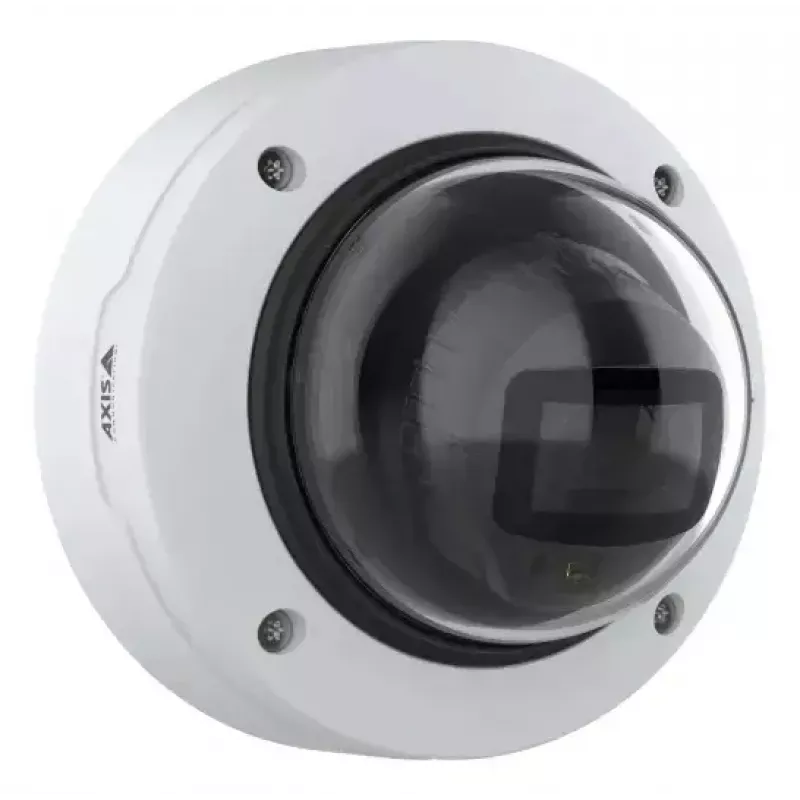

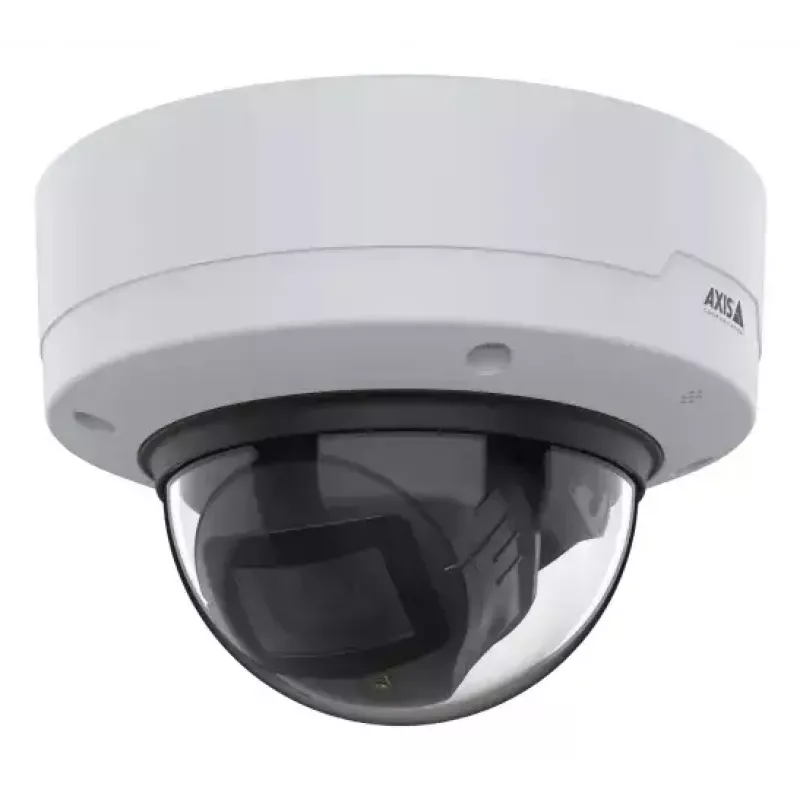

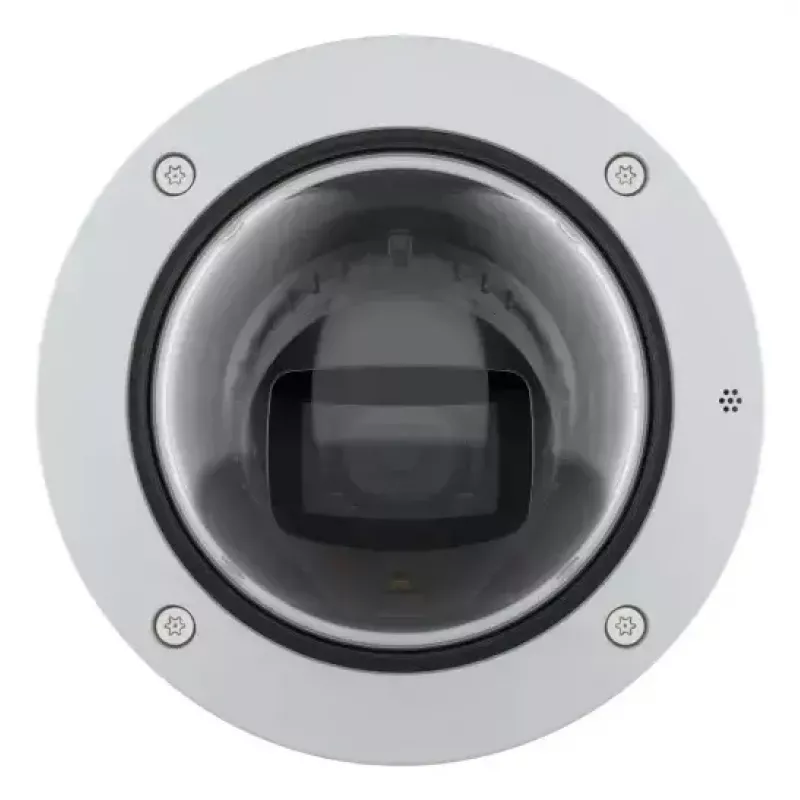

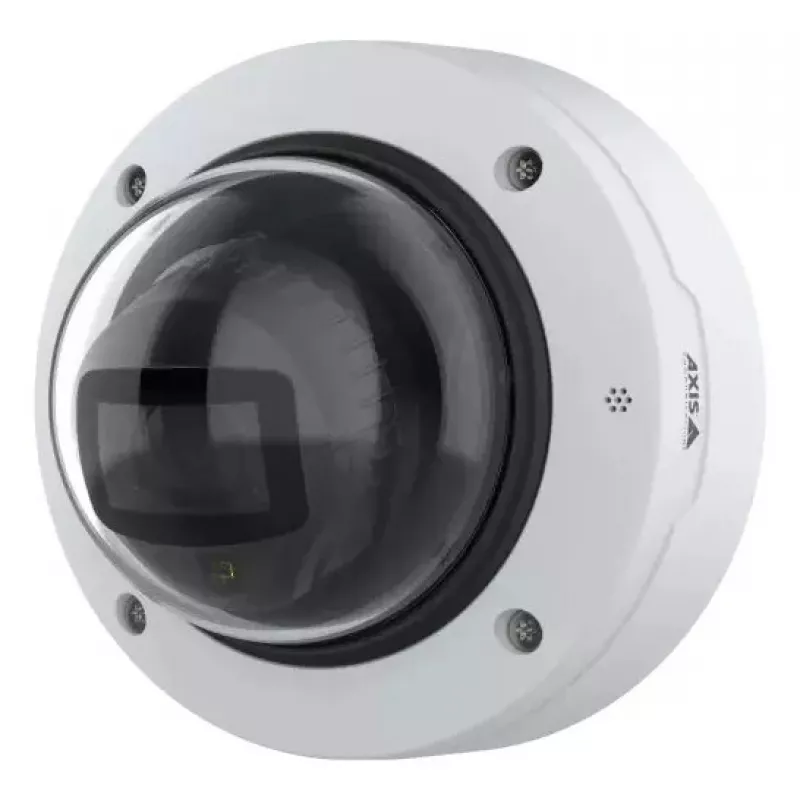

Cámara de seguridad IP tipo domo AXIS P3288-LV — 3840×2160, CMOS 1/1,8 inch, 4,4–14,6 mm, montaje en techo, interior/exterior

AXIS P3288-LV is an IP dome security camera designed for ceiling mounting in both indoor and outdoor environments. It captures up to 3840×2160 (8 MP) resolution using a 1/1.8" CMOS sensor and a varifocal 4.4–14.6 mm lens with a horizontal field of view from 103° to 29° and vertical field from 56° to 17°. Built on the ARTPEC-9 platform with a deep learning processing unit, the camera supports AV1, H.264 and H.265 codecs, Axis Zipstream and Lightfinder 2.0 to deliver high-detail images while reducing bandwidth and storage needs. The device is rated for harsh conditions with IK10 impact protection and NEMA 4X-level robustness, and includes features such as OptimizedIR for pitch-dark surveillance, onboard analytics and hardware-based security.

Advantages

AXIS P3288-LV provides forensic-quality 8 MP images in varied lighting thanks to Lightfinder 2.0 and Forensic WDR, and maintains visibility in complete darkness with OptimizedIR. The ARTPEC-9 chip and DLPU enable advanced analytics and edge processing, including preinstalled AXIS Object Analytics for detection, classification, tracking and counting of humans. Efficient compression with Axis Zipstream and AV1 lowers operational costs for bandwidth and storage. The camera also integrates Axis Edge Vault secure key storage and tamper detection to protect data and maintain system integrity, while the ceiling dome form factor supports discrete installation and broad coverage.

Suitable for

• Perimeter surveillance of buildings and facilities
• Entrance and lobby monitoring
• Large indoor spaces such as warehouses, retail floors and atriums
• Outdoor areas requiring vandal-resistant cameras
• Applications that need on-edge analytics and real-time alerts

Key specifications

• Image sensor: 1/1.8" CMOS, 8 MP (3840×2160)
• Lens: Varifocal 4.4–14.6 mm, horizontal FOV 103°–29°, vertical FOV 56°–17°
• Video codecs: AV1, H.264, H.265; Axis Zipstream supported
• Low-light performance: Lightfinder 2.0 and Forensic WDR
• Night vision: OptimizedIR for surveillance in darkness
• Edge processing: ARTPEC-9 with deep learning processing unit for analytics
• Environmental protection: IK10 impact resistance, NEMA 4X-level robustness, IP54-rated
• Mounting: Ceiling dome, indoor/outdoor use
• Connectivity: Wired Ethernet (LAN)
• Rotation range: 95°
• Weight: approximately 820 g

How to use

Install the camera on a ceiling mount at a height and angle that provides the required field of view for your coverage area. Connect the device to a wired Ethernet network for power and data, or integrate with a compatible PoE switch or injector. Configure video stream settings and codec preferences (AV1, H.264 or H.265) on the management interface to balance image quality with bandwidth and storage. Enable AXIS Object Analytics and other on-edge applications as needed; calibration and region settings within the camera software will optimize detection and counting. Use Axis Edge Vault and device security settings to manage credentials and certificates. Perform regular firmware updates to maintain performance and security.

Recommendations

For perimeter and long-distance monitoring, select a tele focal length and position the camera to take advantage of the 292 m detection range at tele settings; for wide-area coverage choose the wide end of the varifocal lens. Use Axis Zipstream with AV1 to reduce storage and bandwidth while preserving forensic detail. In high-glare or mixed-light scenes enable Forensic WDR and adjust exposure settings. To protect privacy, configure AXIS Live Privacy Shield and use audio analytics selectively to monitor relevant sound events only.
