Telegärtner STX Set de conectores macho RJ45, Cat.6, variante 1, sin espiral antiacodamiento, para cables de par trenzado AWG 24-27 J80026A0005

Field-terminable RJ45 plug supporting up to 10 Gigabit Ethernet and Power over Ethernet up to 4PPoE (IEEE 802.3bt).

Overview

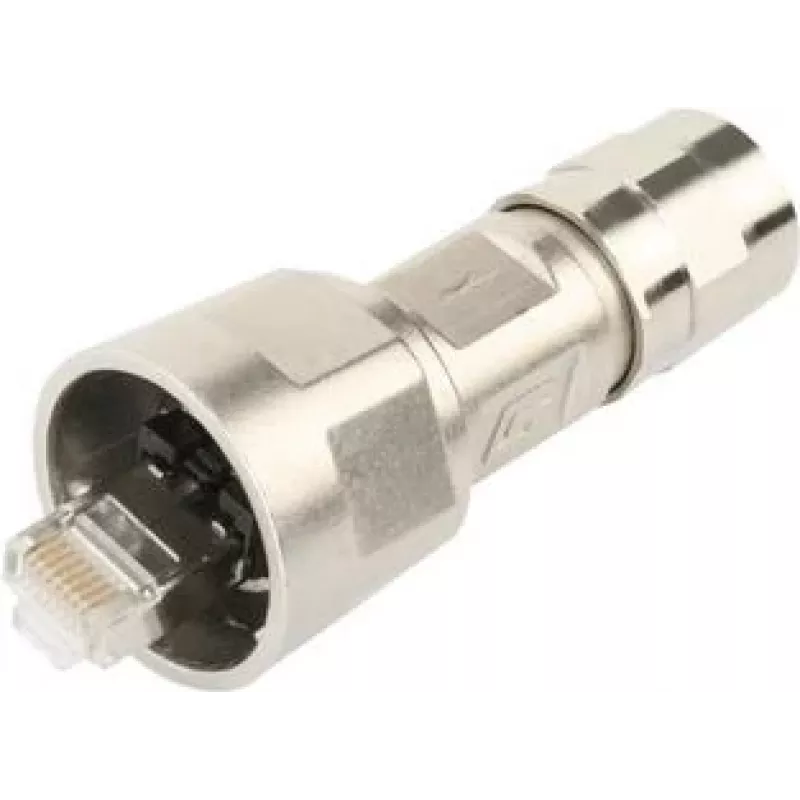

The Telegärtner STX RJ45 Plug Set (Cat.6, Variant 1) is a shielded, tool-free field-terminable connector for twisted pair cables with AWG 24-27 conductors (solid or stranded). It features gold-plated contacts in an 8P8C configuration and a die-cast zinc housing. The plug is reusable up to 10 cycles and operates from -40°C to +70°C. It is supplied without bend protection spiral.

What stands out

• Supports 10GBASE-T and PoE++ (4PPoE)
• Tool-free termination for solid or stranded conductors
• Die-cast zinc housing with gold-plated contacts
• Reusable up to 10 cycles
• Wide temperature range: -40°C to +70°C

Technical details

• Connector type: RJ45 plug (8P8C)
• Category: Cat.6
• Shielding: Shielded (STX)
• Termination: Field-terminable, tool-free
• Cable compatibility: AWG 24-27, solid or stranded
• Conductor diameter: 0.36–0.51 mm
• Outer cable diameter: 5.0–9.0 mm
• Contact plating: Gold-plated
• Housing material: Die-cast zinc
• PoE support: PoE, PoE+, 4PPoE (IEEE 802.3af/at/bt)
• Data rate: Up to 10 Gigabit Ethernet
• Bend protection: Without spiral
• Standard compliance: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2
• Operating temperature: -40°C to +70°C
• Flammability rating: UL 94 V-0
• Reusability: Up to 10 cycles
• Variant: Variant 1

Our verdict

A robust, reusable Cat.6 connector for high-speed and high-power applications, ideal for field installations where tool-free termination is required.
