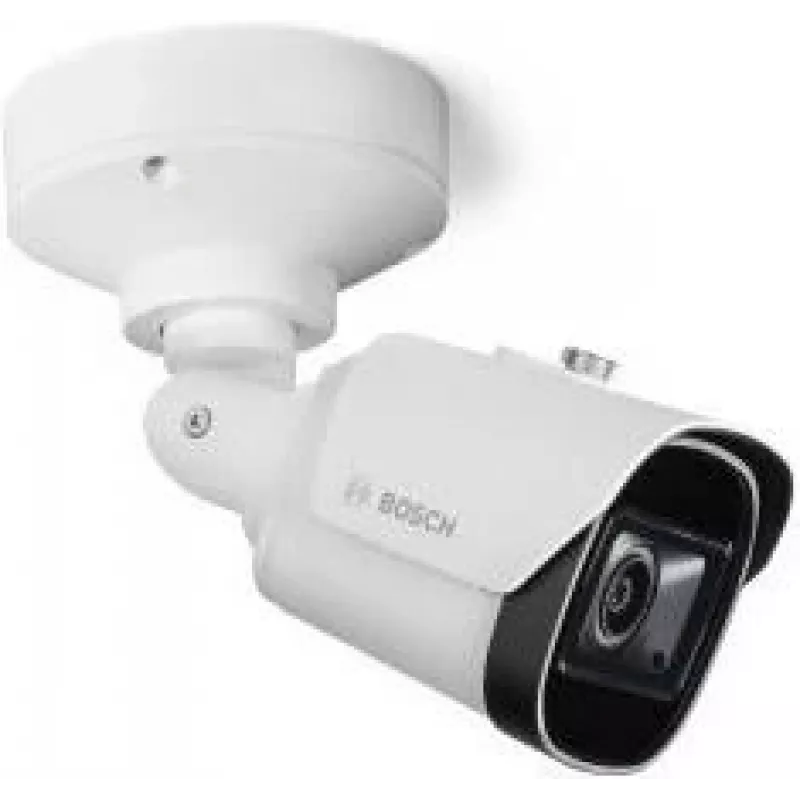

Cámara de vigilancia Bosch NBE-3702-AL IP66 IK10 IR 2MP 3,3-10,2mm

The Bosch NBE-3702-AL is a 2MP IP surveillance camera with a 3.3–10.2 mm varifocal lens, designed to capture clear video across a range of distances and lighting conditions. Built to withstand outdoor environments, the camera offers IP66 ingress protection and IK10 impact resistance for reliable operation in exposed locations. Integrated infrared illumination extends visibility in low-light and nighttime situations, allowing continuous 24/7 monitoring and recording.

Advantages

This camera combines a 2MP sensor with a varifocal 3.3–10.2 mm lens to balance field of view and subject detail. Weatherproof housing with IP66 rating protects against dust and heavy rain, while IK10-rated construction provides resistance to vandalism and physical impact. The built-in infrared capability ensures usable monochrome images in darkness, and the IP network interface supports remote viewing and integration with standard video management systems.

Suitable for

• Perimeter and outdoor area surveillance
• Building entrances and access control points
• Parking lots and loading docks
• Indoor common areas requiring vandal resistance

Key specifications

• Image sensor resolution: 2 megapixels
• Lens type: varifocal 3.3–10.2 mm
• Weather protection: IP66-rated housing
• Impact resistance: IK10-rated enclosure
• Infrared illumination for low-light and night operation
• Network interface: IP camera (Ethernet connectivity)

How to use

Mount the camera at a location that provides the desired coverage and attach it securely to a stable surface. Adjust the varifocal lens to obtain the preferred focal length and framing, then connect the camera to the network using an Ethernet cable and provide power according to the chosen installation method. Configure video settings, motion detection and recording parameters through the camera’s web interface or your video management system. Verify IR operation and image focus during nighttime to ensure consistent performance.

Recommendations

For reliable long-term performance, install the camera under minimal direct exposure to extreme heat or corrosive environments, perform periodic cleaning of the housing and lens, and use surge-protected power and network infrastructure. Position the camera to minimise occlusions and glare from artificial lights for optimal image quality.
