Cámara de vigilancia CCTV LevelOne 4-in-1 Fixed CCTV Analog Camera FHD 1080P

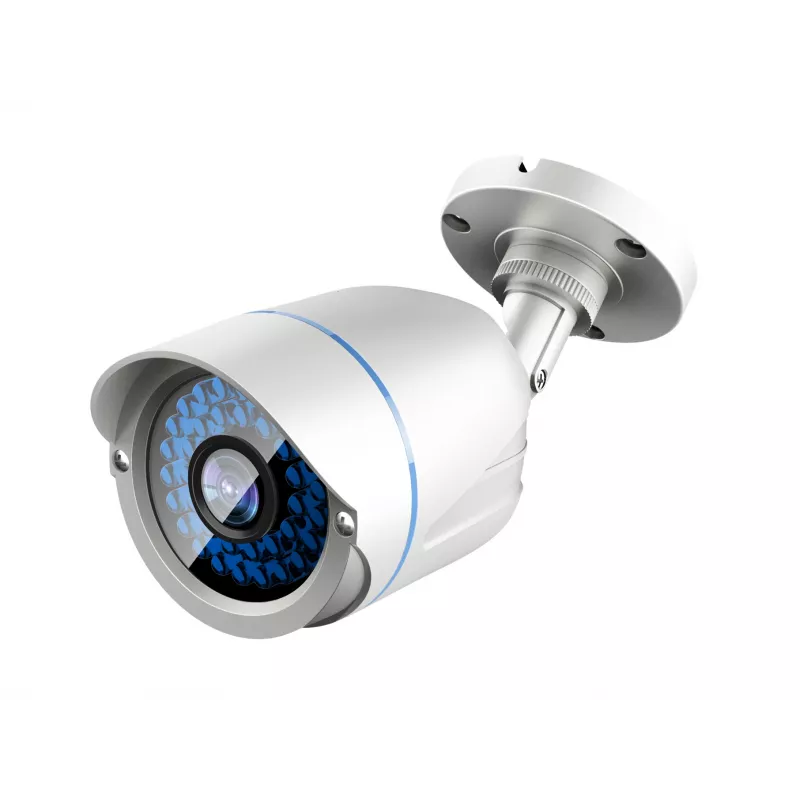

The LevelOne 1080P CCTV Camera is a weatherproof, bullet-style fixed CCTV camera designed for outdoor and indoor ceiling or wall mounting. It records Full HD 1080P video using a CMOS sensor with a 3.6 mm fixed focal length and supports wired connectivity. The camera operates in temperatures from -20°C to 55°C, has ATW white balance for improved image quality in changing light, and is compatible with LevelOne DSK-x001 4/8-Channel CCTV kits.

Advantages

This LevelOne CCTV camera provides high-definition 1080P recording and playback, an IP67 weatherproof rating for reliable outdoor use, and a built-in infrared (IR) system for night monitoring up to 30 metres. An IR correction feature maintains accurate focus in both visible and infrared modes. The camera’s bullet form factor and 3.6 mm fixed lens deliver clear images for general surveillance tasks.

Suitable for

• Outdoor perimeter surveillance
• Home security monitoring
• Small business entrance and parking area monitoring
• Ceiling or wall mounting in indoor public areas

Key specifications

• Video resolution: Full HD 1080P
• Sensor: CMOS
• Lens: Fixed 3.6 mm focal length
• IR night vision range: up to 30 m
• Weatherproof rating: IP67
• Operating temperature: -20°C to 55°C
• Connectivity: Wired
• Mounting: Ceiling/Wall
• Form factor: Bullet
• Color: White
• Weight: 0.5 kg
• Compatible with: LevelOne DSK-x001 4/8-Channel kits

How to use

Mount the camera on a stable ceiling or wall surface using appropriate anchors and the supplied mounting bracket, aiming the 3.6 mm lens toward the monitored area. Connect the camera via the wired interface to your DVR or compatible LevelOne surveillance kit, then configure recording settings and white balance (ATW) in the recorder’s menu. Verify IR operation by testing night-mode recording and adjust the camera angle to cover your target zone while avoiding direct exposure to strong light sources.

Recommendations

For best results, install the camera under a small roof or shield to reduce direct precipitation exposure despite its IP67 rating, and ensure the viewing area is free from obstructions. Position the camera so that IR illumination is not blocked by nearby objects to maintain clear night-time images. Use a compatible LevelOne DVR for full feature support and optimal playback fidelity.
