Cámara de vigilancia Hikvision Turbo HD Value Series DS-2CE17U0T-LF(2.8mm)

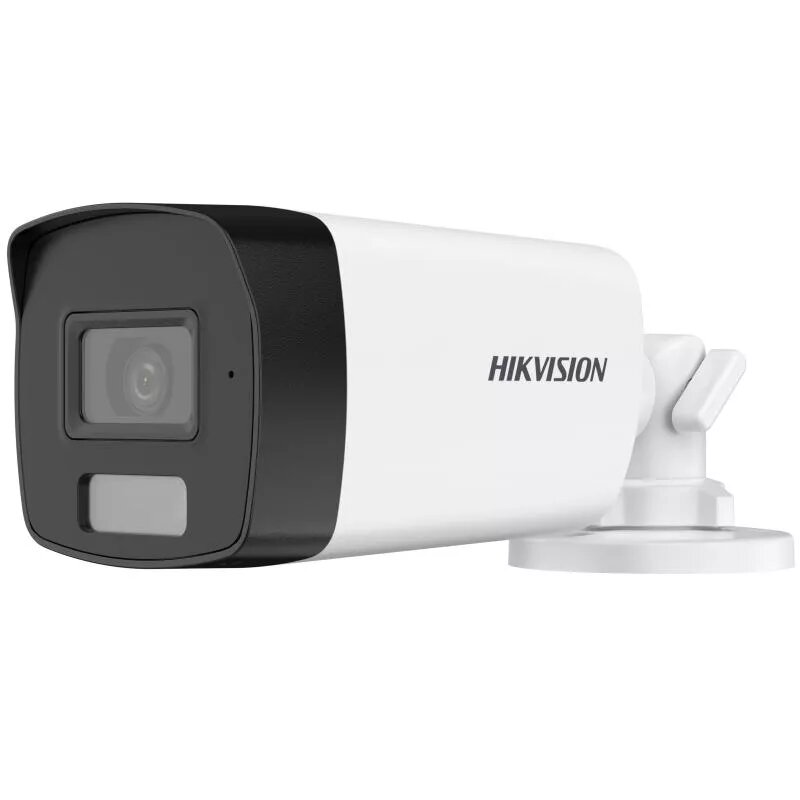

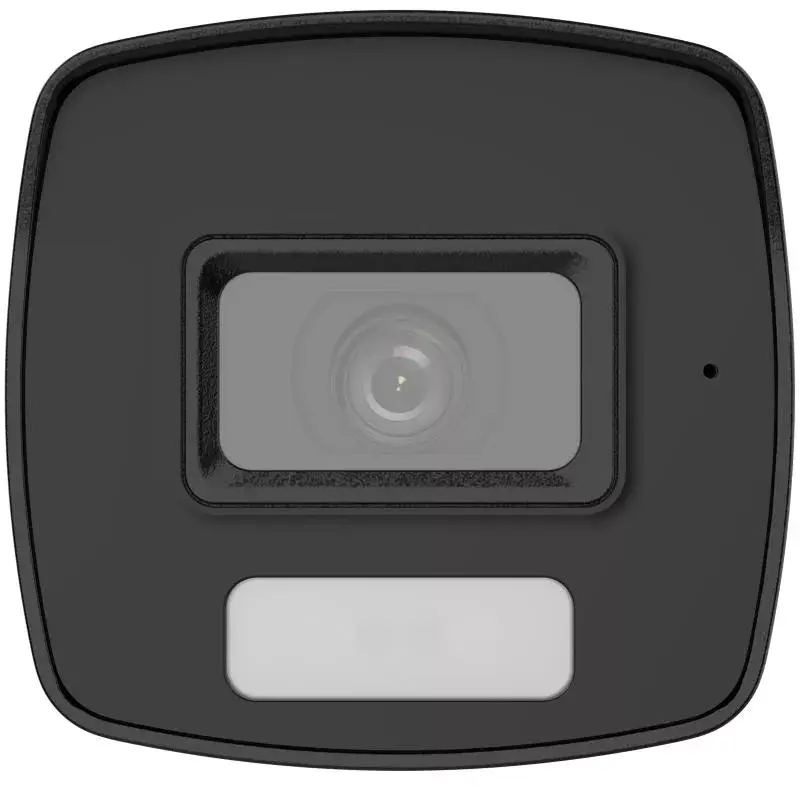

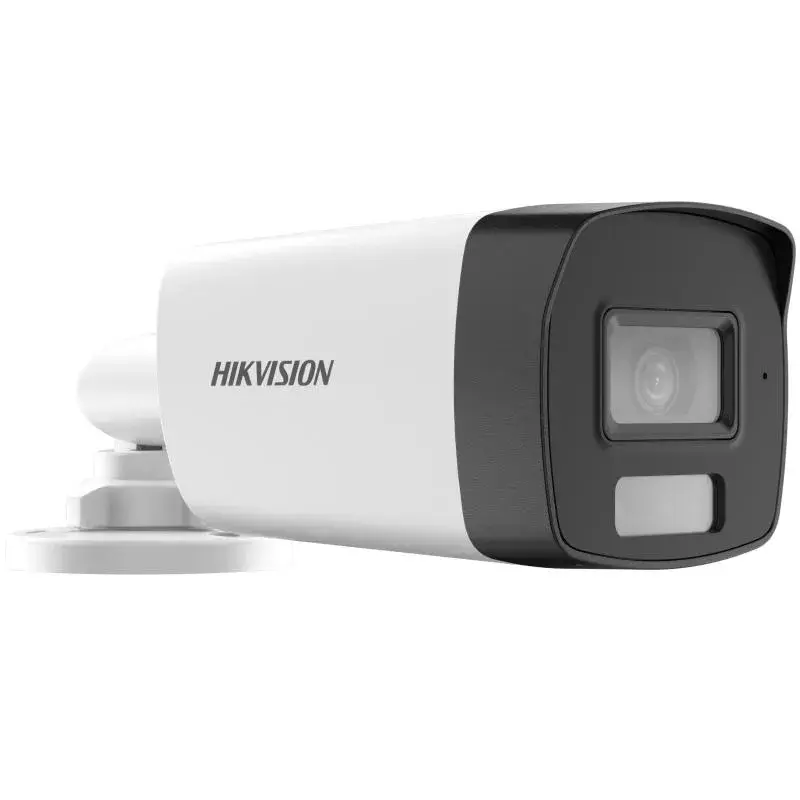

The Hikvision Turbo HD Value Series DS-2CE17U0T-LF (2.8mm) is a wired CCTV security camera designed for flexible ceiling or wall installation in both indoor and outdoor environments. It captures video at a high resolution of 3840 x 2160 pixels and records at up to 30 fps for smooth motion. The camera uses a fixed 2.8 mm lens and a CMOS image sensor to deliver wide coverage with a 108° horizontal viewing angle and 360° rotation capability, while its white bullet housing provides a discreet, weather-resistant appearance suitable for a range of locations.

Advantages

This model combines ultra-high resolution imaging with a compact bullet form factor, enabling precise detail capture over a wide field of view. Wired connectivity ensures stable video transmission and continuous power when used with compatible DVR systems. The camera’s mounting options for ceiling or wall installation make it adaptable for typical security setups, and its white, durable housing is intended for visible but unobtrusive placement both inside and outside buildings.

Suitable for

• Retail stores and point-of-sale monitoring
• Office interiors and common areas
• Building entrances, corridors and driveways
• Warehouses and indoor storage areas
• Residential perimeter and outdoor surveillance

Key specifications

• Resolution: 3840 x 2160 pixels
• Lens: fixed 2.8 mm
• Sensor type: CMOS
• Frame rate: up to 30 fps
• Horizontal viewing angle: 108°
• Rotation capability: 360°
• Mounting type: ceiling or wall
• Placement: suitable for indoor and outdoor use
• Connectivity: wired
• Color: white
• Weight: 0.34 kg

How to use

Install the camera on a ceiling or wall using appropriate anchors and brackets for the mounting surface. Connect the camera to a compatible Turbo HD DVR using standard coaxial cabling with power supplied by the DVR or an external power source as required. Aim the camera using its rotation and fixed lens to cover the desired scene, then configure recording settings and image parameters on the DVR or management software. Verify image focus and field of view during setup and adjust the mount position if needed for optimal coverage.

Recommendations

For reliable day-to-day operation, use quality coaxial cable and a stable power source; place the camera under protective covers if it is exposed to extreme weather. Position the camera at heights and angles that reduce glare and occlusion, and integrate it with a DVR that supports 4K resolution to take full advantage of the camera’s 3840 x 2160 imaging.
