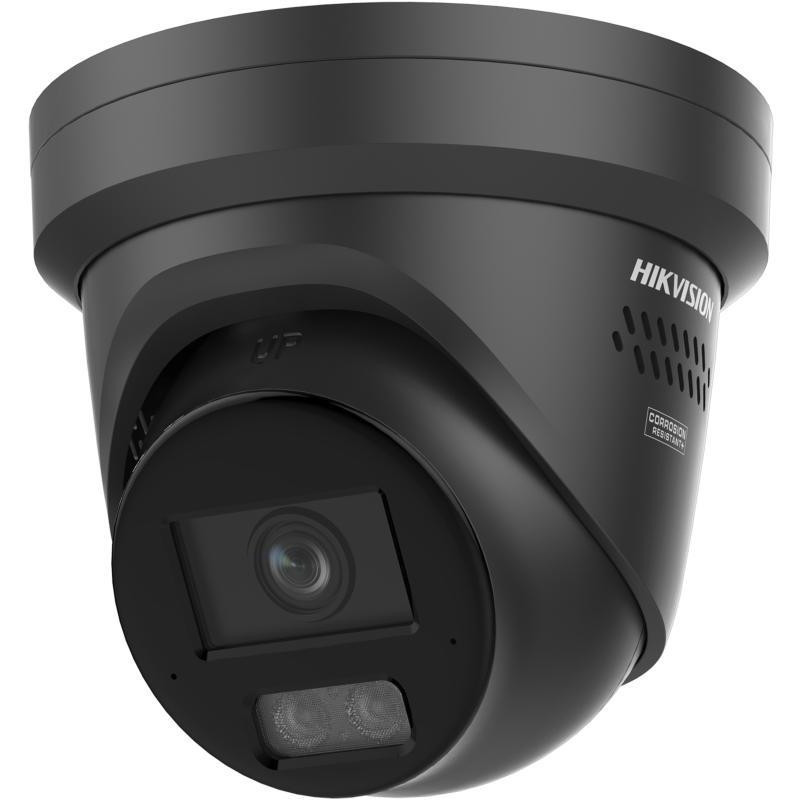

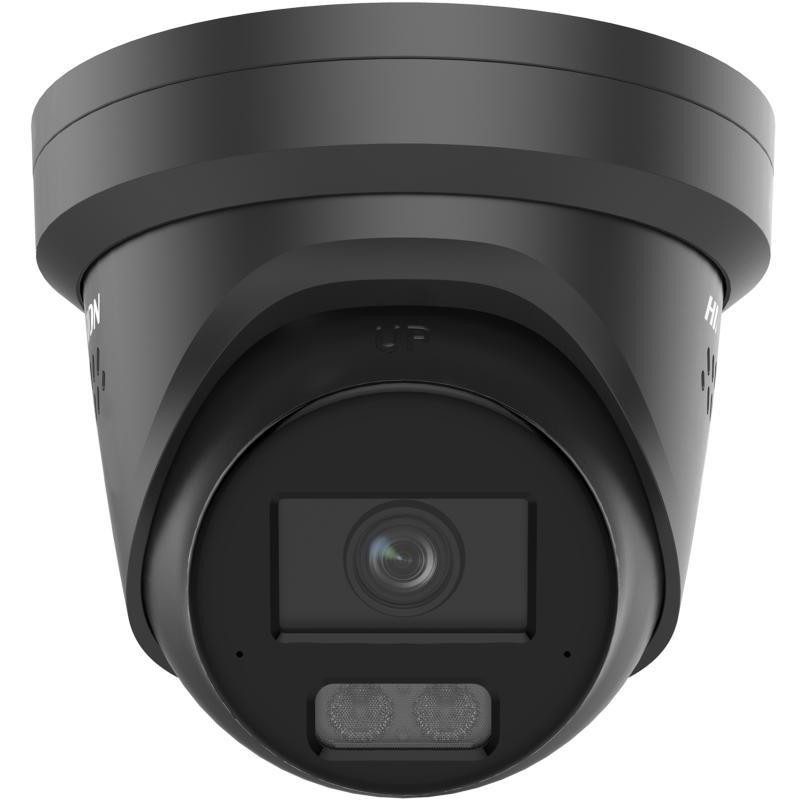

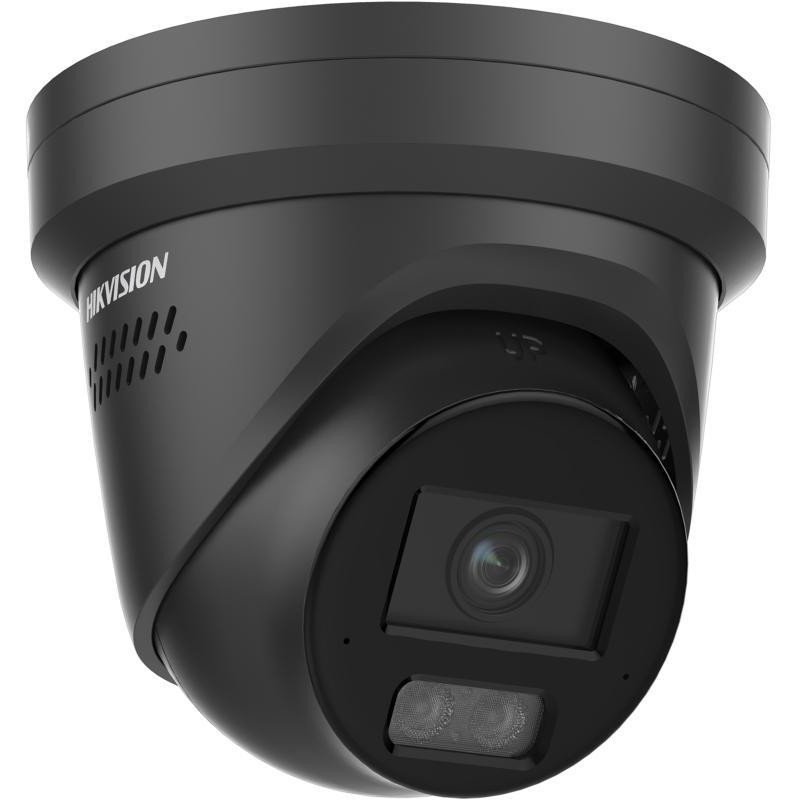

HIKVISION DS-2CD23126G3-IS2UY/SL(2.8mm)(eF) Negro Turret 12MP EasyIP 4.0 Plus (DS-2CD23126G3-IS2UY/SL(2.8)(eF)BLACK) Cámara de vigilancia

The HIKVISION DS-2CD23126G3-IS2UY/SL(2.8mm)(eF) Black Turret is a 12 MP IP security camera designed for high-detail surveillance. It features AcuSense technology for accurate human and vehicle classification, active deterrence with strobe light and audio alarm, and Powered by DarkFighter for excellent low-light performance. With a turret form factor and IP67 rating, it is suitable for outdoor use.

Key features

• 12 MP maximum resolution for ultra-high-definition images
• AcuSense technology for deep-learning-based human and vehicle classification
• Active deterrence: strobe light and audio alarm
• Powered by DarkFighter for very good low-light performance
• Built-in dual microphone array and Smart PA speaker for high-quality audio
• True WDR 130 dB for clear images in strong backlight
• IP67 water and dust resistance
• Corrosion-resistant design (NEMA 4X)
• IR illumination up to 40 m
• 2.8 mm fixed lens with horizontal FOV 94.2°, vertical FOV 51.1°, diagonal FOV 110.2°

Specifications

• Brand: HIKVISION
• Model: DS-2CD23126G3-IS2UY/SL(2.8mm)(eF) BLACK
• Product type: IP Security Camera
• Form factor: Turret
• Product colour: Black
• International Protection (IP) code: IP67
• Maximum resolution: 12 MP
• Image sensor: 1/1.8" Progressive Scan CMOS
• Maximum resolution: 4608 × 2592
• Minimum illumination: Colour: 0.0008 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
• Shutter time: 1 s to 1/100,000 s
• Day/Night: IR cut filter
• Camera adjustment: Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
• Lens type: Fixed lens, 2.8 mm
• Lens mount: M16
• Aperture type: Fixed
• Aperture: F1.6
• Depth of field: 2.8 mm: 2.9 m to ∞
• DORI: 2.8 mm: D: 117 m, O: 46 m, R: 23 m, I: 11 m
• Supplement light type: IR
• Supplement light range: Up to 40 m
• Smart Supplement Light: Yes
• IR wavelength: 850 nm
• Main stream: 50 Hz: 20 fps (4608 × 2592); 50 fps (3840 × 2160, 2688 × 1520, 1920 × 1080, 1280 × 720); 60 Hz: 20 fps (4608 × 2592); 30 fps (3840 × 2160, 2688 × 1520, 1920 × 1080, 1280 × 720)
• Sub-stream: 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360); 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
• Third stream: 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360); 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
• Video compression: Main stream: H.265/H.264/H.264+/H.265+; Sub-stream: H.265/H.264/MJPEG; Third stream: H.265/H.264
• Video bit rate: 32 Kbps to 24 Mbps
• H.264 type: Baseline Profile, Main Profile, High Profile
• H.265 type: Main Profile
• Bit rate control: CBR, VBR
• Scalable Video Coding (SVC): H.264 and H.265 encoding
• ROI: 1 fixed region for main stream
• Audio type: Mono sound
• Audio compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
• Audio bit rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps to 64 Kbps (AAC-LC)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)
• Audio sampling rate: 8 kHz/16 kHz/32 kHz/48 kHz
• Environment noise filtering: Yes
• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
• Simultaneous live view: Up to 6 channels
• API: ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
• User/Host: Up to 32 users; 3 user levels: administrator, operator, and user
• Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication
