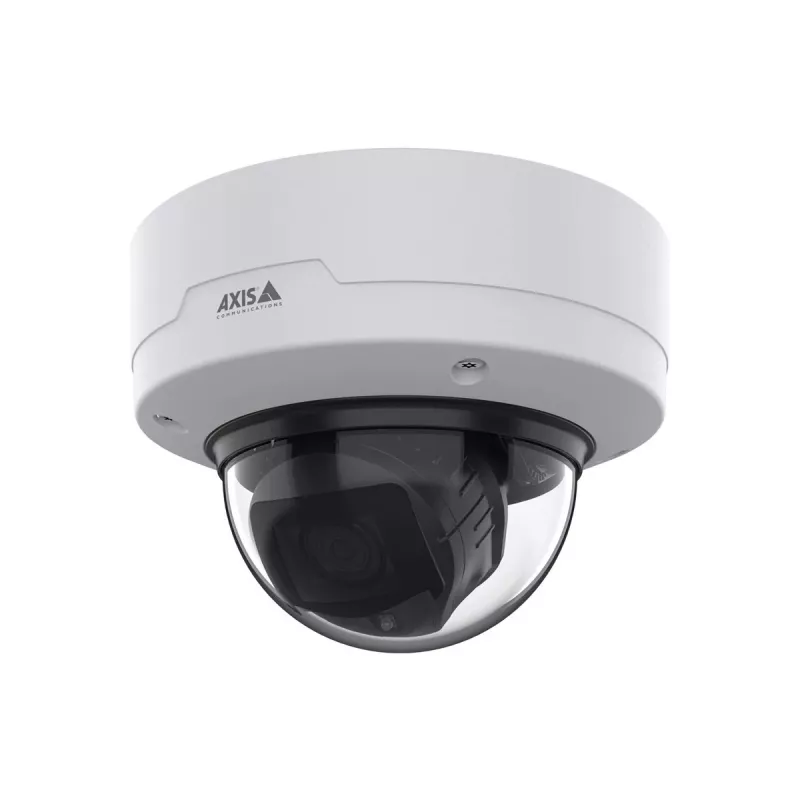

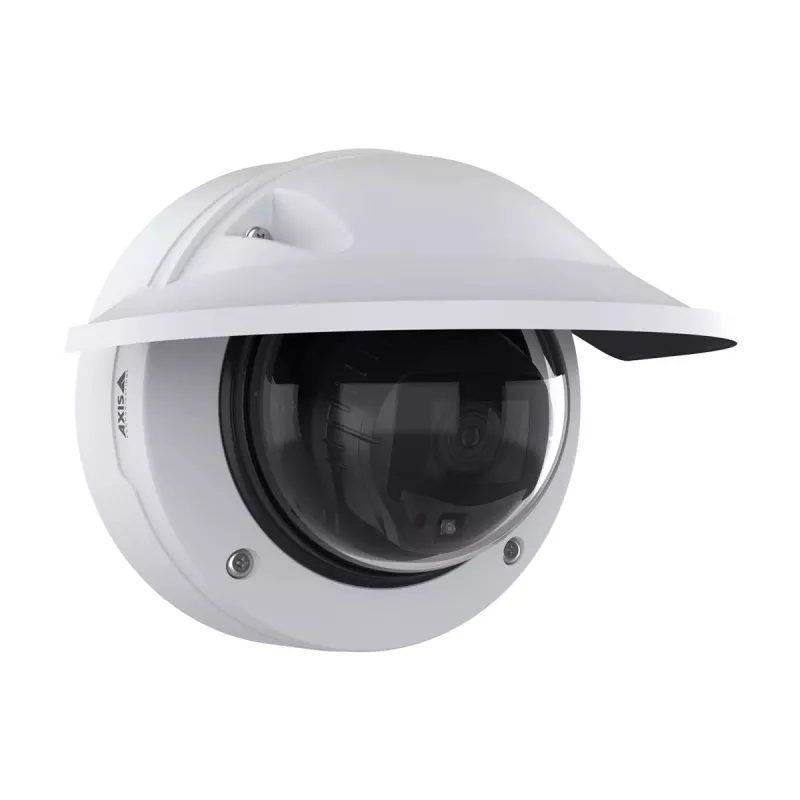

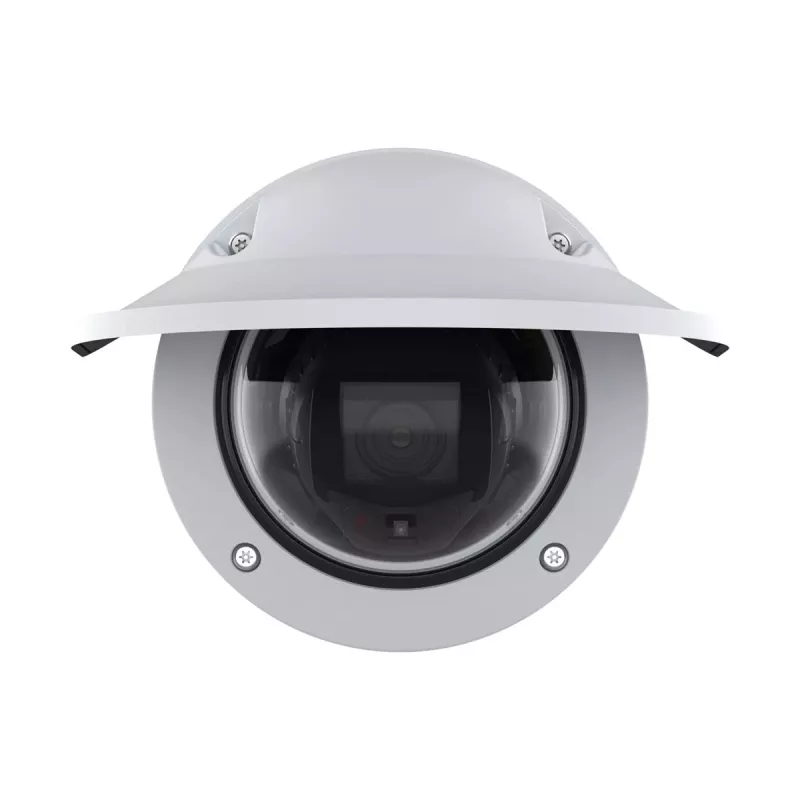

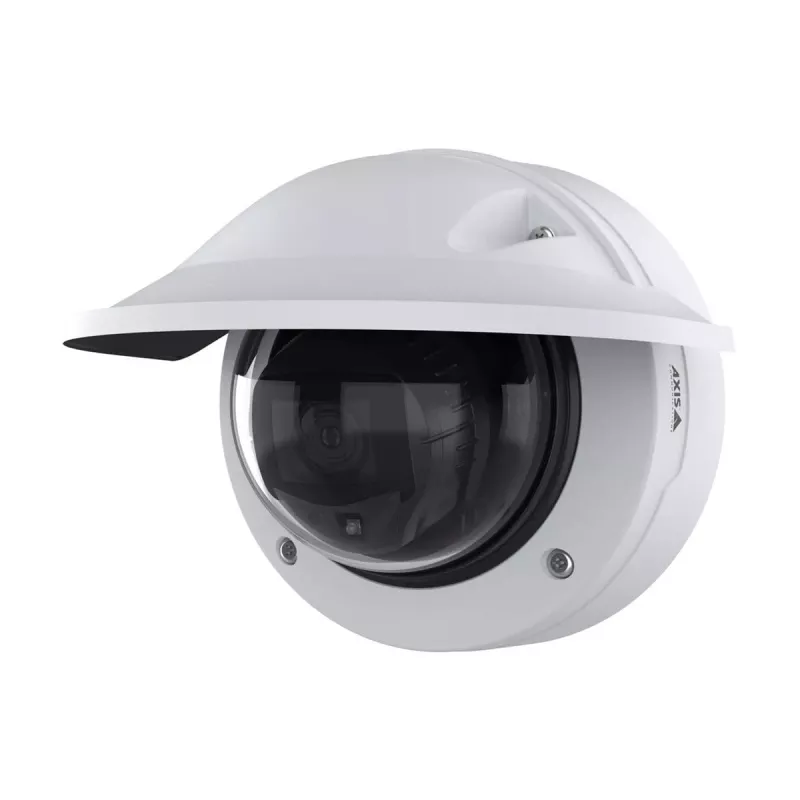

Cámara de vigilancia IP domo AXIS P3277-LVE — 2592×1944, 30 fps, techo/pared, interior y exterior, CMOS de 1/2,8 pulgadas, 104° HFOV

AXIS P3277-LVE is an AI-powered IP dome security camera for indoor and outdoor surveillance, offering 2592×1944 (5 MP) resolution at up to 30 fps. Designed for ceiling or wall mounting, it uses a 1/2.8" CMOS sensor and a 104° horizontal field of view to capture wide scenes with forensic detail. Built on ARTPEC-9 and supporting AV1, H.264 and H.265 codecs with Axis Zipstream, the camera reduces bandwidth and storage needs while delivering reliable images in low light thanks to Lightfinder 2.0, Forensic WDR and OptimizedIR. The model supports wired Ethernet connectivity and includes audio input and I/O for integrations.

Advantages

AXIS P3277-LVE combines high-resolution imaging, built-in AI analytics and robust hardware security. The integrated DLPU enables edge analytics such as object detection, classification and counting, reducing the need for external processing. Advanced low-light performance and OptimizedIR allow clear images at night or in mixed lighting, while support for AV1 and Axis Zipstream lowers transmission and storage costs. Rugged mechanical design with IP66, IK10 and NEMA 4X ratings ensures suitable operation in exposed environments, and Axis Edge Vault provides hardware-based cryptographic protection.

Suitable for

• Public areas such as plazas, transit hubs and parking facilities
• Perimeter and exterior building surveillance with ceiling or wall mount
• Retail and commercial spaces requiring high-detail forensic imaging
• Industrial sites and outdoor installations requiring weather and vandal resistance

Key specifications

• Resolution: 2592 × 1944 (5 MP) at up to 30 fps
• Image sensor: 1/2.8" CMOS
• Horizontal field of view: 104°
• Low-light sensitivity: minimum 0.03 lx; Lightfinder 2.0 and Forensic WDR
• Night vision: IR illumination with OptimizedIR (up to specified range by manufacturer)
• Video codecs: AV1, H.264, H.265 with Axis Zipstream
• Analytics: on-edge DLPU with object analytics and image health monitoring
• Connectivity: wired Ethernet LAN
• Mounting: ceiling or wall
• Environmental protection: IP66, NEMA 4X
• Impact resistance: IK10
• Operating temperature range: -40 °C to 50 °C
• Colors: black and white
• Weight: 0.85 kg

How to use

Mount the AXIS P3277-LVE on a suitable ceiling or wall surface using compatible mounts and follow the manufacturer’s installation instructions for secure fastening and cable routing. Connect the camera to a wired Ethernet network for power and data or to a PoE switch if supported. Configure basic settings through the camera web interface or management software to set resolution, frame rate and compression preferences. Enable on-edge analytics and privacy features as required, and connect an external microphone if audio monitoring is needed.

Recommendations

For optimal image quality and analytics performance, position the camera to cover the intended scene with minimal obstructions, use appropriate mounting height to match the 104° HFOV, and configure exposure and WDR settings for challenging light conditions. Regularly check physical seals and firmware updates to maintain weather protection and cybersecurity.
