Grabador de vídeo en red Axis 02537-001 gris Windows 10 IoT Core RAID 0 1 5 6 10

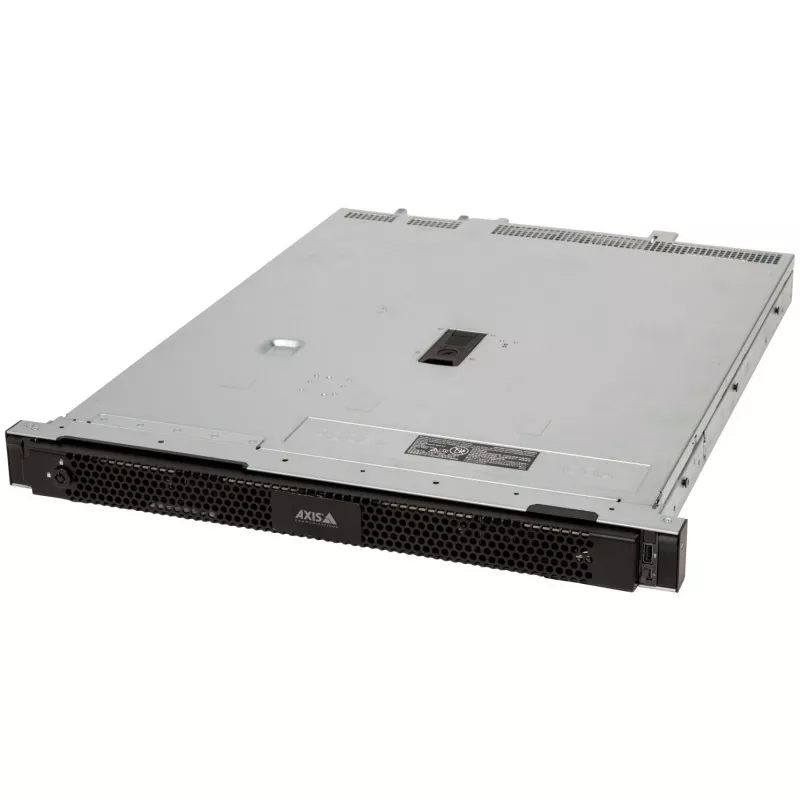

The Network Video Recorder Axis 02537-001 is a grey rack-mount recording server preloaded with Windows 10 IoT Core and AXIS Camera Station licenses. Designed for secure, scalable video recording, it supports multiple RAID configurations (0, 1, 5, 6, 10) for flexible storage and redundancy. The unit includes a Trusted Platform Module (FIPS 140-2 level 2 certified) for secure storage of cryptographic keys and certificates, and it is offered in two storage variants with preconfigured software. Power specifications include AC input 100–240 V, typical consumption 127 W and maximum consumption 158 W. Dimensions are 599 mm (W) x 482 mm (D) x 43 mm (H), weight 12.9 kg.

Advantages

This Axis recorder provides high performance hardware suitable for demanding surveillance applications while offering flexible RAID options to balance redundancy and performance. Integrated AXIS Camera Station licenses and preinstalled software reduce setup time. The FIPS 140-2 level 2 certified Trusted Platform Module enhances credential and certificate protection. Available service options include Keep Your Hard Drive, Next Business Day Onsite Support, and a 5-year warranty, and all supported products are listed together for simplified procurement.

Suitable for

• Enterprise and commercial video surveillance installations
• Environments requiring high-availability storage and redundancy
• Installations needing certified secure key and certificate storage
• Projects that benefit from bundled AXIS Camera Station licenses and preconfigured software

Key specifications

• Model: Axis 02537-001
• Operating system: Windows 10 IoT Core
• RAID support: 0, 1, 5, 6, 10
• Trusted Platform Module: FIPS 140-2 level 2 certified
• Power input: AC 100–240 V; typical 127 W; max 158 W
• Dimensions (W × D × H): 599 × 482 × 43 mm
• Weight: 12.9 kg
• Colour: Grey

How to use

Install the recorder in a standard 19-inch rack or other suitable enclosure using the provided mounting hardware. Connect power (100–240 V AC) and network interfaces to integrate with your camera network. Configure storage by selecting the desired RAID level (0, 1, 5, 6, or 10) during initial setup according to required balance of performance and redundancy. Activate the included AXIS Camera Station licenses and complete the software preconfiguration or adjust settings in the Axis management interface as needed.

Recommendations

For reliable long-term recording, choose a RAID level that matches your redundancy needs (RAID 5 or 6 for fault tolerance) and enable secure key storage via the Trusted Platform Module. Keep firmware and AXIS Camera Station software up to date and consider service options such as Next Business Day Onsite Support and a Keep Your Hard Drive plan for faster recovery and maintenance.
