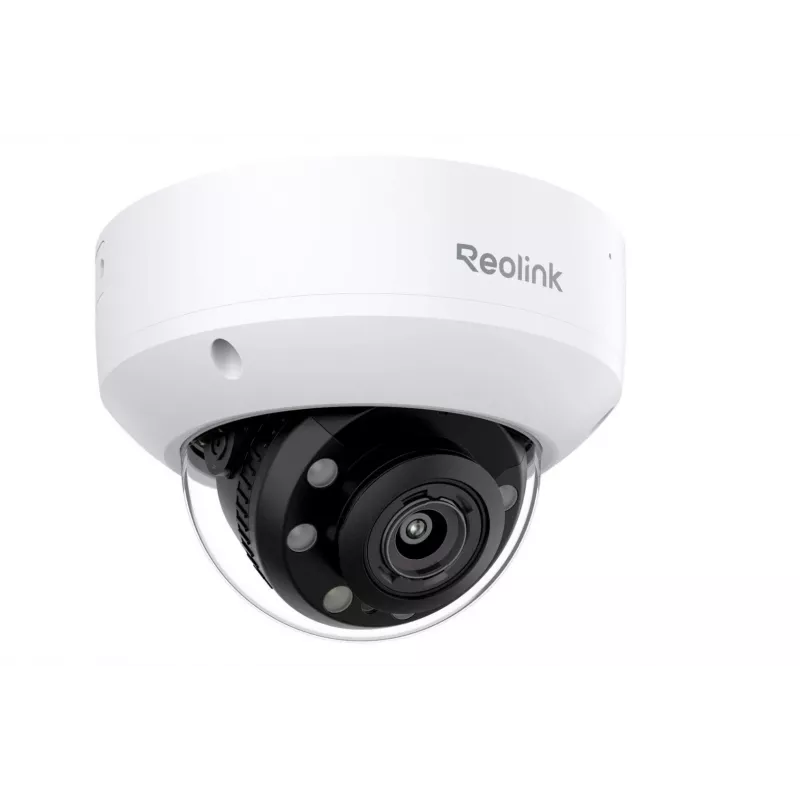

Cámara de vigilancia IP domo Reolink RP-PCV8MZ 4K UHD 3840×2160, zoom óptico 5x, distancia focal fija 2,7 mm, 108° H, con cable, montaje en pared, interior/exterior, blanca

Reolink RP-PCV8MZ is a dome IP security camera offering 4K UHD (3840×2160) resolution and 5x optical zoom for detailed monitoring of indoor and outdoor areas. The camera uses a 1/2.8" CMOS sensor with a 2.7 mm fixed focal length and a wide horizontal field of view of 108°. Designed for wired Ethernet networks and wall mounting, the unit records at up to 25 fps and comes in a white, weatherproof dome housing suitable for perimeter, entrance and property surveillance where high-resolution imaging and reliable connectivity are required.

Advantages

The RP-PCV8MZ provides ultra-high definition video that captures finer details compared with lower-resolution cameras, while the 5x optical zoom preserves image quality during close-ups. Wired Ethernet connectivity ensures stable network performance and continuous power over PoE when supported by the installation. The camera supports in/out alarm ports for integration with external sensors and alert devices, and offers flexible storage options such as microSD and NVR or encrypted FTP backups. Its weatherproof dome design supports both indoor and outdoor use and reduces maintenance needs in exposed installations.

Suitable for

• Perimeter and fence line monitoring
• Building entrances and lobbies
• Commercial sites and parking areas
• Residential property and driveway surveillance
• Locations requiring detailed facial or license plate capture at a distance

Key specifications

• Image resolution: 4K UHD 3840×2160
• Sensor type: 1/2.8" CMOS
• Lens: 2.7 mm fixed focal length with 5x optical zoom
• Horizontal field of view: 108°; vertical: 56.2°; diagonal: 133°
• Maximum frame rate: up to 25 fps
• Night vision: infrared illumination for low-light recording (specification: up to 30 m IR)
• Connectivity: wired Ethernet (PoE compatible where supported)
• Alarm interfaces: input/output ports for external sensors and sirens
• Mounting: wall mount, dome form factor
• Environmental protection: weatherproof rating suitable for outdoor use
• Colour: white
• Weight: approximately 0.845 kg

How to use

Mount the camera on a suitable wall surface using the included bracket and secure all fasteners according to installation instructions. Connect the camera to your network via Ethernet; when using a PoE switch or injector the camera will receive power and data through a single cable. Configure video settings, resolution and frame rate in the Reolink software or compatible NVR, and set up storage preferences such as microSD, NVR storage or FTP backup. Use the in/out alarm ports to connect sensors or output devices if an integrated alarm linkage is required. Test the field of view and zoom levels to ensure critical areas are covered before finalising the installation.

Recommendations

Place the camera at a height and angle that minimises obstructions and glare, and use the optical zoom to frame distant targets while maintaining full resolution. For reliable network performance and power delivery, use PoE-capable switches or injectors and protect connections from moisture in outdoor installations. Regularly verify firmware updates and backup settings to preserve functionality and security.
