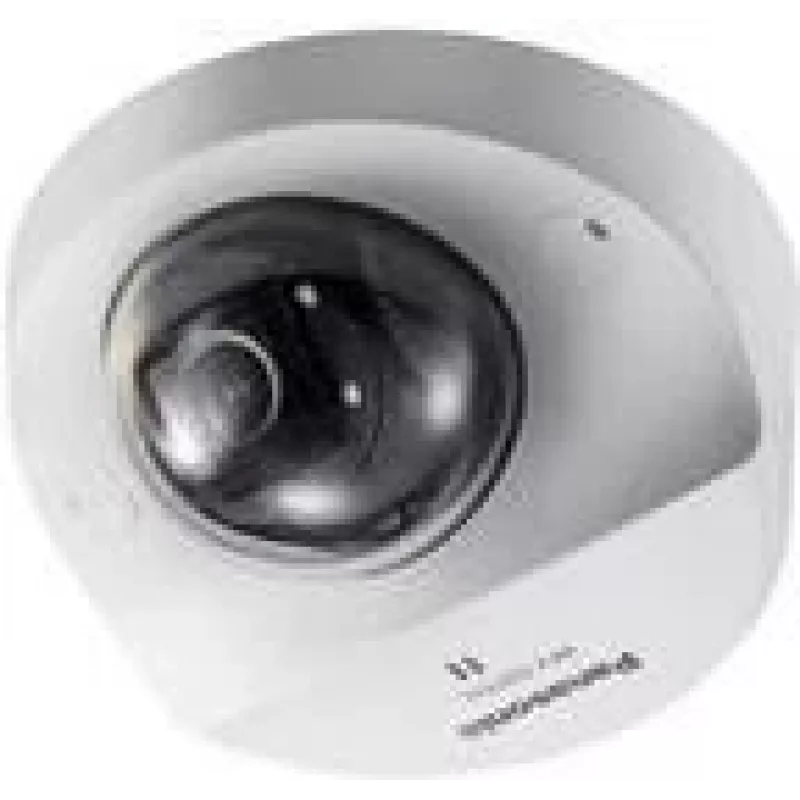

Cámara de vigilancia IP Panasonic WV-S3111L interior 1280 x 960 domo

The WV-S3111L is a compact indoor dome IP security camera with a 1280 x 960 resolution and a fixed 2.8 mm lens. Its small, simple design allows installation on ceilings or walls without affecting interior aesthetics, while a 97° horizontal viewing angle and a minimum illumination of 0.01 lx provide reliable monitoring in low-light conditions. The camera uses Panasonic iA (Intelligent Auto) to adjust exposure and motion-related settings in real time, and supports H.265 Smart Coding for reduced bandwidth and longer recordings. Built-in FIPS 140-2 standard encryption secures video streaming.

Advantages

The WV-S3111L delivers a wide dynamic range (134 dB) for balanced exposure in scenes with strong backlight, along with color night vision that maintains accurate color rendition in low light. Intelligent Auto minimizes motion blur and distortion automatically. H.265 Smart Coding reduces storage and bandwidth needs by up to 95% compared with conventional H.264, and the compact dome form factor supports discreet indoor placement.

Suitable for

• Indoor ceiling or wall surveillance in offices and retail spaces
• Low-light monitoring where color rendition is important
• Locations requiring wired, high-efficiency IP recording

Key specifications

• Resolution: 1280 x 960
• Lens: fixed 2.8 mm
• Horizontal viewing angle: 97°
• Minimum illumination: 0.01 lx (color night vision)
• Dynamic range: 134 dB
• Frame rate: up to 60 fps
• Connectivity: wired Ethernet (no Wi‑Fi)
• Mounting: ceiling or wall
• Colors: black, white
• Encryption: FIPS 140-2 module for secure streaming

How to use

Install the WV-S3111L on a ceiling or wall using compatible mounts and connect it to your network via wired Ethernet. Configure basic settings through the camera’s web interface or the Panasonic management software, enabling Intelligent Auto to let the camera adjust exposure and motion settings automatically. Set recording parameters and H.265 Smart Coding to optimize storage and bandwidth, and enable encryption for secure video transmission.

Recommendations

For best results in challenging lighting, position the camera to minimize direct sunlight in the field of view and enable the wide dynamic range feature. Use wired Ethernet for stable connectivity and configure H.265 Smart Coding together with appropriate recording schedules to maximize storage efficiency.
