Cámara PTZ Prestigio VCS 4K PVCCU8N001 — 4K 8,5 MP, HDMI 2.0, USB 3.0, RJ45 (sin micrófono)

Prestigio VCS 4K PVCCU8N001 is a PTZ web camera with an 8.51 MP 1/2.5" CMOS sensor that captures video up to 3840 x 2160 at 60 fps. The camera provides 12x optical zoom and 16x digital zoom with a focus range of 4.4 mm to 52.8 mm and a horizontal viewing angle from 71° down to 8.2°. It supports flexible pan and tilt control (±170° horizontal, ±30° vertical) and multiple video formats including H.264, M-JPEG and YUY2. Connectivity options include HDMI 2.0, USB 3.0, 3G-SDI and RJ-45 network port; audio input is available via a 3.5 mm minijack. The unit does not include a built-in microphone and is supplied with remote control, power supply, USB cable, quick start guide, warranty card and a peeping cover.

Advantages

The camera delivers true 4K resolution with a high-resolution 8.51 MP sensor and supports up to 60 fps for smooth motion capture. Motorized PTZ with a wide rotation range and strong optical zoom enables precise framing from a distance. Multiple output interfaces (HDMI 2.0, USB 3.0, RJ-45, 3G-SDI) provide flexible connectivity for conference rooms, lecture capture and live streaming. Image-enhancement features such as 2D/3D DNR and horizontal/vertical flip improve image clarity in varying lighting conditions.

Suitable for

• Conference rooms and corporate meetings
• Lecture capture and classrooms
• Remote interviews and webinars
• Live streaming and broadcast contribution

Key specifications

• Sensor: 1/2.5" CMOS, 8.51 MP
• Maximum resolution: 3840 × 2160 at up to 60 fps
• Optical zoom: 12×; digital zoom: 16×; focus range: 4.4–52.8 mm
• Horizontal viewing angle: 71°–8.2°; vertical viewing angle: 42.7°–4.5°
• Pan/tilt range: ±170° horizontal, ±30° vertical
• Video codecs/formats: H.264, M-JPEG, YUY2

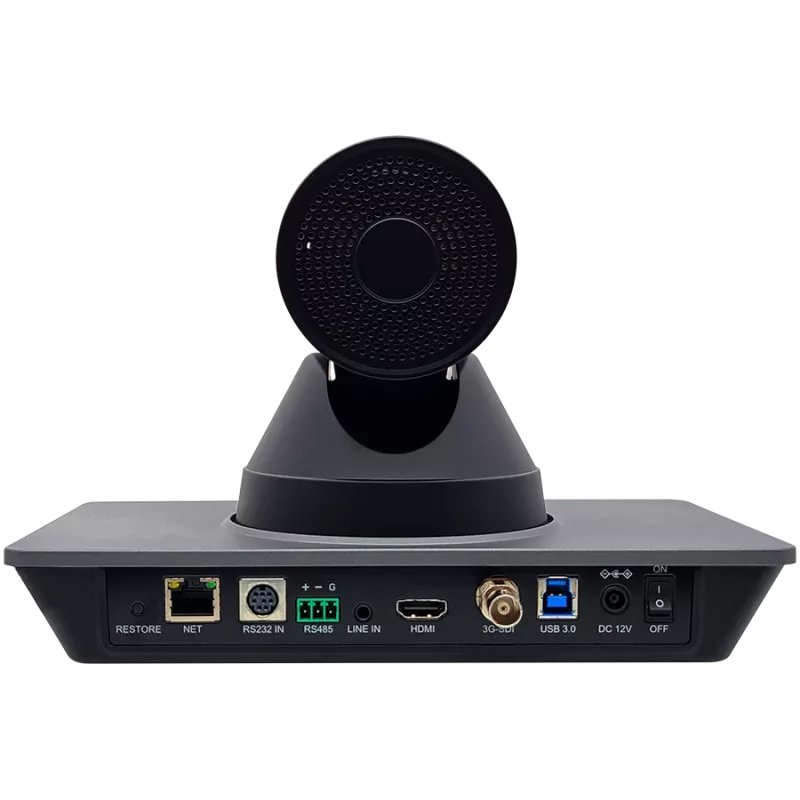

• Interfaces: HDMI 2.0 (Type A), USB 3.0 (Type A), 3G-SDI, RJ-45
• Audio input: 3.5 mm minijack (no built-in microphone)
• Power input: DC IN 12 V; maximum power consumption: 12 W
• Dimensions (W×H×D): 166.35 × 131.8 × 238 mm; weight: 1.39 kg
• External colour: Gray
• Included accessories: remote control, power supply, USB cable, quick start guide, warranty card, peeping cover
• Warranty: 12 months (validated by serial number)

How to use

Connect the camera to your system using HDMI 2.0 for direct 4K video output or USB 3.0 for computer connection. For network operation, use the RJ-45 port; RS-232 and RS-485 serial ports support external control systems. Mount the camera in the desired position, power it from a 12 V DC source and use the supplied remote control or a compatible control protocol to pan, tilt and zoom. Select the preferred video format (H.264, M-JPEG or YUY2) in the host application and configure frame rate and resolution according to your streaming or recording requirements.

Recommendations

For best results, place the camera on a stable surface or fixed mount at a suitable height for the room, allow a short warm-up period for the sensor, and choose HDMI 2.0 or a wired USB 3.0 connection when 4K/60 fps output is required. Use the optical zoom to preserve image quality rather than relying on digital zoom. Since the device lacks a microphone, add an external microphone or use room audio systems when clear audio capture is needed.
