Cámara termográfica Uni-T UTi32

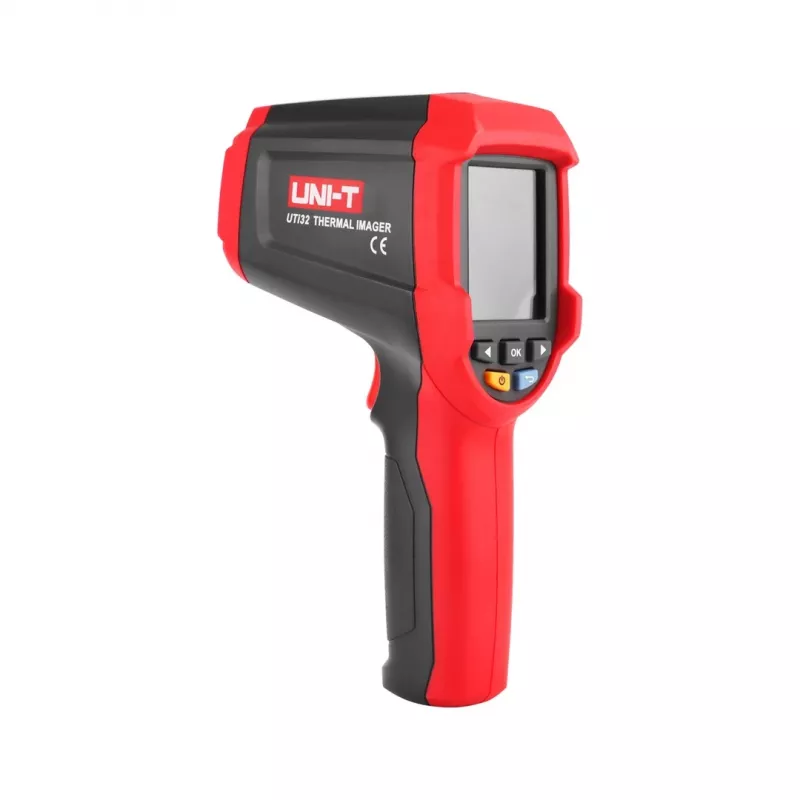

The Uni-T UTi32 is a professional handheld thermal imaging camera designed for electrical inspection, building diagnostics, and preventive maintenance. With a high-resolution 384x288 infrared sensor and a wide temperature range from -20°C to 550°C, it delivers precise thermal measurements for a variety of applications. The 3.5-inch IPS TFT display provides clear image viewing, while multiple image modes (Thermal, Visual, Fusion, PIP) enhance analysis capabilities. Built to withstand tough environments with IP54 rating and 2-meter drop resistance, the UTi32 is a reliable tool for professionals.

Advantages

High infrared resolution (384x288) for detailed thermal images. Wide temperature range (-20°C to 550°C) suitable for industrial and electrical use. Multiple image modes (Thermal, Visual, Fusion, PIP) for comprehensive analysis. Rugged design with IP54 rating and 2-meter drop protection. Long battery life up to 4 hours for extended fieldwork. Built-in 5MP visual camera for visible light reference. Laser pointer and LED light for target identification. USB Type-C connectivity for data transfer and charging.

Suitable for

• Electrical panel and component inspection
• Building envelope and insulation analysis
• HVAC system diagnostics
• Preventive maintenance and troubleshooting
• Fire and safety inspections

Key specifications

• Infrared Resolution: 384 x 288 pixels
• Temperature Range: -20°C to 550°C (-4°F to 1022°F)
• Thermal Sensitivity (NETD): <50mK
• Frame Rate: 25Hz
• Field of View (FOV): 56° x 42°
• Display: 3.5" IPS TFT, 640x480 pixels
• Focus Mode: Manual Focus
• Visual Camera: 5 MP
• Storage: 16GB eMMC internal
• Battery Life: Up to 4 hours
• Connectivity: USB Type-C
• IP Rating: IP54
• Drop Test: 2 meters
• Laser Pointer: Yes
• LED Light: Yes

Recommendations

The Uni-T UTi32 is an excellent choice for professionals requiring accurate thermal imaging in demanding environments. Its combination of high resolution, wide temperature range, and robust build makes it a valuable tool for electrical, building, and maintenance inspections.
