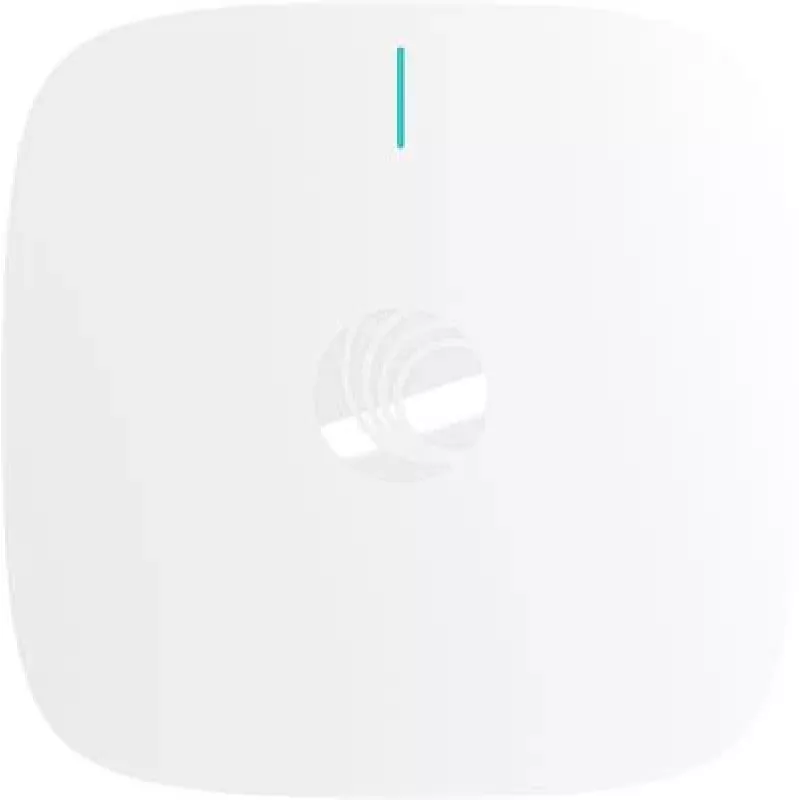

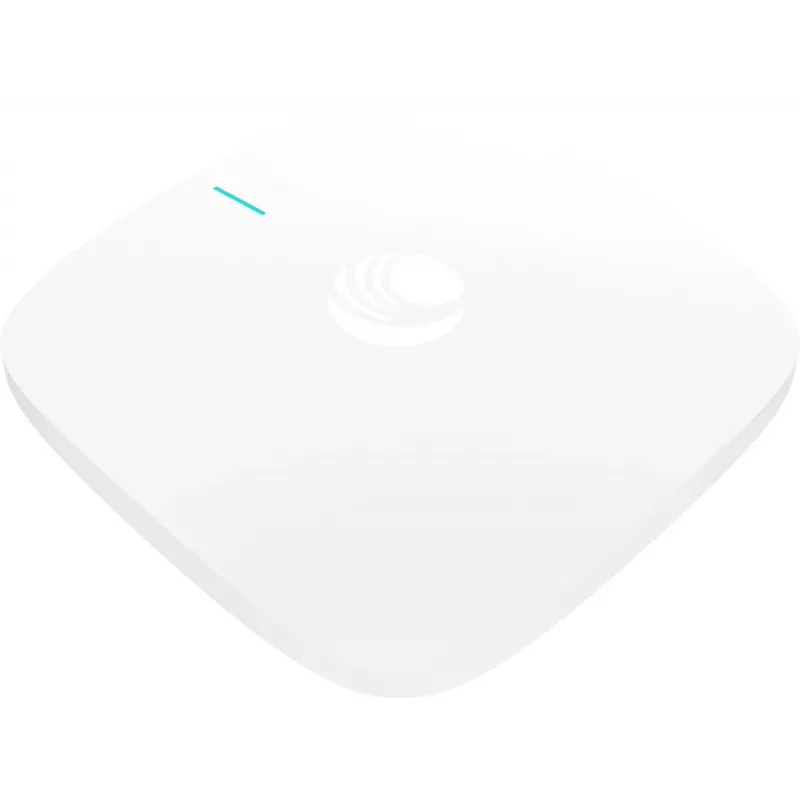

Cambium Networks X7-55X punto de acceso WiFi 7 Tri-Band interior 5GbE EU

With a staggering 9.3 Gbps aggregate throughput across three bands, the Cambium X7-55X redefines wireless performance for high-density indoor environments. Built on the Wi-Fi 7 (802.11be) standard, this access point delivers ultra-low latency and massive capacity for bandwidth-hungry applications.

Overview

The X7-55X is a tri-band access point operating simultaneously on 2.4 GHz, 5 GHz, and the newly opened 6 GHz band. Its 2x2 MIMO configuration across all bands ensures reliable connectivity for over 300 concurrent clients. A single 2.5 Gigabit Ethernet port with PoE+ support simplifies deployment, while the internal antenna system provides optimized coverage with gains up to 6 dBi.

What stands out

• Wi-Fi 7 technology with 320 MHz channel bandwidth support for multi-gigabit speeds
• Tri-band operation with dedicated 6 GHz spectrum for interference-free performance
• Advanced features like OFDMA, MU-MIMO, and BSS Coloring for efficient airtime utilization
• Robust security with WPA3 and WPA2-Enterprise protocols
• Flexible wall or ceiling mounting with included kit

Technical details

• Max aggregate throughput: 9.3 Gbps (688 Mbps on 2.4 GHz, 2882 Mbps on 5 GHz, 5765 Mbps on 6 GHz)
• Ethernet: 1x 2.5 Gigabit RJ45 with PoE+ (802.3at) power input
• Antenna: Internal, 4 dBi (2.4 GHz), 6 dBi (5 GHz), 5.8 dBi (6 GHz)
• Power consumption: 21W maximum
• Operating temperature: -30°C to 60°C (-22°F to 140°F)
• Processor: Dual-core ARM Cortex-A53 @ 1 GHz
• Management: UniFi Network Application, web-based interface
• Security: WPA3, WPA2-Enterprise, WPA-PSK, MAC address filtering

Our verdict

The Cambium X7-55X is a future-proof investment for enterprises seeking to harness the full potential of Wi-Fi 7. Its tri-band design and advanced QoS capabilities ensure seamless performance even in the most demanding wireless landscapes.
