CAME BXV 10 PLUS TOP set para puertas correderas de hasta 1000 kg (8K01MS-043)

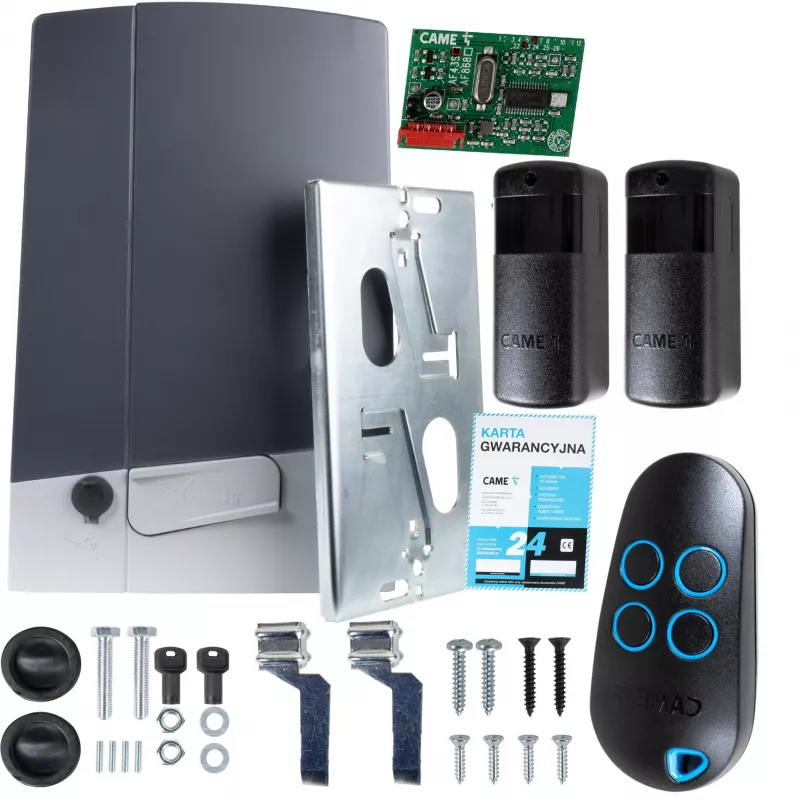

The CAME BXV 10 PLUS TOP is a complete automation kit designed for residential sliding gates weighing up to 1000 kg. This set includes a powerful 24V DC motor, integrated ZN7 control unit, and all necessary accessories for a professional installation. Ideal for intensive use, it ensures reliable and safe operation with advanced features such as obstacle detection, self-learning limits, and soft start/stop.

Advantages

This kit offers a comprehensive solution with high-quality components, easy programming via the control unit display, and robust construction. The magnetic encoder provides precise position control, while the IP44 protection rating ensures durability in various weather conditions.

Suitable for

• Residential sliding gates up to 1000 kg
• Intensive use applications
• New installations or upgrades

Key specifications

• Max Gate Weight: 1000 kg
• Motor Power Supply: 24V DC
• Control Unit Power Supply: 230V AC (50/60Hz)
• Motor Power: 240 W
• Current Draw: 8 A
• Opening Speed: 10.5 m/min
• Duty Cycle: Intensive Use
• Protection Rating: IP44
• Operating Temperature: -20°C to +55°C
• Encoder Type: Magnetic Encoder
• Control Unit Model: ZN7 (Integrated)
• Gate Type Compatibility: Sliding Gates

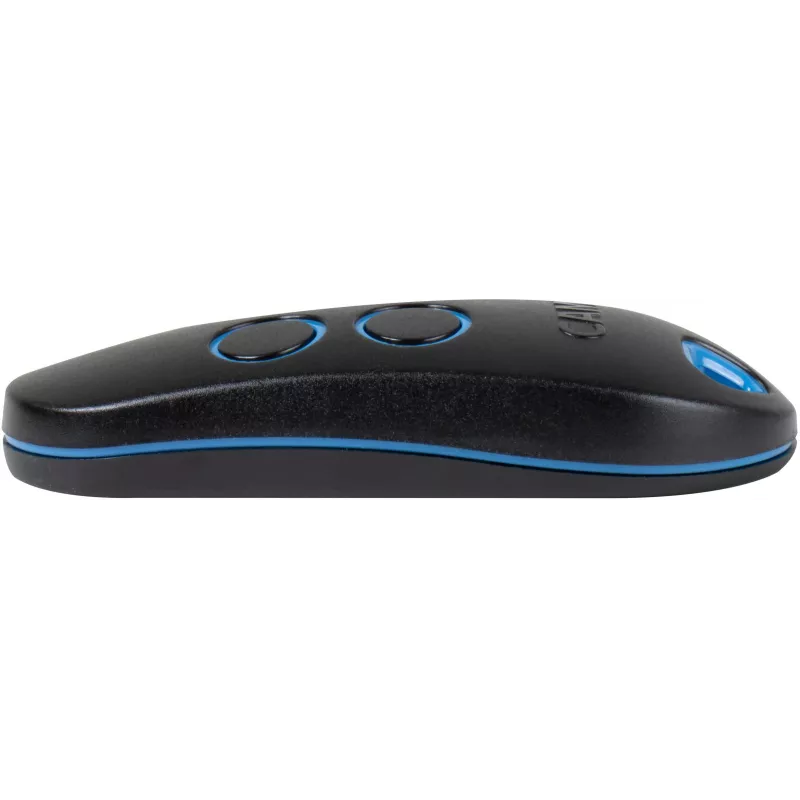

• Included Remote Controls: 2 x CAME TOPD4RBS (4-channel, Rolling Code)
• Included Photocell Type: CAME DIR10 (Pair, Surface Mount)
• Included Flashing Light: CAME KLED24 (24V LED)
• Included Antenna: CAME KIAROS
• Safety Features: Obstacle Detection, Self-Learning Limits, Soft Start/Stop
• Motor Housing Material: Die-cast Aluminium with ABS Cover
• Gear Type: Worm Gear
• Control Unit Features: Display for programming, Safety inputs

Recommendations

For optimal performance, ensure the gate is well-maintained and balanced. Professional installation is recommended to comply with safety standards.
