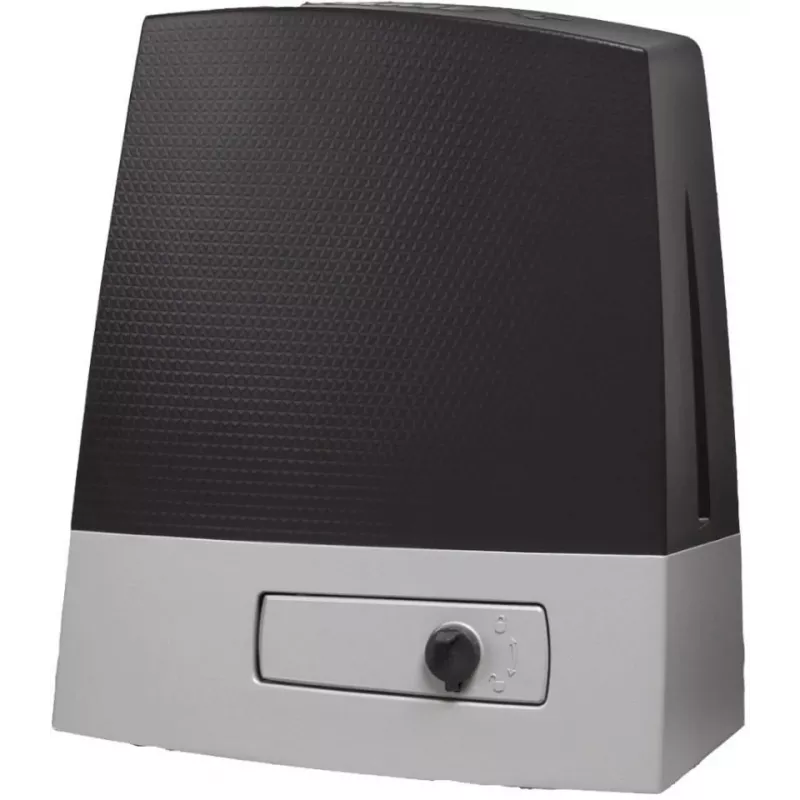

CAME BKX12AGM Motor de puerta sin escobillas para puertas correderas hasta 1200 kg

The CAME BKX12AGM is a high-performance brushless gate opener designed for heavy-duty sliding gates weighing up to 1200 kg. Featuring advanced brushless DC motor technology, this operator ensures efficient, quiet, and reliable operation with minimal maintenance. Ideal for residential and commercial applications, it offers intelligent control, soft start/stop, and obstacle detection for enhanced safety.

Advantages

Brushless motor technology provides higher efficiency, longer lifespan, and lower noise compared to traditional motors. The integrated encoder ensures precise positioning, while the key-operated manual release allows operation during power outages. With an IP54 protection rating, it withstands harsh weather conditions.

Suitable for

• Sliding gates up to 1200 kg
• Residential and commercial properties
• High-traffic entrances requiring continuous duty

Key specifications

• Max gate weight: 1200 kg
• Motor type: Brushless DC
• Power supply: 24V DC motor / 230V AC control board
• Power consumption: 250 W
• Opening speed: 12 m/min
• Max thrust: 600 N
• Protection rating: IP54
• Operating temperature: -20°C to +55°C
• Noise level: < 70 dB
• Self-locking: Yes
• Manual release: Key-operated
• Soft start/stop: Yes
• Obstacle detection: Yes

Recommendations

For optimal performance, ensure the gate is well-maintained and balanced. Professional installation is recommended to comply with safety standards.
