Campana de pared MAAN Vertical P 2 50 310 m³/h, filtro de carbón activo, carcasa de cristal, 50 cm

Wall-mounted cooker hood MAAN Vertical P 2 50 is designed for 50 cm kitchen spaces. The hood features a white glass housing, an aluminium washable grease filter and a charcoal recirculation filter option. It includes an integrated motor, rear-mounted button controls and a 5 W LED lamp. The model supports both ducted and recirculating installation and offers a maximum extraction rate of 310 m³/h with an annual energy consumption of 34 kWh.

Advantages

The hood combines a glass housing with compact 50 cm width for easy integration into smaller kitchens while providing a maximum extraction power of 310 m³/h. It has a washable aluminium grease filter for lower maintenance and a replaceable charcoal filter for recirculating operation. Rear-mounted button controls and an included motor simplify installation and operation. Energy efficiency is class C with low annual consumption.

Suitable for

• Small to medium kitchens with a 50 cm installation space
• Ducted extraction or recirculating (charcoal filter) setups
• Users who prefer simple button controls and integrated lighting
• Kitchens where a compact, glass-fronted hood is desired

Key specifications

• Maximum extraction power: 310 m³/h
• Energy efficiency class: C
• Annual energy consumption: 34 kWh
• Lighting: 5 W LED (1 bulb)
• Number of fan speeds: 3
• Noise level: 49 dB (low), 62 dB (high)
• Extraction type: Ducted or recirculating (charcoal filter option)
• Grease filter: Aluminium, washable
• Housing material and colour: White glass
• Control type and position: Buttons, rear

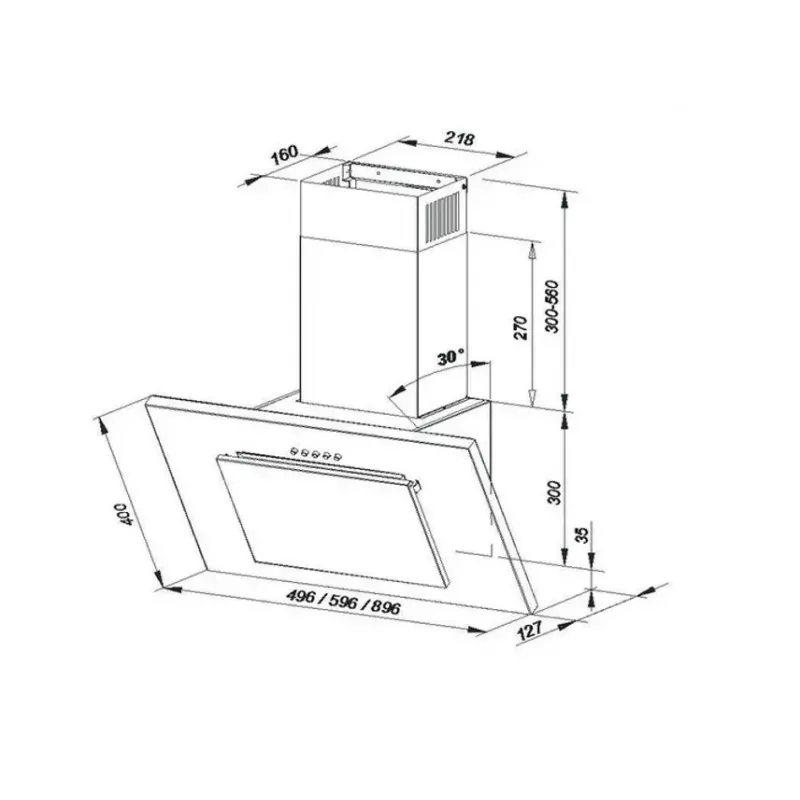

• Width: 500 mm

How to use

Install the MAAN Vertical P 2 50 according to the manufacturer’s instructions, choosing either ducted or recirculating configuration and fitting the charcoal filter if recirculation is required. Use the rear-mounted buttons to select one of the three fan speeds and switch the 5 W LED light on or off as needed. Clean the aluminium grease filter regularly by removing and washing it; replace the charcoal filter according to the recommended schedule in the user manual.

Recommendations

Do not install the cooker hood without reading the instructions. For optimal performance, run the hood on a higher speed during heavy cooking and clean or replace filters periodically to maintain extraction efficiency and reduce noise.
