Campana de pared Respekta Hera, filtro de metal/carbón, nivel de ruido: n/d

The Respekta Hera wall-mounted extractor provides targeted air extraction for kitchen installations with a maximum extraction power of 587 m³/h. Designed for both ducted and recirculating operation, this white cooker hood integrates a metal/carbon grease filter and a touch control interface. Lighting is supplied by two integrated LED bulbs (1.5 W each). The appliance is classified with fluid dynamic efficiency class A and a grease filtering efficiency class C, with an annual energy consumption of 38 kWh and a connected load of 203 W.

Advantages

The Respekta Hera combines high extraction capacity with adaptable installation options, supporting both discharge to the outside and recirculation with carbon filtration. The touch control panel offers simple operation and cleanable metal grease filters extend maintenance intervals. Integrated LED lamps provide low-consumption task lighting directly over the cooking surface. Energy-related parameters are specified to help assess running costs and efficiency.

Suitable for

• Domestic kitchens where a powerful wall-mounted hood is required
• Homes without a direct ducting path using recirculation with carbon filtration
• Cooking areas needing focused LED task lighting above the hob
• Renovation projects where a white finish integrates with kitchen cabinetry

Key specifications

• Maximum extraction rate: 587 m³/h
• Operation modes: ducted and recirculating
• Fluid dynamic efficiency class: A
• Grease filtering efficiency class: C (metal/carbon filter)
• Exhaust connection diameter: 150 mm
• Exhaust location: top
• Noise level (measured): 68 dB
• Annual energy consumption: 38 kWh
• Energy efficiency class: A
• Product colour: White

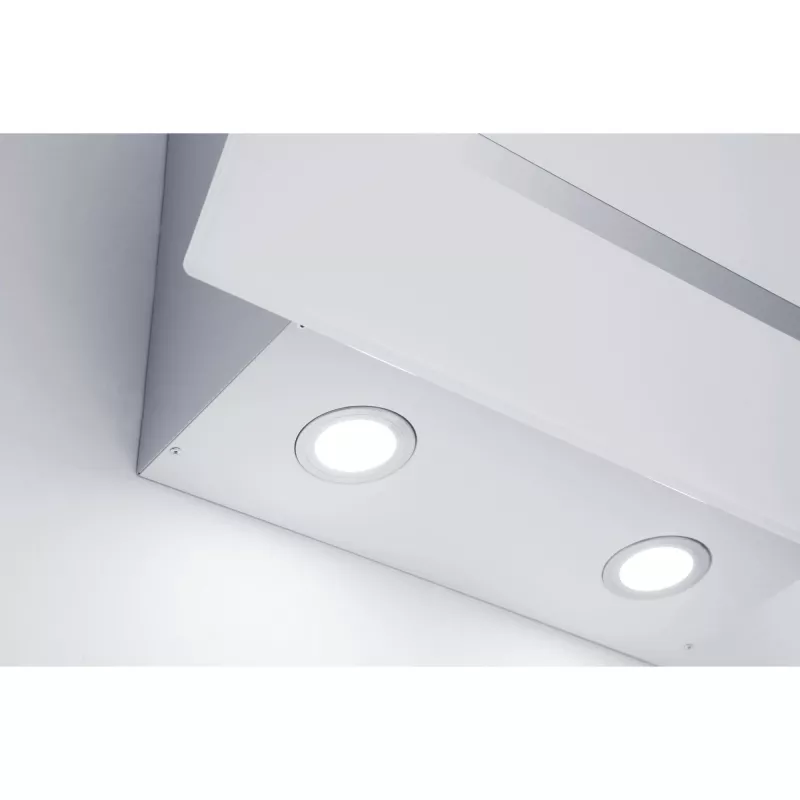

• Lighting: 2 × 1.5 W LED bulbs
• Connected load: 203 W
• Weight: 12.6 kg

How to use

Install the wall-mounted extractor at the recommended height above the hob following local building and ventilation regulations. Select ducted installation if a suitable external exhaust route is available; otherwise configure the unit for recirculation and fit the carbon filter according to manufacturer instructions. Use the touch control to select the required extraction level and switch the LED lights on or off. Clean the metal grease filter regularly and replace the carbon filter as specified to maintain extraction efficiency.

Recommendations

For optimal performance, use higher extraction levels during frying or grilling and lower settings for simmering. Regularly clean or wash the metal grease filters and inspect the carbon filter in recirculation mode; replace the carbon filter at intervals recommended by the manufacturer. Ensure the 150 mm ducting is as straight and short as possible for ducted installations to reduce noise and maintain the maximum extraction rate.
