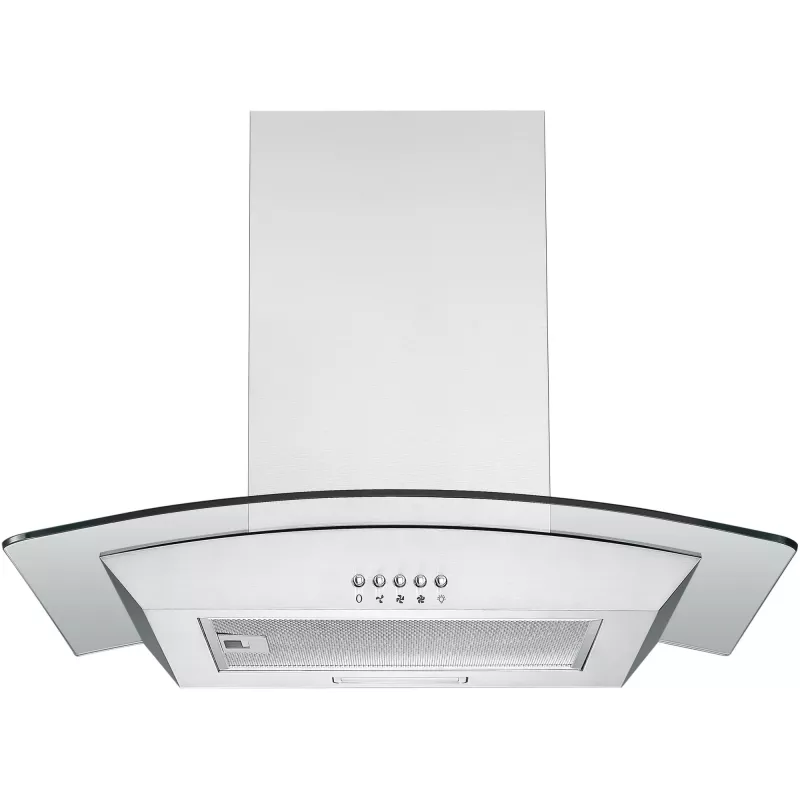

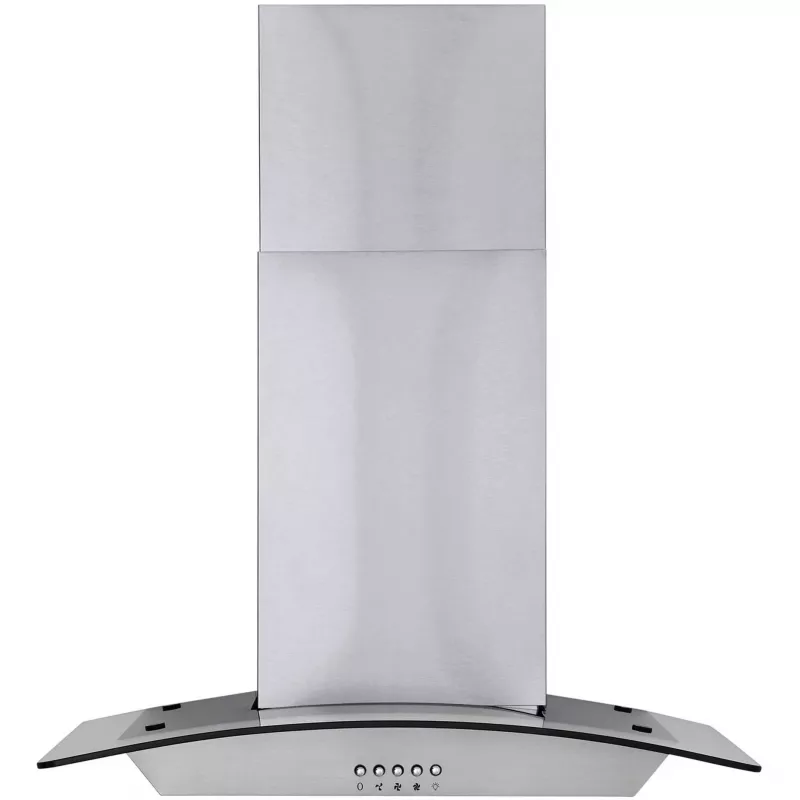

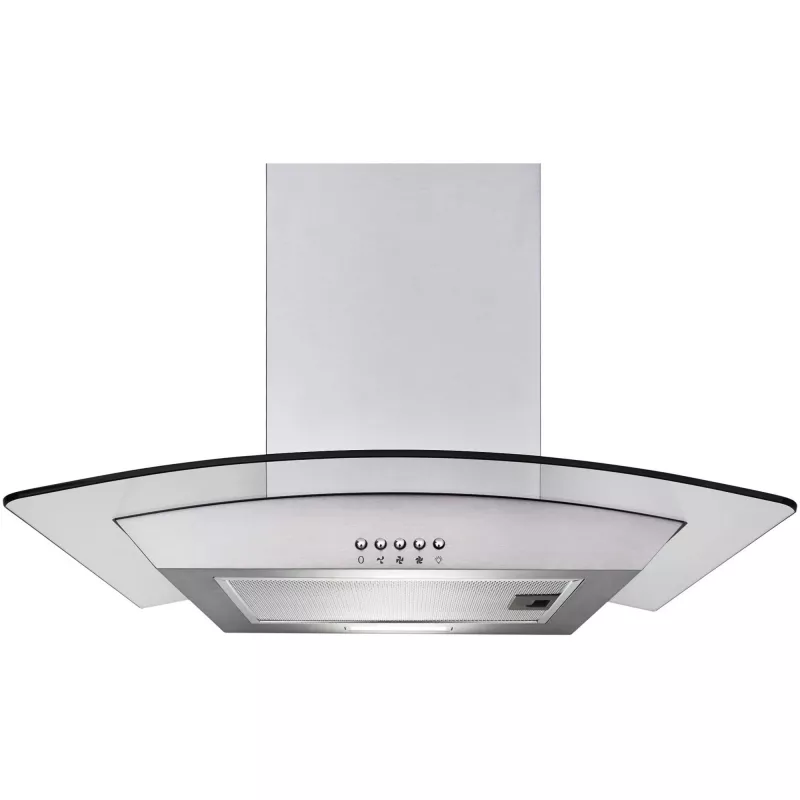

Campana de pared Respekta Nova – acero inoxidable, extracción 307 m³/h, conexión de 150 mm, control por botones

The Respekta Nova wall-mounted stainless steel hood provides an extraction capacity of up to 307 m³/h and can be used in either ducted or recirculating mode. It features a stainless steel finish, push-button controls and a single 2 W LED light. Energy-related ratings include fluid dynamic efficiency class D, lighting efficiency class A and grease filtering efficiency class D, with an annual energy consumption of 27 kWh. The unit has a top exhaust outlet with a 150 mm diameter connection and a connected load of 67 W.

Advantages

This wall-mounted cooker hood combines a compact stainless steel design with the flexibility of ducted or recirculating installation. The metal/carbon grease filter system supports basic filtration needs and the LED lamp provides illumination while keeping energy use low. Controls are simple push-button operation and the model maintains moderate noise levels around 62 dB at maximum speed.

Suitable for

• Small to medium domestic kitchens
• Homes needing a wall-mounted extraction solution
• Spaces where ducted or recirculating installation is required

Key specifications

• Model: Respekta Nova Wall-mounted Stainless steel 307 m³/h (CH0160IXB)
• Extraction capacity: 307 m³/h
• Installation type: Wall-mounted
• Extraction type: Ducted or recirculating
• Fluid dynamic efficiency class: D

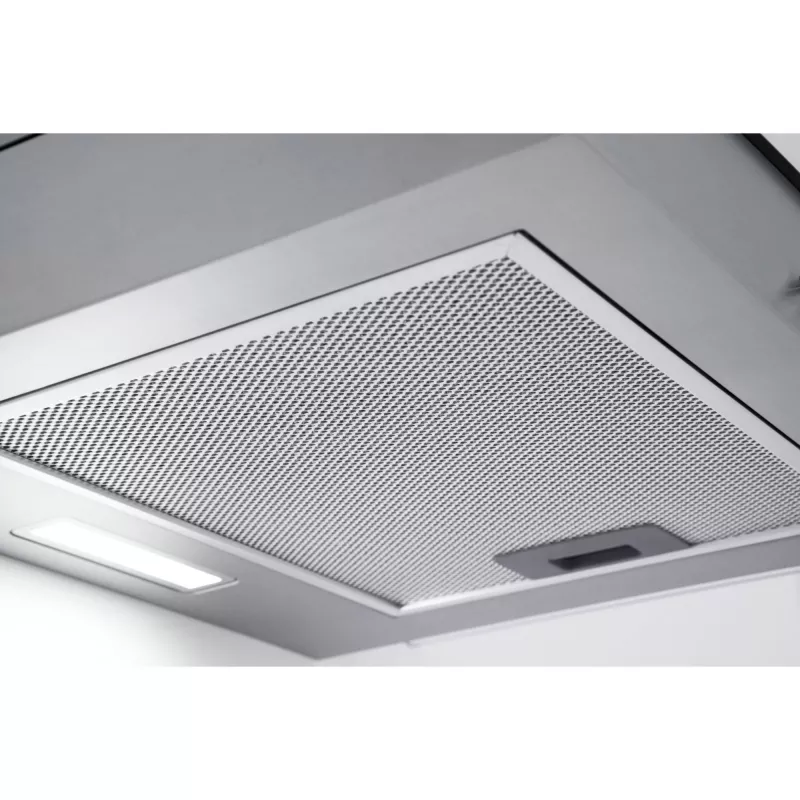

• Grease filtering efficiency class: D (metal/carbon)
• Lighting efficiency class: A; 1 × LED, 2 W
• Noise level: 62 dB
• Annual energy consumption: 27 kWh

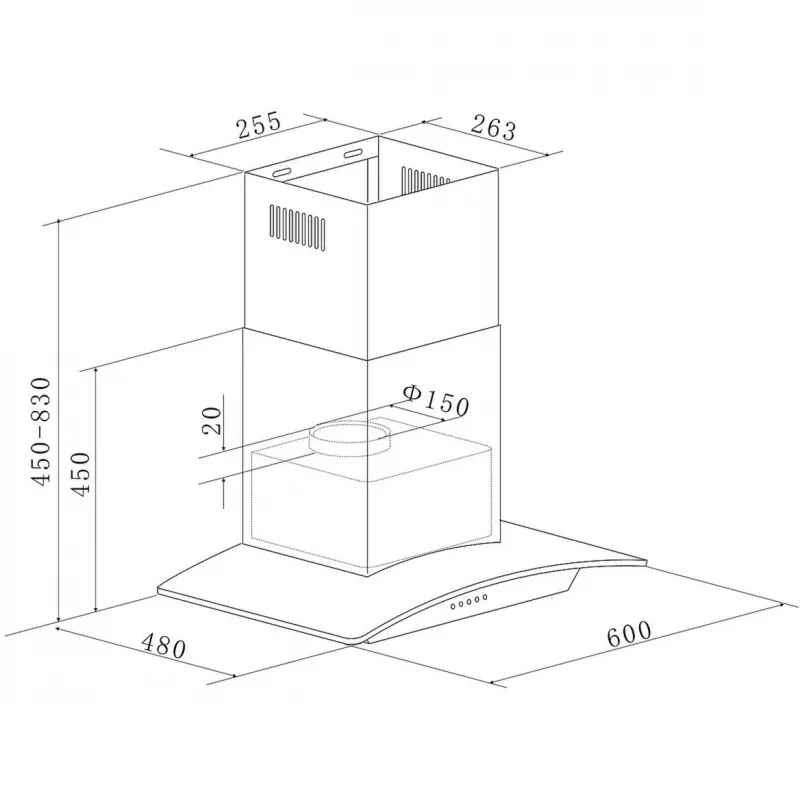

• Exhaust connection diameter: 150 mm; exhaust location: top
• Product colour: Stainless steel; connected load: 67 W; weight: 10.5 kg

How to use

Install the hood on a suitable wall location above the cooking surface following the manufacturer’s installation instructions and ensure the top exhaust is connected to a 150 mm duct when using ducted mode. For recirculating operation, fit the carbon filter as specified. Operate the hood using the push-button controls to select one of three fan speeds and switch on the LED lamp for cooking illumination. Clean or replace the grease filter according to usage and the guidelines provided by the manufacturer.

Recommendations

Use the highest extraction speed during heavy cooking and switch to lower speeds for simmering to balance performance and noise. Regularly clean the metal grease filters and replace the carbon filter when its effectiveness declines to maintain extraction efficiency.
