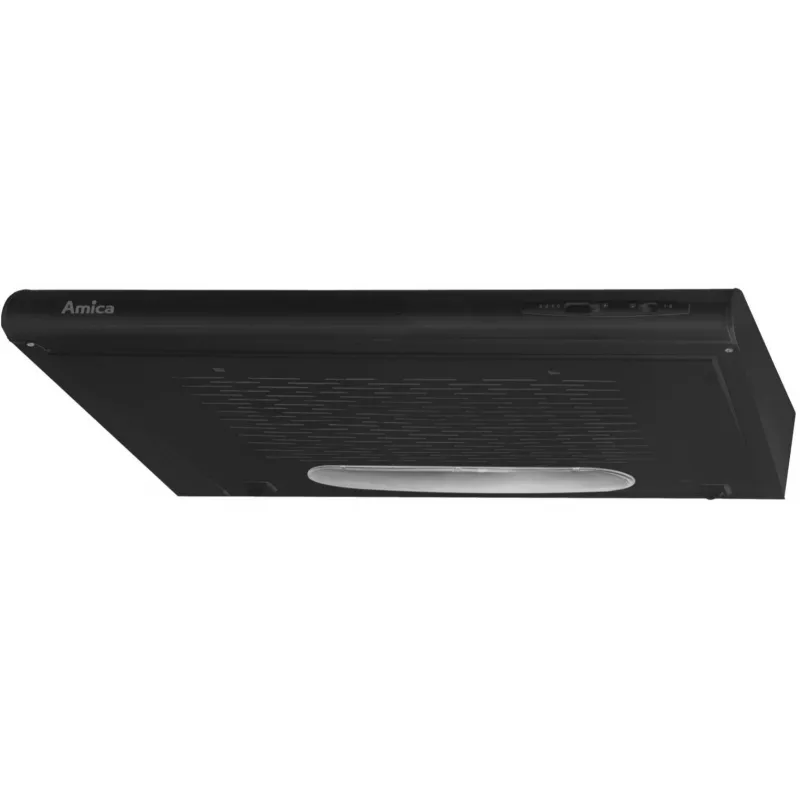

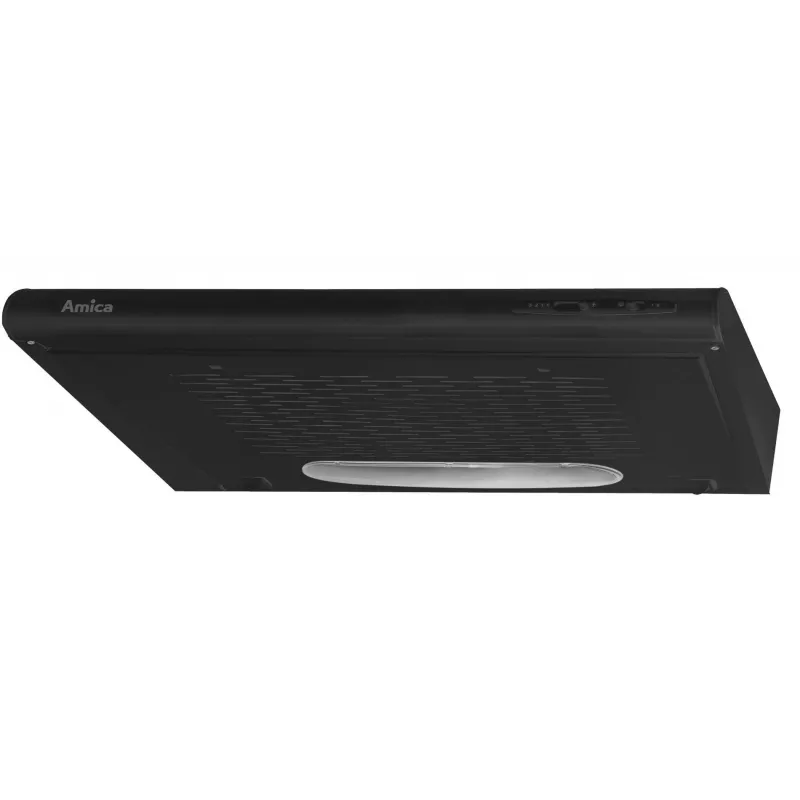

Campana extractora integrable Amica OSC5212B, filtro de aluminio, nivel de ruido: E

The Amica OSC5212B built-in cooker hood is designed for kitchens where compact dimensions and effective air extraction are required. With a maximum extraction power of 171 m³/h and recirculating extraction type, this black built-in hood removes cooking vapours and odours while fitting flush into cabinetry. The unit is controlled via a slider and uses an aluminium grease filter with two layers to capture grease particles. Integrated LED lighting provides focused illumination of the hob while keeping energy consumption low; the hood’s annual energy consumption is 41.7 kWh with an overall energy efficiency class of C.

Advantages

The Amica OSC5212B offers efficient extraction in a compact built-in format, combining a two-layer aluminium grease filter and slider control for intuitive operation. LED lighting supplies steady, long-lasting illumination with minimal power draw. The unit’s moderate connected load of 89 W and a recirculating extraction option make it suitable for installations without a dedicated external duct while maintaining acceptable fluid dynamic performance.

Suitable for

• Small to medium kitchens with built-in cabinetry
• Homes where external ducting is restricted or recirculation mode is preferred
• Cooking areas that require targeted LED illumination of the hob
• Users who prefer mechanical slider controls for straightforward operation

Key specifications

• Width: 500 mm
• Depth: 470 mm
• Maximum extraction power: 171 m³/h
• Noise level at maximum: 63 dB
• Type: built-in cooker hood
• Grease filter: aluminium, 2 layers
• Control type: slider
• Lighting: 1 × 4 W LED bulb

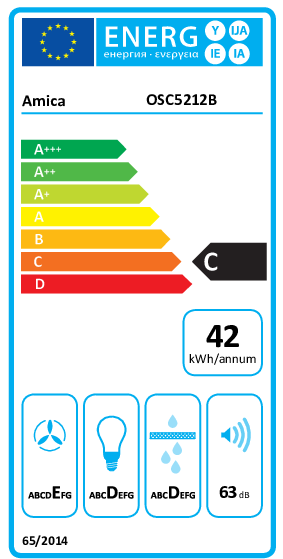

• Annual energy consumption: 41.7 kWh
• Connected load: 89 W
• Product colour: black
• Energy efficiency class: C

How to use

Install the Amica OSC5212B into a compatible cabinet opening following the manufacturer’s installation instructions and ensure the cabinet depth accommodates the 470 mm unit. Choose recirculation mode if external ducting is not available, and fit a charcoal filter according to local guidelines if required for internal air cleaning. Operate the hood using the slider to select the desired extraction level; switch on the LED light to illuminate the cooking surface. Replace or clean the aluminium grease filter regularly to maintain extraction performance and hygiene.

Recommendations

Clean the aluminium grease filter every 1–2 months depending on cooking frequency; hand wash or use a gentle dishwasher programme if the filter design allows. For optimal air removal and reduced noise, run the hood a few minutes before and after cooking. If using recirculation, replace the charcoal filter according to the charcoal filter manufacturer’s schedule to preserve odour removal efficiency.
