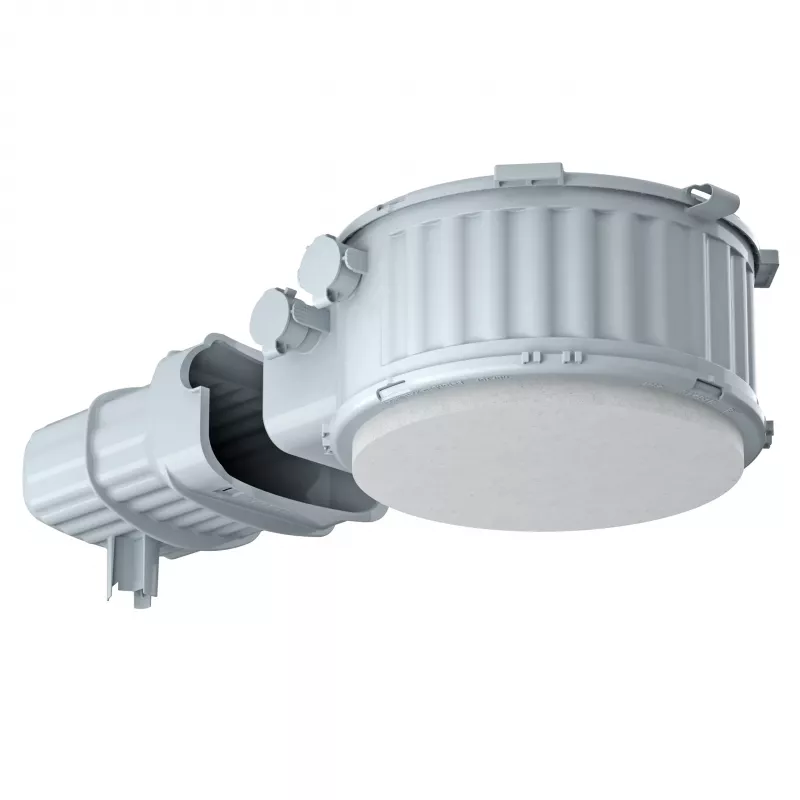

Carcasa de empotrar HaloX 180 Kaiser Elektro con túnel 190 para placas universales de fibra mineral

The Kaiser Elektro HaloX 180 flush-mounted installation housing is specifically designed for recessed luminaires in suspended ceilings and mineral fiber panels. With an integrated tunnel for cable entry and a universal mineral fiber plate, this housing ensures safe and efficient installation while providing air-tightness and a vapor barrier. Ideal for LED, low-voltage, and high-voltage luminaires, it protects against heat accumulation and supports building structure integrity.

Advantages

Tool-free installation saves time and effort. The integrated vapor barrier and air-tight design prevent moisture and air leakage, enhancing energy efficiency. Strain relief ensures secure cable management, while the heat-resistant plastic material guarantees long-lasting performance.

Suitable for

• Recessed luminaires with max. diameter 180 mm
• Suspended ceilings and mineral fiber panels
• LED, low-voltage, and high-voltage luminaires
• Ceiling thicknesses from 12.5 to 40 mm

Key specifications

• Product Type: Installation Housing for Recessed Luminaires
• Series: HaloX
• Installation Type: Flush-mounted (Ceiling)
• Ceiling Type Compatibility: Suspended ceilings, Mineral fiber panels
• Max. Luminaire Diameter: 180 mm
• Installation Depth (with tunnel): 190 mm
• Cut-out Diameter: 180 mm
• Housing Outer Diameter: 200 mm
• Material: Heat-resistant plastic, Universal mineral fiber plate
• Features: Air-tight, Vapor barrier, Strain relief
• Cable Entry: Integrated tunnel
• Luminaire Compatibility: LED, Low-voltage, High-voltage
• Protection: Against heat accumulation, for building structure
• Installation Method: Tool-free
• Ceiling Thickness Range: 12.5 - 40 mm
• Halogen Lamp Max. Wattage: 50 W
• Thermal Insulation: Yes
• Vapor Barrier Integration: Yes

Recommendations

For optimal performance, ensure the cut-out diameter matches the luminaire and that the ceiling thickness is within the specified range. This housing is not suitable for outdoor use.
