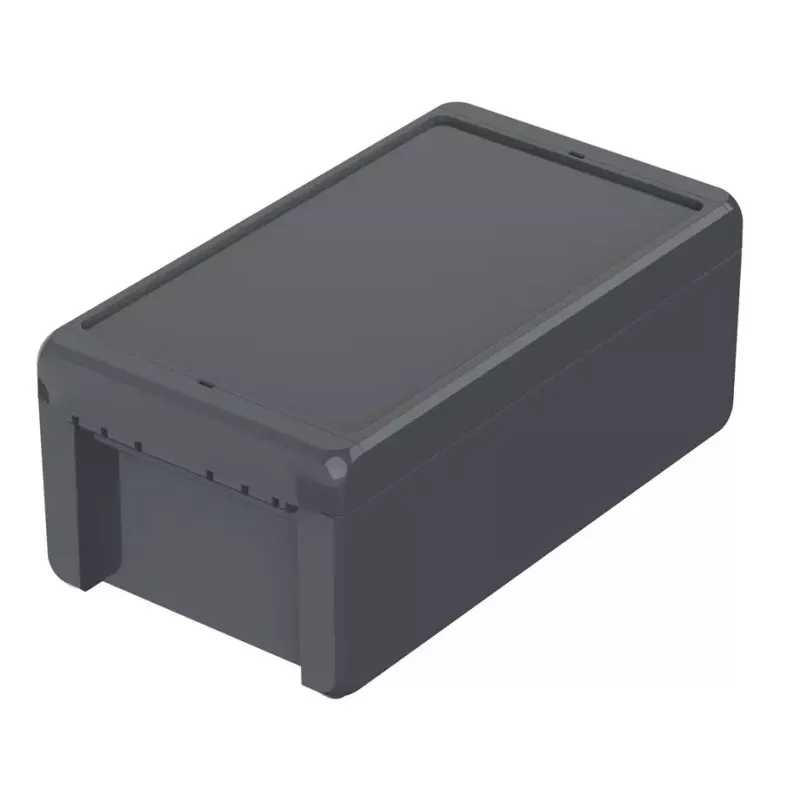

Carcasa de pared BOPLA Euromas II, policarbonato, gris grafito RAL 7024, 125 x 231 x 90 mm, IP65, IK08 96015234

Wall-mount enclosure made of polycarbonate in graphite grey (RAL 7024) with external dimensions 125 x 231 x 90 mm. Its IP65 protection class and IK08 impact resistance make it suitable for demanding industrial environments.

Advantages

Polycarbonate body offers high impact strength and UL 94 V-0 flammability rating. The enclosure includes a polyurethane gasket for reliable sealing and stainless steel lid screws for corrosion resistance. Internal mounting bosses allow installation of DIN rails or mounting plates.

Suitable for

• Industrial control systems
• Outdoor electrical installations
• Harsh environments requiring dust and water protection

Key specifications

• Material: Polycarbonate
• Colour: Graphite grey (RAL 7024)
• External dimensions: 125 x 231 x 90 mm
• Protection class: IP65
• Impact resistance: IK08
• Flammability rating: UL 94 V-0
• Operating temperature range: -40 to +80 °C
• Gasket material: Polyurethane
• Lid screw material: Stainless steel (V2A)
• Series: Euromas II
• Lid type: Opaque
• Mounting type: Wall mounting

Recommendations

For reliable protection of electronics in industrial and outdoor settings, this enclosure offers a robust solution with certified ingress protection and impact resistance.
