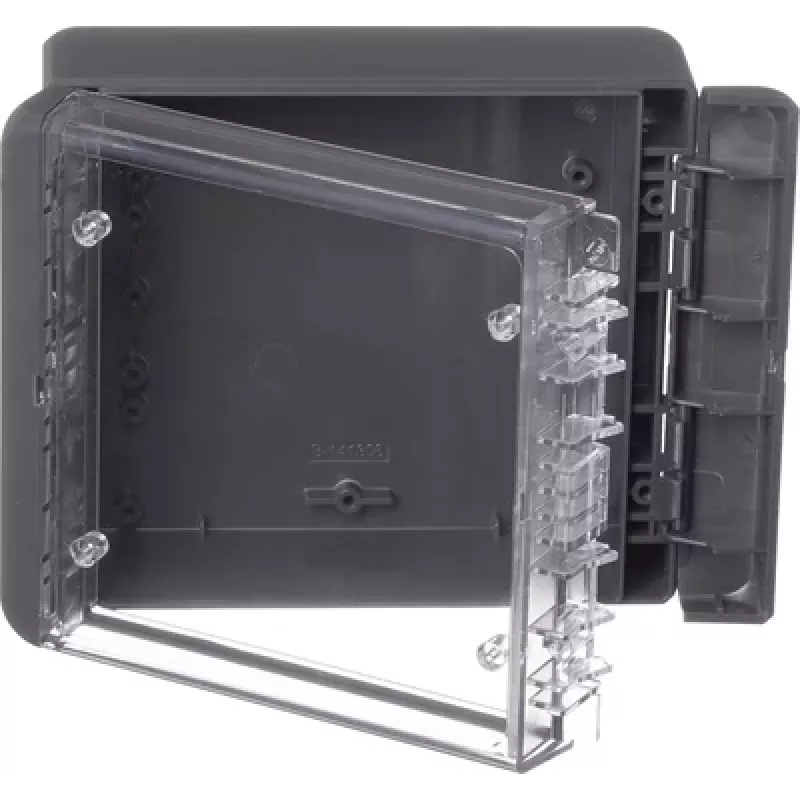

Carcasa de pared BOPLA EUROMAS II, policarbonato, gris grafito (RAL 7024), 151 x 125 x 60 mm, IP65

This BOPLA EUROMAS II wall-mount enclosure provides a robust housing for electrical and electronic installations in industrial environments. Its polycarbonate body offers high impact resistance (IK07) and reliable protection against dust and water jets (IP65).

Advantages

The enclosure is made of halogen-free polycarbonate, ensuring safety and durability. The graphite grey (RAL 7024) finish blends well in industrial settings. A polyurethane gasket seals the lid, and four stainless steel screws secure it, maintaining the IP65 rating. The operating temperature range of -40 °C to +80 °C allows use in harsh conditions.

Suitable for

• Industrial control systems
• Electrical junction boxes
• Electronic device housings
• Wall-mounted installations

Key specifications

• External dimensions: 151 x 125 x 60 mm
• Internal dimensions: approx. 143 x 117 x 52 mm
• Material: Polycarbonate
• Colour: Graphite Grey (RAL 7024)
• Protection class: IP65
• Impact resistance: IK07
• Flammability rating: UL 94 V-2
• Lid fastening: 4 stainless steel screws
• Gasket material: Polyurethane (PU)
• Halogen-free: Yes
• RoHS compliant: Yes

Recommendations

Choose this enclosure for applications requiring a compact, durable, and weather-resistant housing. Its wall-mount design and screw-on lid make installation and maintenance straightforward.
