Carcasa de servidor Supermicro CSE-813MFTQC-505CB Rack Negro 500 W

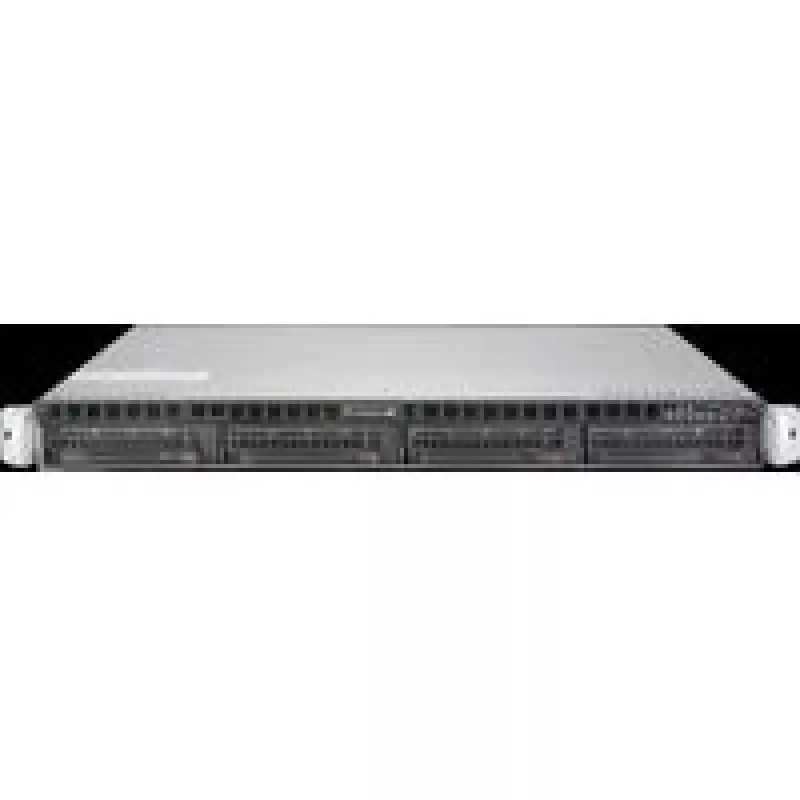

The Supermicro CSE-813MFTQC-505CB is a 1U short-depth rackmount server chassis in black, designed for compact server installations. It includes a 500W platinum-level power supply (94%+ efficiency), supports four hot-swap 3.5" SAS/SATA drives and provides a full-height, full-length I/O expansion slot. The chassis dimensions (437 mm × 503 mm × 43 mm) make it suitable for standard rack setups where space efficiency and serviceability are important.

Advantages

This rack chassis offers high power efficiency with a platinum-level 500W PSU, multiple hot-swap 3.5" drive bays for easy storage expansion and maintenance, and active cooling via four 4 cm high-performance fans to support stable operation. The full-height, full-length I/O expansion slot and optional slim DVD bay tray (with USB/COM port) provide flexible connectivity and upgrade options.

Suitable for

• Compact rack-mounted servers in data centers or branch offices
• Storage-focused systems using 3.5" SAS/SATA drives
• Applications requiring high serviceability and drive hot-swap

Key specifications

• Model: Supermicro CSE-813MFTQC-505CB
• Form factor: 1U short-depth rackmount chassis
• Power supply: 500W Platinum-level (94%+ efficiency)
• Drive bays: 4 × 3.5" hot-swap SAS/SATA
• Cooling: 4 × 4 cm high-performance fans
• Expansion: 1 × full-height, full-length I/O slot
• Optional: Slim DVD bay tray with USB/COM port
• Dimensions: 437 mm (W) × 503 mm (D) × 43 mm (H)
• Color: Black
• MPN: CSE-813MFTQC-505CB, EAN: 672042198900

How to use

Install the chassis into a standard 19" rack using appropriate mounting rails or brackets. Mount 3.5" SAS/SATA drives into the hot-swap trays and slide them into the front bays for immediate recognition by most server backplanes. Connect the 500W PSU to the server motherboard and peripheral power connectors. Use the full-height, full-length I/O slot for add-in cards as required. If needed, install the optional slim DVD bay tray to provide a front-access USB/COM interface.

Recommendations

Place the chassis in a rack with adequate airflow and ambient temperature control. Regularly check and maintain the four cooling fans and monitor PSU health. Use compatible server motherboards and backplanes that support hot-swap functionality for the 3.5" drive bays.
