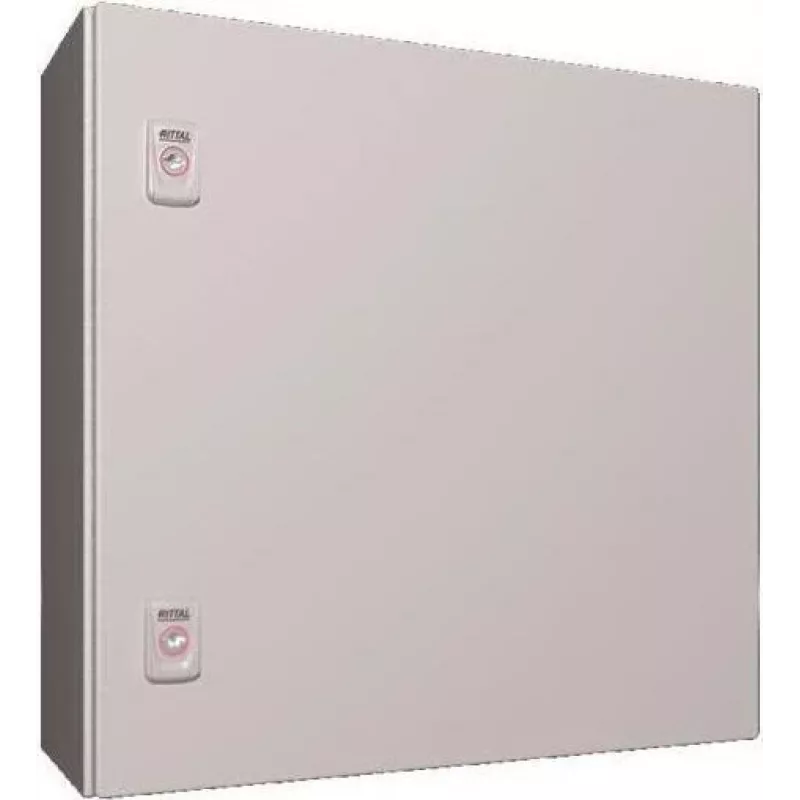

Carcasa eléctrica Rittal AX 1050.000, acero, IP66, 500×500×210 mm

Rittal AX 1050.000 is a compact sheet-steel electrical enclosure engineered for robust protection of small electrical and control equipment. With exterior dimensions of 500 × 500 × 210 mm and IP66 rating, the enclosure is dust-tight and protected against powerful water jets, making it suitable for indoor and outdoor installations where reliable environmental protection is required. The design supports tidy interior installation of switchgear, terminal blocks, meters and other small control components while maintaining consistent engineering data for integration into systems.

Advantages

The steel construction provides mechanical strength and long service life, while the IP66 protection class ensures resistance to dust and high-pressure water exposure. The compact size facilitates installation in constrained spaces and simplifies planning and panel layout. The enclosure’s finish and dimensions are optimized for compatibility with common mounting accessories and internal assembly, improving installation efficiency.

Suitable for

Key specifications

How to use

Mount the enclosure on a stable surface using appropriate fasteners and ensure correct orientation for cable entry and drainage. Open the door and fit required internal mounting plates, DIN rails or mounting brackets compatible with the enclosure dimensions. Install electrical components such as terminal blocks, meters and relays, routing cables to preserve clearances and maintain IP66 integrity around cable entries by using appropriate sealed glands or conduits. After assembly, close the door and verify seals and fasteners are secure to maintain environmental protection.

Recommendations

For preserved IP66 performance, use compatible cable glands or conduit entries rated for IP66, avoid modifying the enclosure without appropriate sealing, and follow local electrical codes during installation. Regularly inspect seals and fasteners for corrosion or damage in outdoor or harsh environments.
