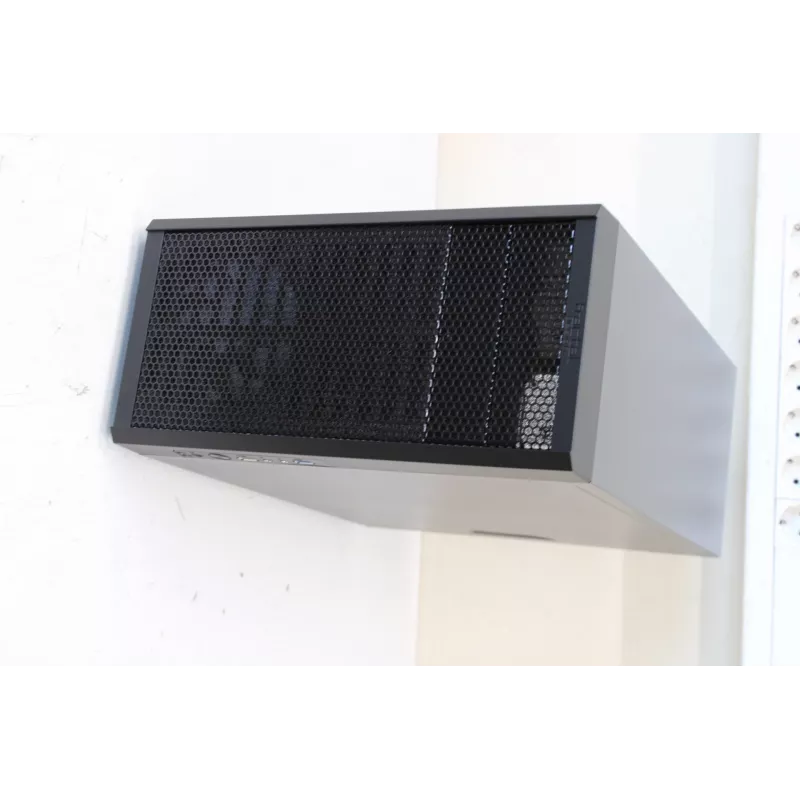

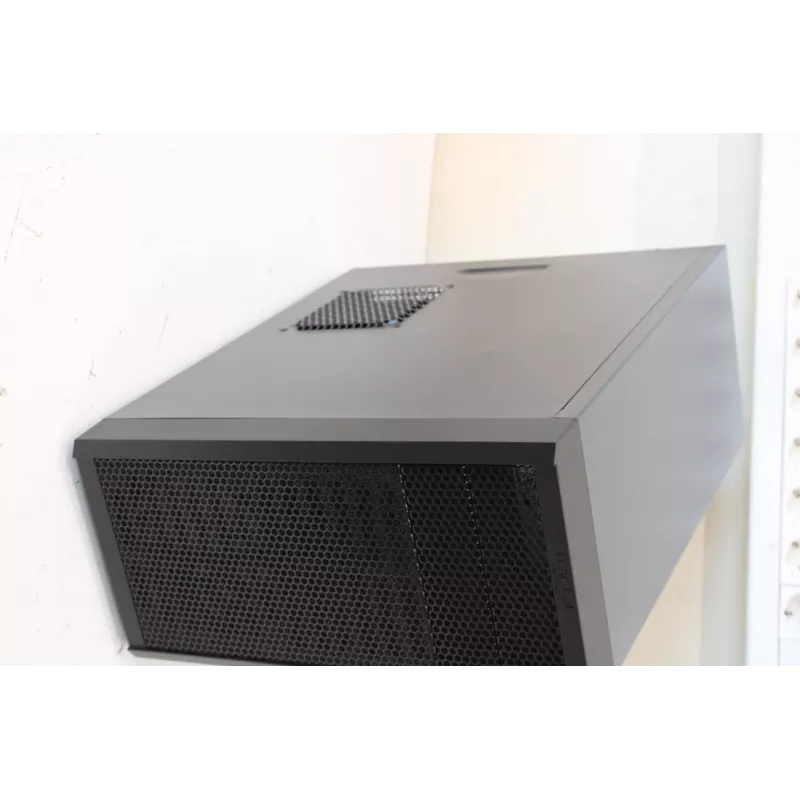

Carcasa Fractal Design Core 1000 USB 3.0 Negra Micro ATX — embalaje dañado, fuente de alimentación no incluida

Width: Case size (WxHxD): 175x355x420mm with front and top bezel in placeNet weight: 4,1kg | Dimensions (WxDxH): Case size (WxHxD): 175x355x420mm with front and top bezel in placeNet weight: 4,1kg | Height: Case size (WxHxD): 175x355x420mm with front and top bezel in placeNet weight: 4,1kg | Drive bays: 2x 3,5 inch HDD trays or 3x 2,5” SSD - You can mount 1x 3,5” HDD tray and 1x 2,5” SSD at the same time | Depth: Case size (WxHxD): 175x355x420mm with front and top bezel in placeNet weight: 4,1kg | Other features: 2x 5,25 inch bays, with 1x 5,25>3,5 inch converter included2x USB 2.0 and Audio I/O – mounted on side of front panelNo PSU includedM/B compatibility: Mini ITX and Micro ATX4 expansion slots with sleek white painted bracketsSupports graphic card lengths up to 210mm when using both HDD slots in the removable HDD traySupports graphic card lengths up to 350mm when using only the top HDD slot in the removable HDD traySupports CPU coolers with height of 135mm, REFURBISHED | Warranty: 24 | Saleout: DAMAGED PACKAGING, BENT ON THE SIDE | Net weight: 4.00 | Gross weight: 5.414 | Packing quantity: 1.00 | Volume (m3): 0.05 | Tare weight (kg): 1.414 | Gross depth (mm): 480.00 | Gross width (mm): 230.00 | Gross height (mm): 420.00 | Plastic (No PET): 27.00 | Paper/Pasteboard: 1387.00 | Embeeded battery: No | WEEE tax: No | Audio input: Yes | Reset button: Yes | Form factor: Micro ATX | Package depth: 41.5 | Weight: 4.1 | Colour of product: Black | Power supply included: No | Manual: Yes | Package height: 47.5 | Type: PC | Side fans installed: 1x 120 mm | Number of expansion slots: 4 | Side window: No | Number of 3.5" bays: 2 | Package width: 22.5 | Package weight: 5 | Maximum CPU cooler height: 14.8 | Supported hard disk drive sizes: 2.5,3.5 | Rear fans installed: 1x 92 mm | Built-in speaker(s): No | Supported motherboard form factors: Micro-ATX, Mini-ITX | Audio output: Yes | Front fans installed: 1x 120 mm | USB 2.0 ports quantity: 1 | USB 3.0 (3.1 Gen 1) Type-A ports quantity: 1 | Maximum graphics card length: 35 | Box contents: Core 1000 USB 3.0 computer caseAccessory boxUser manual | Interface: 1 - USB 3.0 with internal connector1 - USB 2.01 - 3.5mm audio in (mic)1 - 3.5mm audio out (headphone)Power button with LEDHDD LEDReset button | Cooling type: Front: 1 - 120mm fan (included is a hydraulic bearing 120mm Silent Series R2 fan, 1200 RPM speed)Rear: 1 - 92mm fan (not included)Side: 1 - 120mm fan (not included) | Producer product name: Core 1000 USB 3.0 | Palette Qty: 19 | Producer: Fractal Design | SALE OUT.: Y, Y, Y

How to use

Install a Micro ATX motherboard inside the case using the provided standoff positions and screws. Select and mount a compatible ATX power supply in the designated compartment, routing cables to the motherboard and drives. Fit storage devices into the appropriate 3.5" or 2.5" bays and connect power and data cables. Attach case fans as required for airflow and connect the front-panel USB 3.0 and audio cables to the motherboard headers. After assembly, verify all connections and test system boot before closing the side panels.

Recommendations

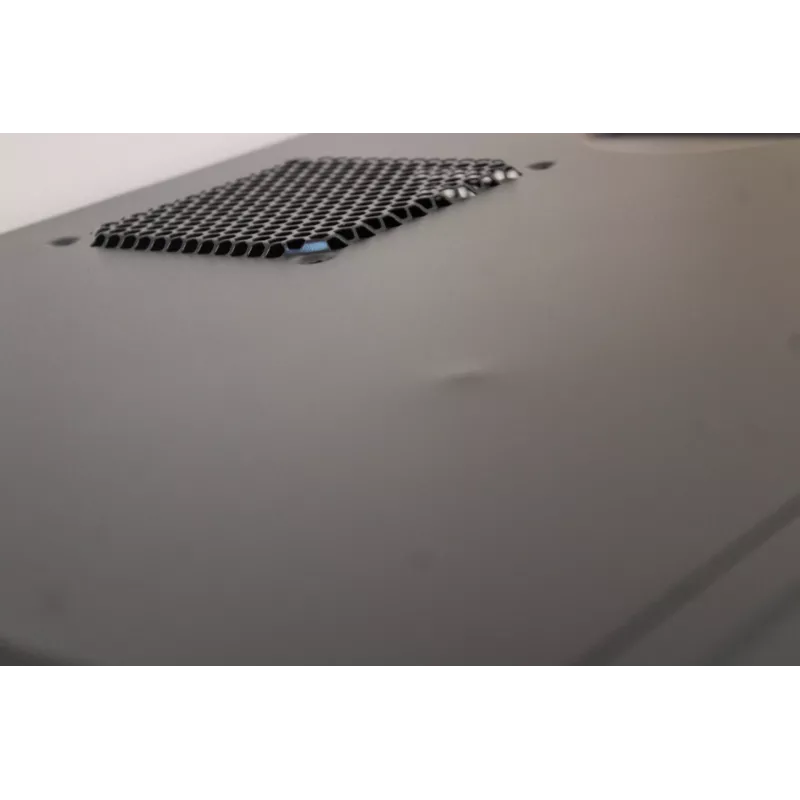

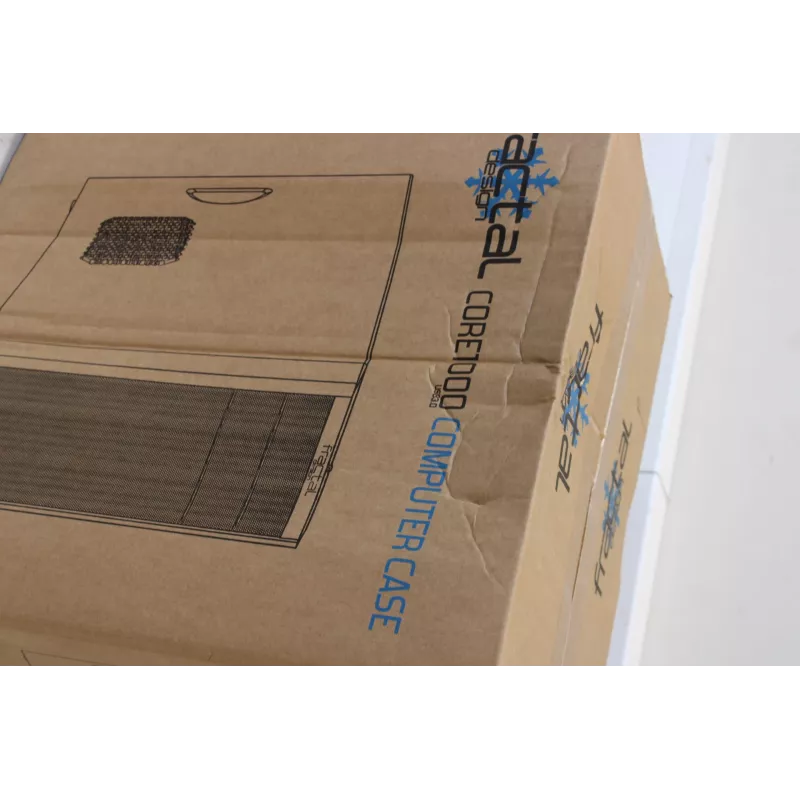

Because this item has damaged packaging and visible bends, inspect the chassis for dents, alignment issues, or sharp edges before installation. Confirm that mounting points and panel fittings are intact and that internal drive bays and standoffs are not deformed. Choose a power supply that fits the case layout and cable routing needs, and use anti-static precautions during assembly.
