Carcasa MB-TPR5-MP-B 520 x 400 x 140 mm STALFLEX

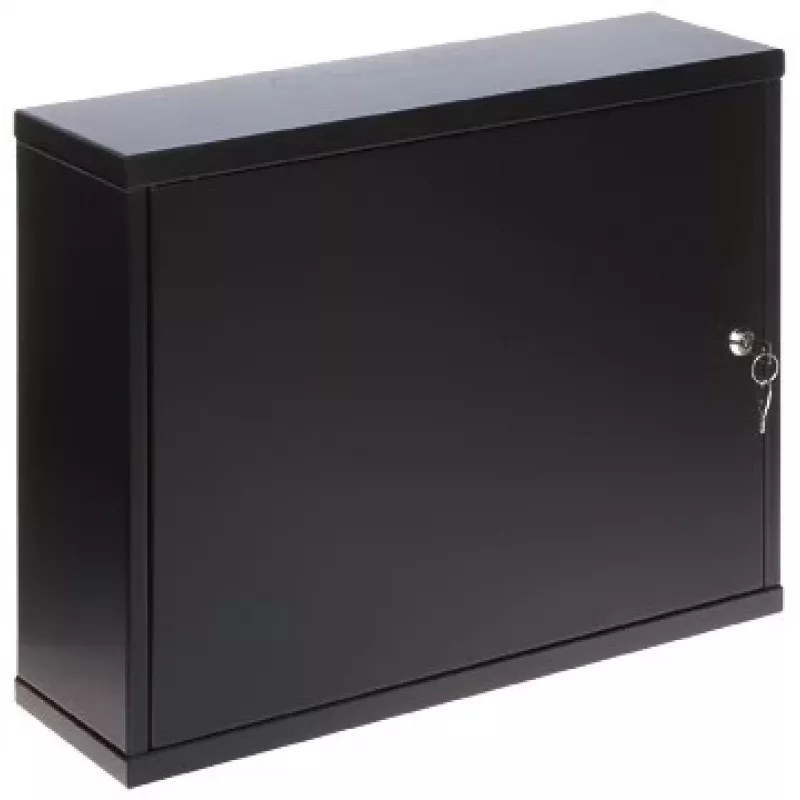

The STALFLEX MB-TPR5-MP-B is a robust universal metal enclosure designed for surface mounting in indoor and outdoor environments. With dimensions of 520 x 400 x 140 mm and an IP65 rating, it provides reliable protection for electrical and electronic components against dust and water jets.

Advantages

High-quality powder-coated steel construction ensures durability and corrosion resistance. The included galvanized steel mounting plate simplifies installation, while the quarter-turn lock with key provides secure access. Suitable for a wide operating temperature range from -25°C to +60°C.

Suitable for

• Electrical enclosures for industrial control systems
• Distribution boxes for power and data networks
• Wall-mounted junction boxes for outdoor applications

Key specifications

• Enclosure Type: Universal Metal Enclosure
• Mounting Type: Surface-Mounted (Wall-Mounted)
• Material: Powder-Coated Steel
• Ingress Protection (IP) Rating: IP65
• External Length: 520 mm
• External Width: 400 mm
• External Height (Depth): 140 mm
• Door Type: Single Hinged Door
• Lock Mechanism: Quarter-Turn Lock (with key)
• Color: Light Grey (RAL 7035)
• Material Thickness: 1.0 mm
• Internal Mounting Plate: Included (Galvanized Steel)
• Cable Entry: Bottom Gland Plate / Knockouts
• Application Environment: Indoor/Outdoor
• Corrosion Resistance: High
• Operating Temperature Range: -25°C to +60°C
• Standards Compliance: EN 60529 (for IP rating)

Recommendations

For optimal installation, ensure proper cable gland selection and sealing of unused knockouts to maintain IP65 protection. This enclosure is ideal for housing switches, controllers, and terminal blocks in demanding environments.
