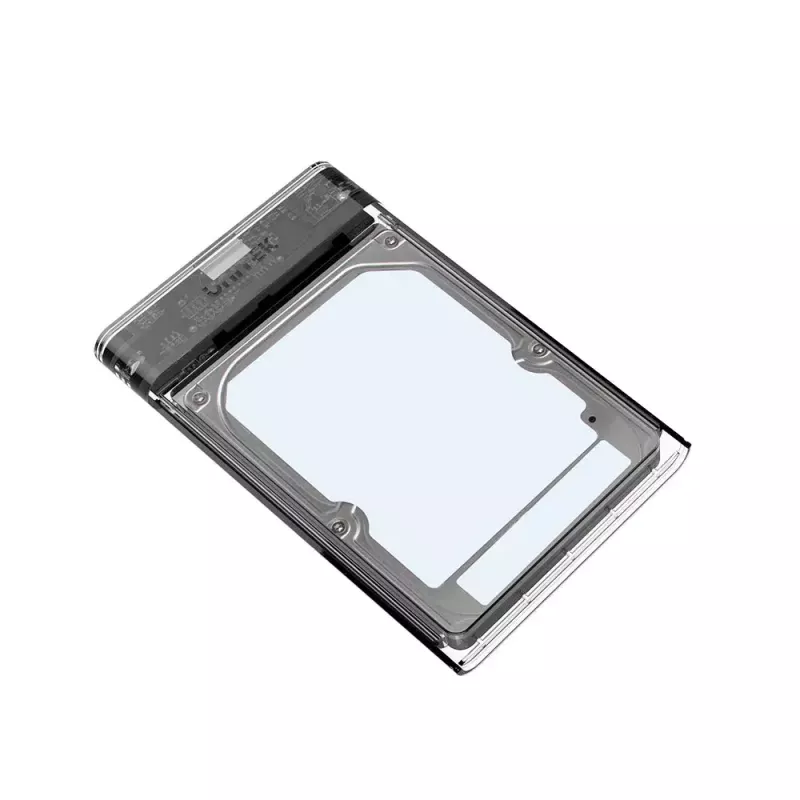

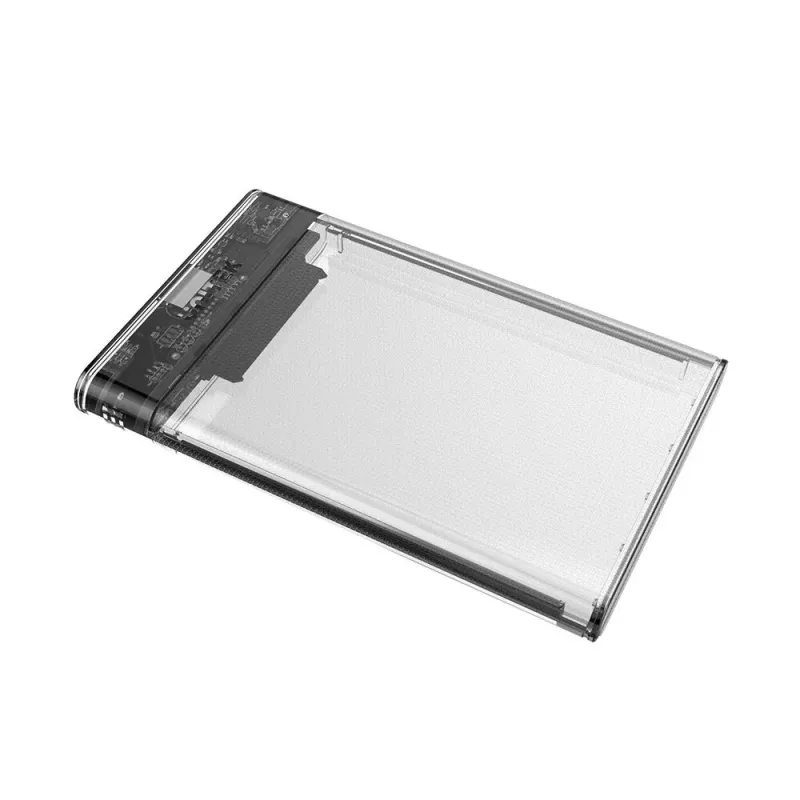

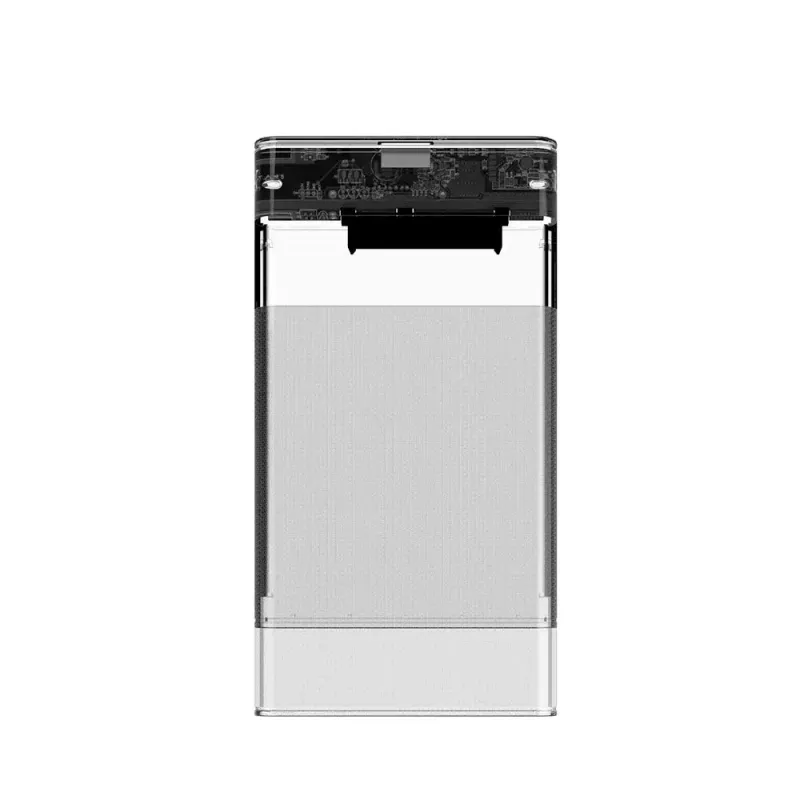

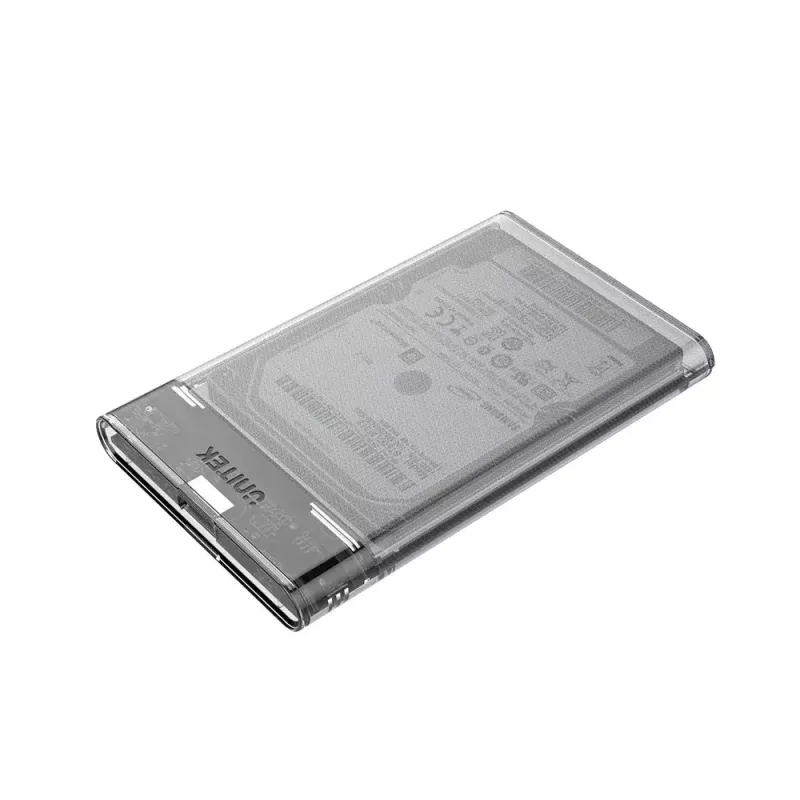

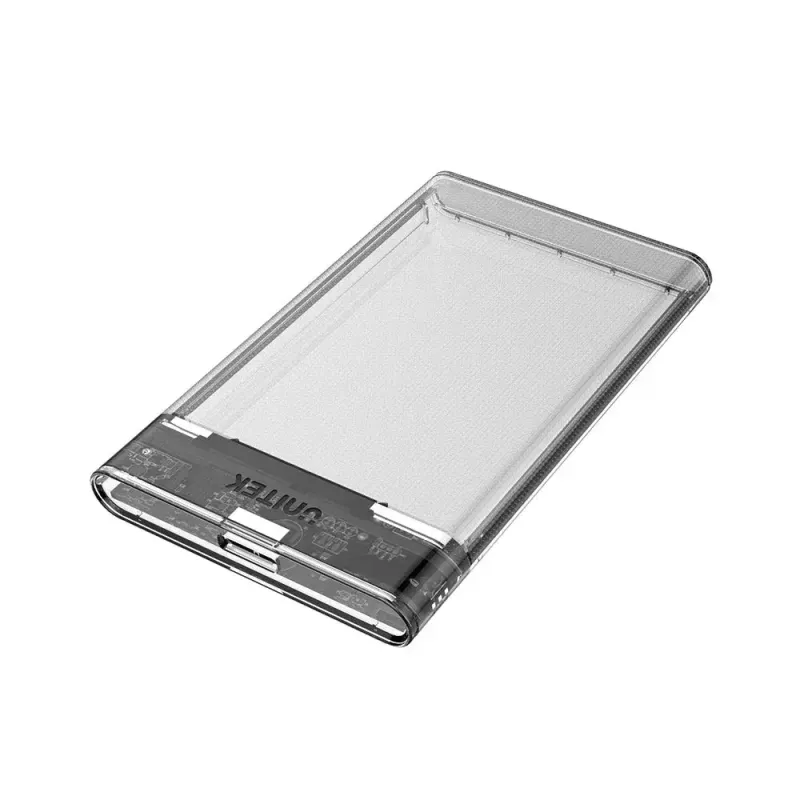

Carcasa para HDD/SSD Unitek S1103A transparente para unidades SATA III de 2,5", USB 3.1 Gen 1 (Micro-USB B)

The UNITEK S1103A Transparent 2.5" HDD/SSD enclosure houses a single 2.5-inch SATA I/II/III hard drive or solid-state drive (7mm or 9.5mm). It uses a Micro-USB B connector and complies with USB 3.0 (3.2 Gen 1) for up to 5 Gbps transfer speed and also supports UASP to improve read/write performance.

Advantages

The transparent casing provides easy visual access to the installed drive for identification and status checks without disassembly. Tool-free installation allows quick mounting and removal of 2.5" HDD or SSD drives. USB 3.0 connectivity and UASP support deliver faster data transfer and lower latency compared with USB 2.0.

Suitable for

• Cloning or migrating data from an internal 2.5" drive
• Portable external storage for backups and file transport
• Testing or troubleshooting 2.5" SATA HDDs and SSDs
• Temporary expansion of laptop or desktop storage

Key specifications

• Supported drives: 2.5" SATA I/II/III HDD and SSD (7mm & 9.5mm)
• Number of drives supported: 1
• Interface to host: USB 3.2 Gen 1 (USB 3.0), Micro-USB B
• Maximum transfer rate: up to 5 Gbps
• UASP: supported
• Colour: Transparent

How to use

Open the enclosure using the tool-free mechanism, insert the 2.5" SATA drive ensuring the SATA connector aligns with the board, then close the case until it locks. Connect the enclosure to a host computer using the supplied Micro-USB B to USB cable. The drive should be recognised by the operating system; if necessary, initialise or format the drive in the system disk management utility before first use.

Recommendations

For best performance, use with a USB 3.0 (or higher) port and enable UASP support in the operating system when available. Handle the drive and enclosure on a static-free surface and avoid excessive shock or vibration. Ensure the drive thickness (7mm or 9.5mm) matches the enclosure before installation.
