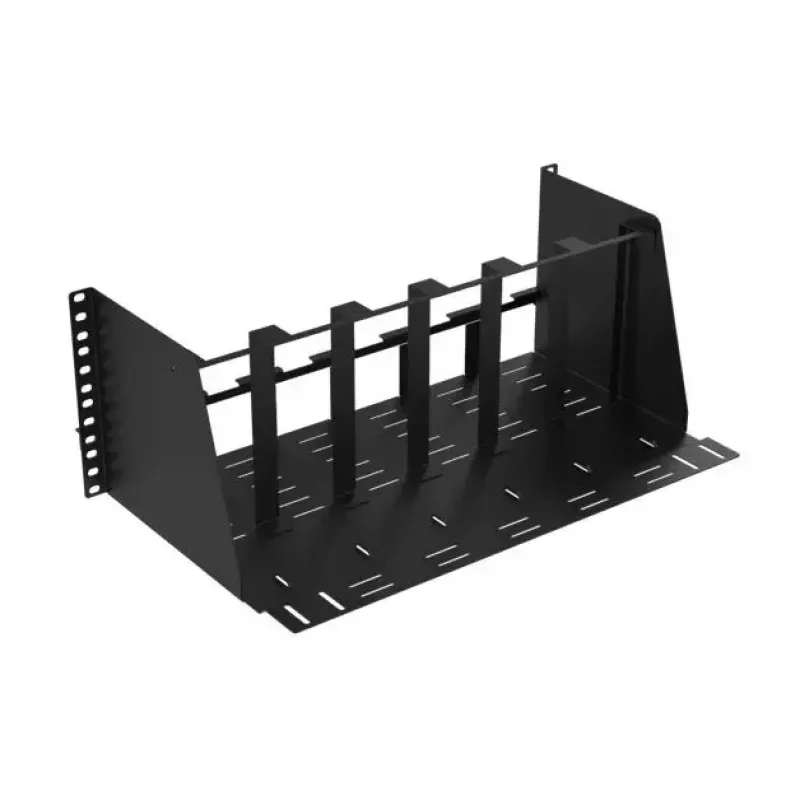

Carcasa para mini PC Lanview LVR-MINIPC-BRACK-4UBL – carcasa metálica compacta, modelo LVR-MINIPC-BRACK-4UBL

Lanview LVR-MINIPC-BRACK-4UBL is a 19" 4U shelf for rack mounting Mini PC systems. The compact metal shelf is designed to hold up to six mini PCs in a standard 19-inch rack, offering a durable, space-saving mounting solution with external dimensions of W 482 x D 263.9 x H 179 mm and a maximum static load of 30 kg. The shelf is finished in RAL 9005 (black).

Advantages

The metal 4U shelf provides a rigid and stable platform for multiple mini PC units, simplifying rack organization and saving desk space. Its compact depth of 263.9 mm accommodates small form-factor chassis while maintaining compatibility with standard 19" racks. With a maximum static load of 30 kg and a black RAL 9005 finish, the shelf combines practical load capacity and a professional appearance.

Suitable for

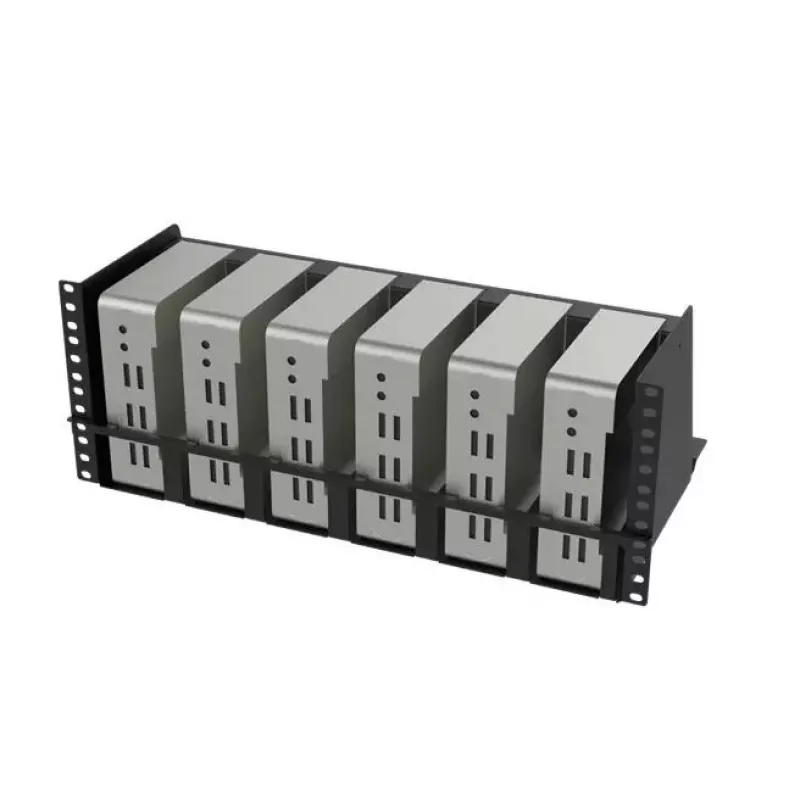

• Mounting up to six Mini PCs in a 19" rack
• Digital signage players and media playback appliances
• Space-saving desktop and embedded system installations
• Server rooms or network cabinets where small devices need organized mounting

Key specifications

• Product name: Lanview LVR-MINIPC-BRACK-4UBL
• Form factor: 19" 4U shelf for Mini PC rack mounting
• Capacity: up to 6 Mini PCs
• Dimensions (W x D x H): 482 x 263.9 x 179 mm
• Maximum static load: 30 kg
• Color: RAL 9005 (black)
• Manufacturer part number (MPN): LVR-MINIPC-BRACK-4UBL
• EAN: 5715328130432

How to use

Install the shelf into a standard 19" rack at the desired 4U position using appropriate rack screws and mounting hardware. Position each Mini PC on the shelf so that ventilation and cabling are not obstructed, and secure devices as needed to prevent movement. Ensure the combined weight of installed units does not exceed the 30 kg maximum static load. Connect power and network cables following normal rack wiring practices.

Recommendations

For reliable operation, distribute weight evenly across the shelf, allow clearance for airflow around each Mini PC, and avoid exceeding the specified maximum load. Use compatible mounting hardware for your rack and consult chassis or Mini PC manufacturer guidance for device-specific mounting requirements.
