Carcasa rack de pared DIGITUS Dynamic-N 7U 19" 600x600 mm, sin montar, IP20, cerradura con llave

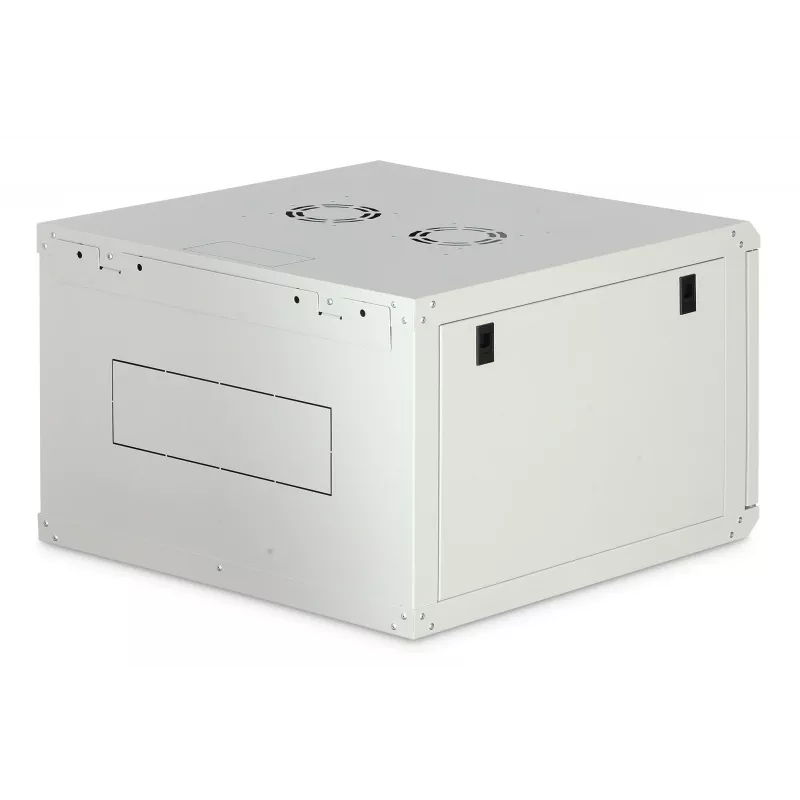

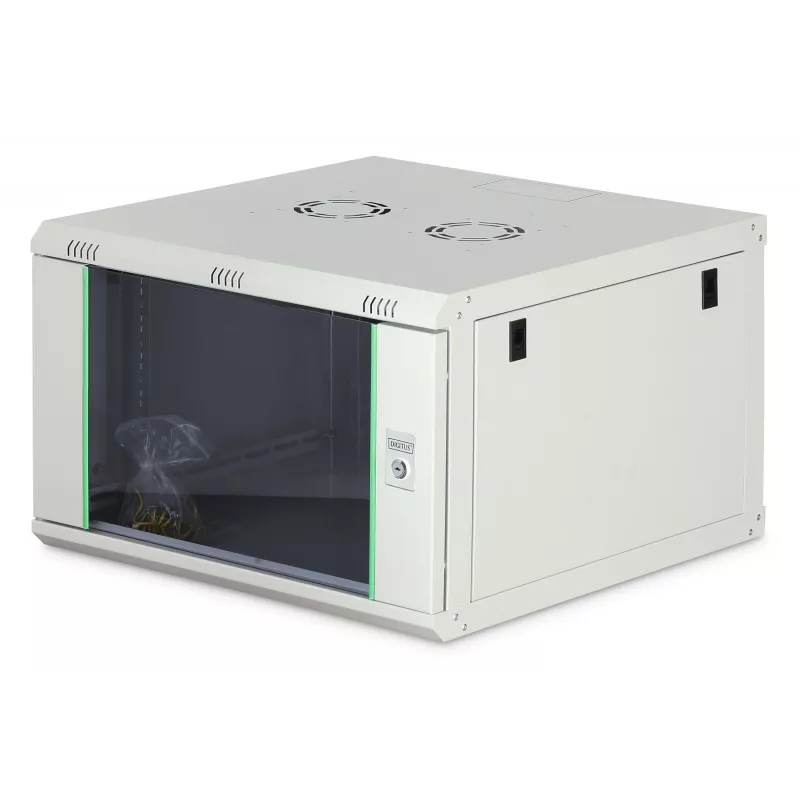

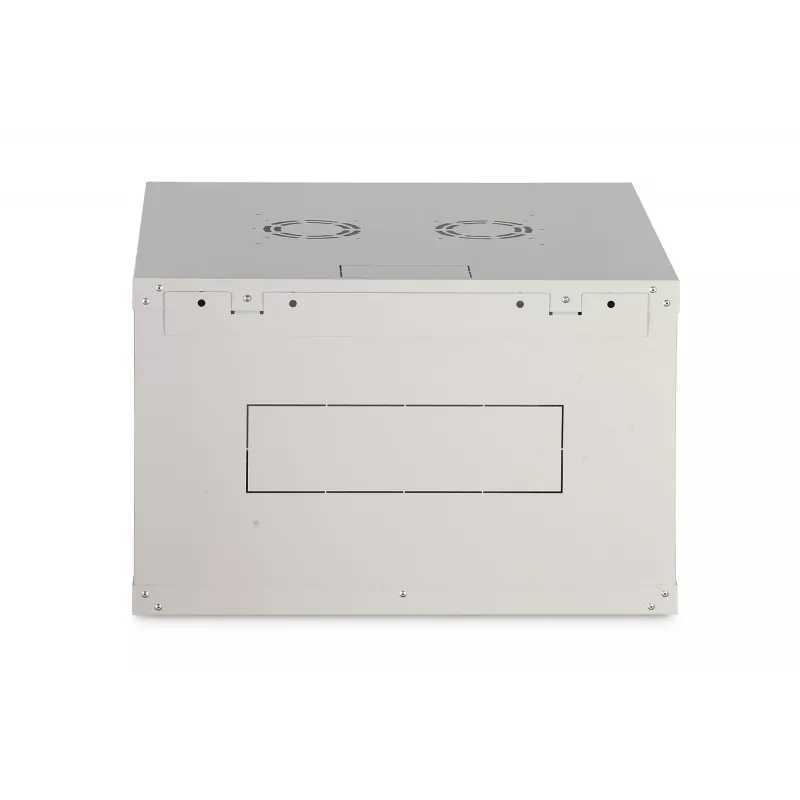

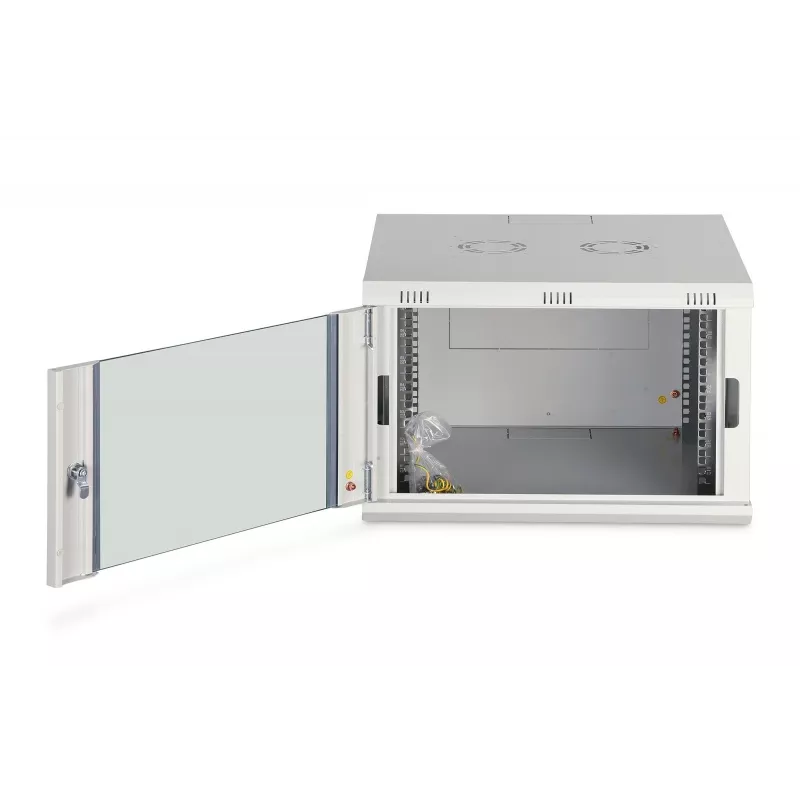

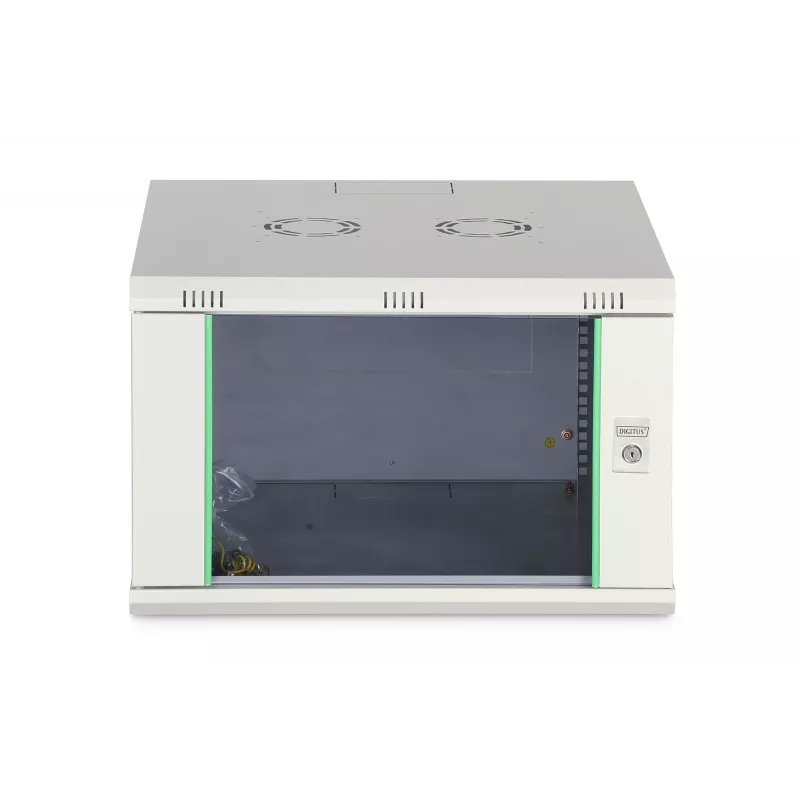

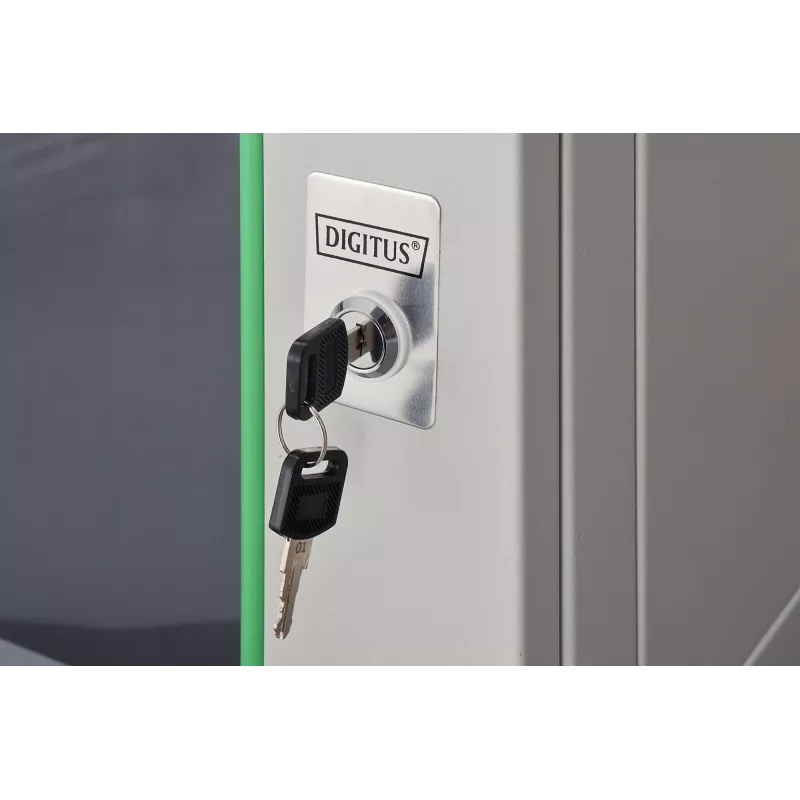

The DIGITUS Dynamic‑N wall-mounted 7U 19" rack cabinet offers a compact, robust enclosure for network and telecommunication equipment. With external dimensions of 600 x 600 mm (width x depth) and a height of 385 mm, the cabinet supports standard 19" devices on adjustable and galvanized 483 mm profile rails at front and rear. The enclosure is made from 1.0–1.2 mm sheet steel with a light grey powder-coated finish, includes a lockable safety glass front door with steel frame, and provides IP20 protection. The product is supplied unassembled to reduce transport volume and requires straightforward assembly and wall mounting. Maximum equipment load is 60 kg and the net cabinet weight is 17.6 kg.

Advantages

The cabinet combines durable steel construction and adjustable rack rails to accommodate a variety of 19" components while keeping a small footprint. Pre-punched cable entry points at the roof, rear and base together with ventilation slots and a fan-mounting provision make cable routing and thermal management easier. The lockable glass door and earthing points contribute to secure and professionally grounded installations. Supplied unassembled, the enclosure is optimized for transport and allows simple on-site assembly and installation.

Suitable for

• Small server rooms and network closets where floor space is limited
• Telecommunication and network distribution points in offices or branch locations
• Mounting of patch panels, switches, routers and compact UPS units within 7U
• Environments requiring a lockable, visible front door for monitoring and security

When it may not be suitable

This 7U wall cabinet has limited internal depth and a maximum load of 60 kg, so it may not be suitable for large, heavy servers, full-size rack systems or installations that require more than 7U of rack space. Because the cabinet is rated IP20, it is intended for indoor use in clean, dry environments and is not suitable for outdoor, dusty or wet locations.

Key specifications

• Rack capacity: 7U
• External width x depth: 600 x 600 mm
• External height: 385 mm
• Material: 1.0–1.2 mm sheet steel with glass front door and steel frame
• Finish: Light grey powder coating
• Protection class: IP20
• Maximum equipment load: 60 kg
• Net weight: 17.6 kg
• Front and rear 483 mm (19") galvanized profile rails, depth-adjustable and height-marked
• Cable entry: pre-punched cut-outs at roof, rear and base

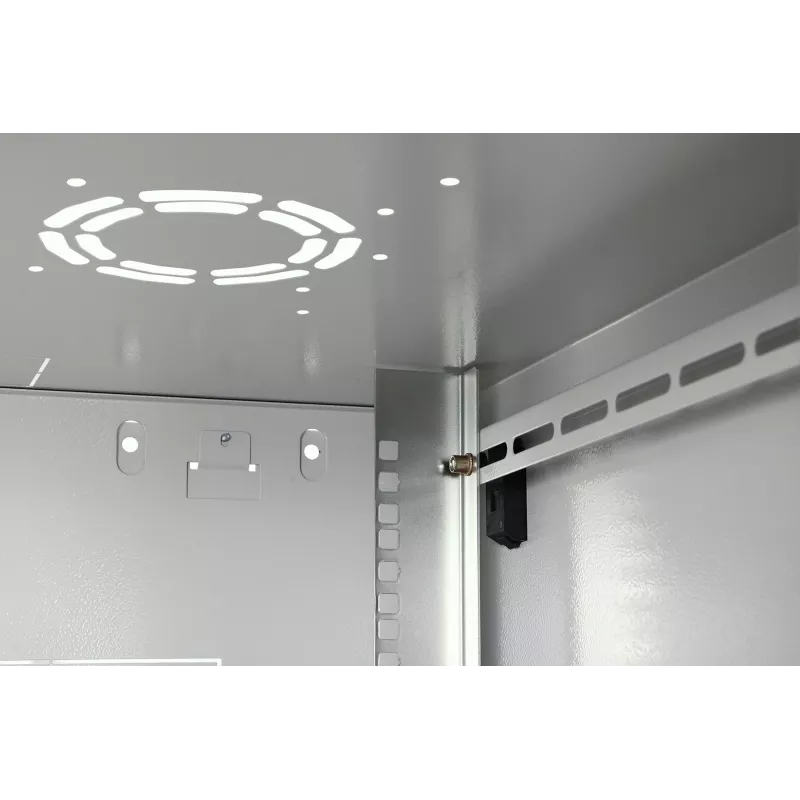

• Ventilation slots and provision for fan element

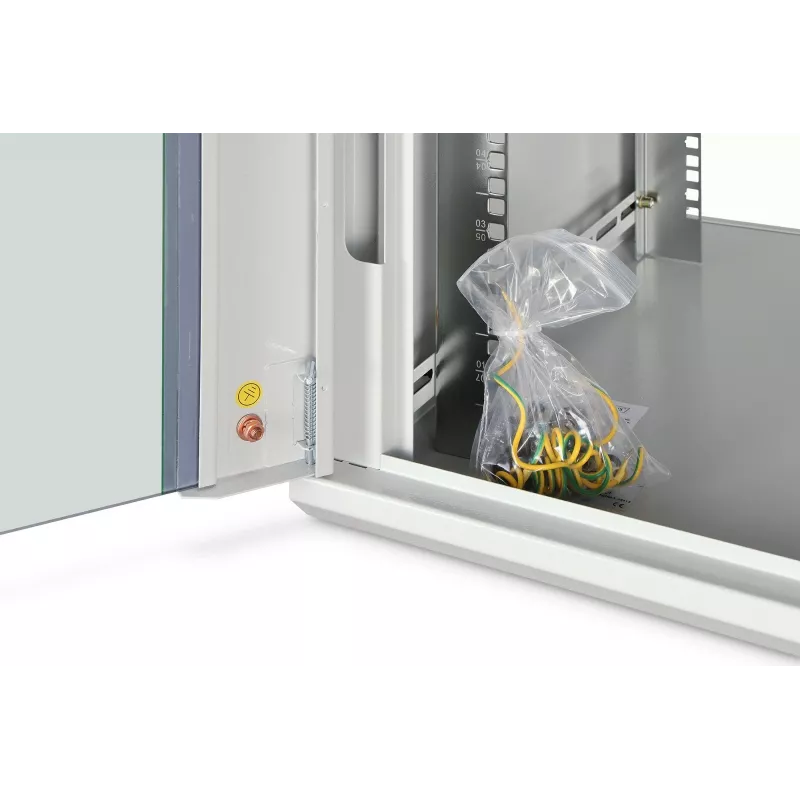

• Earthing points on base, side panel and front door

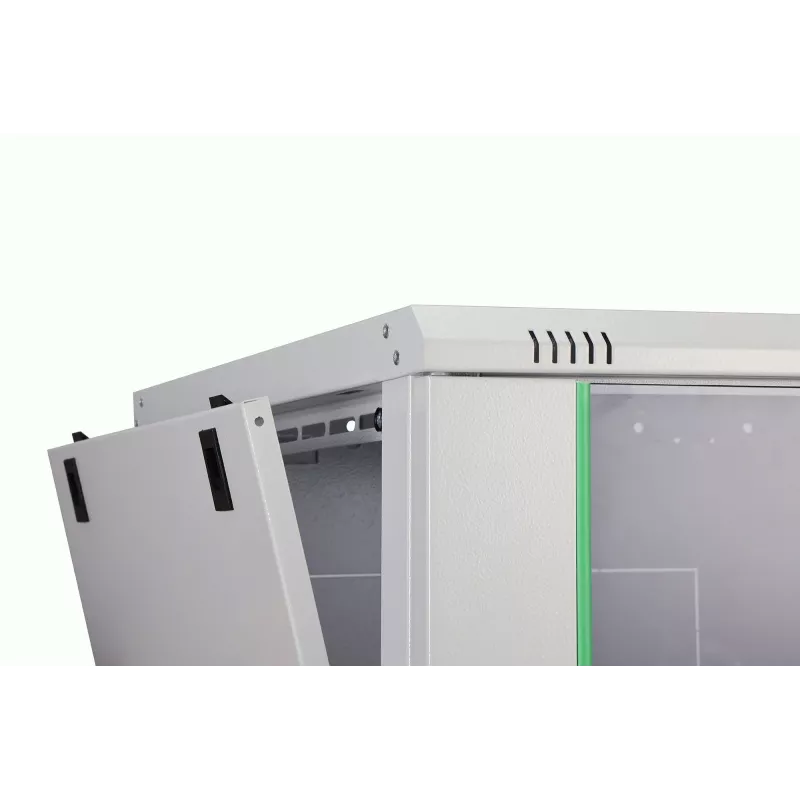

• Removable side panels, front and rear doors

How to use

Unpack the flat-packed cabinet and follow the included assembly instructions to mount the panels, door and rails. Fasten the supplied wall-mounting plate to a suitable load-bearing wall, then secure the assembled housing to the plate. Install 19" equipment on the galvanized profile rails, adjusting rail depth to accommodate device installation depth (standard maximum installation depth 369–470 mm). Route cables through the pre-punched entries at the rear, roof or base and use the integrated cable management features to organise cabling. If needed, fit a fan module into the roof provision and ensure earthing points are connected for proper grounding. Lock the front door with the key when access control is required.

What to consider before purchase

• Verify total required rack units and device depths to confirm 7U and installation depth are sufficient
• Confirm combined equipment weight does not exceed the 60 kg capacity
• Ensure installation location is indoors and meets IP20 conditions (dry, low dust)
• Plan for mounting surface strength and appropriate fixings for wall installation
• Account for assembly time and basic tools needed for unassembled delivery

Recommendations

Place heavier devices lower in the cabinet to maintain stability, secure all devices to the 19" rails, and distribute weight evenly. Keep fan modules and ventilation paths unobstructed for effective cooling. Use the pre-punched cable entries and cable management options to minimise strain on connectors and maintain tidy cabling for easier maintenance.
