Carcasa Rittal KX 300×400×155 mm armario metálico, modelo 1577000

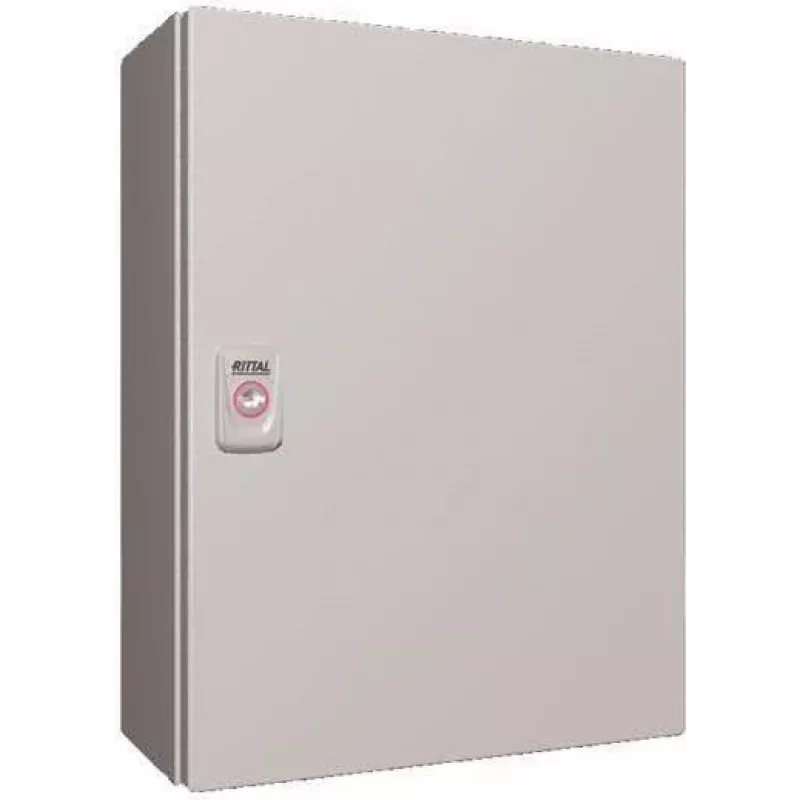

The Rittal KX metal enclosure with external dimensions 300 × 400 × 155 mm is a compact electrical cabinet designed to house control components, junctions and small electronic assemblies. Constructed from sheet steel and finished with a protective coating, this enclosure provides mechanical protection and organization for electrical installations in industrial and commercial environments. The cabinet supports wall mounting and offers a door with a secure closing mechanism for easy access to internal equipment.

Advantages

The enclosure combines a compact footprint with robust metal construction, offering reliable protection against mechanical impacts and environmental influences common in workshops and production areas. Its standardized dimensions and mounting options simplify installation and integration with DIN-rail accessories and cable entries. The removable inner panel and serviceable door design make maintenance and wiring tasks straightforward.

Suitable for

Key specifications

How to use

Prepare the mounting surface and fix the enclosure using appropriate anchors or screws for the substrate. Open the front door and, if necessary, remove the inner mounting panel to install DIN-rail components or attach terminal blocks. Route cables through prepared cable entries or knockouts, secure wiring inside the cabinet and close the door using the integrated locking or latching mechanism. Ensure that all electrical work is performed according to local standards and safety regulations.

Recommendations

Install the enclosure in a dry, ventilated location away from direct sources of heat or corrosive agents. Use appropriate cable glands and grommets to maintain ingress protection and prevent strain on wiring. For installations with higher environmental demands, select additional sealing or an enclosure variant with higher protection rating.
