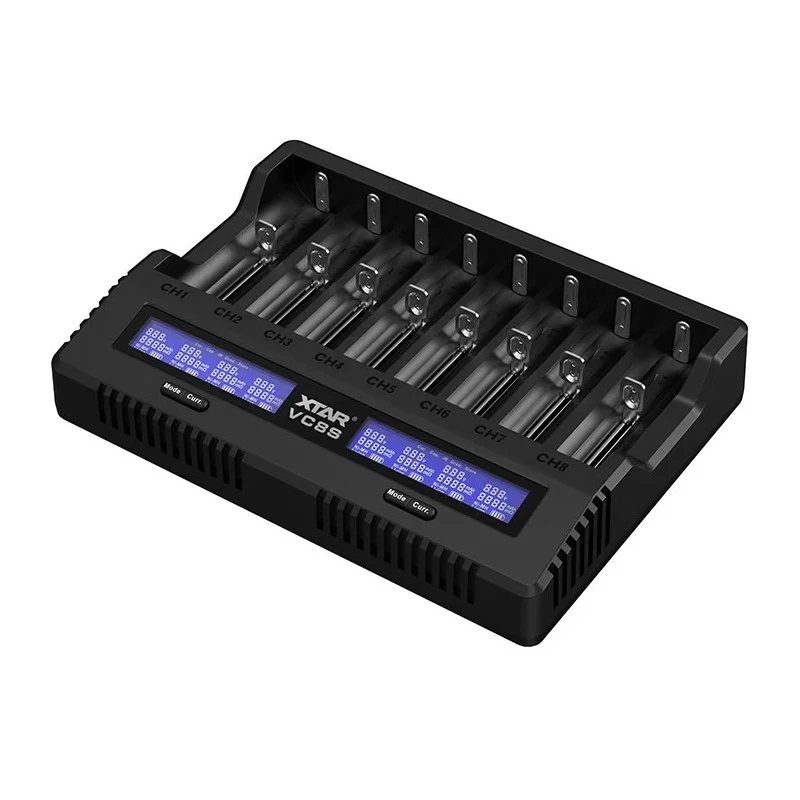

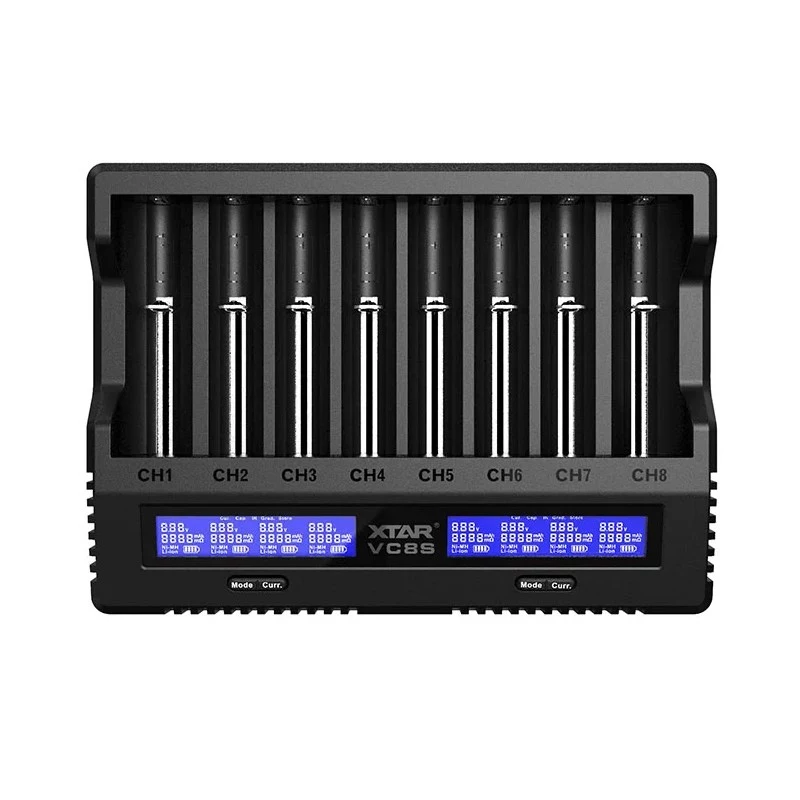

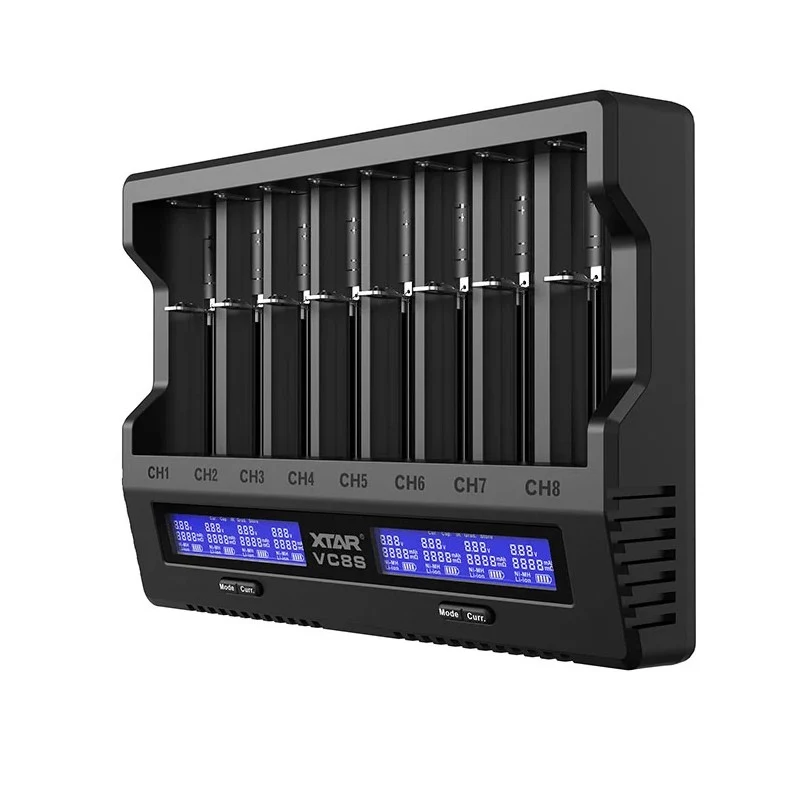

XTAR VC8S USB-C SET Cargador de baterías, 3,7V/1,2V

The XTAR VC8S USB-C SET is a microprocessor-controlled battery charger with eight independent charging channels and a backlit LCD display. It uses a three-stage TC/CC/CV charging method and supports Li-ion (3.6V/3.7V) and Ni-MH cells.

Key features

• Three-stage Li-ion charging method (TC/CC/CV)
• Eight independent charging channels
• LCD display
• Cell capacity measurement
• Charging current: 3A×2, 2A×4, 1A×8, 0.5A×8, 0.25A×8
• Charging voltage: Li-ion 4.2V ±0.05V
• Charges 1-8 Li-ion (3.6V/3.7V) and Ni-MH cells in sizes AAA/R03, AA/R6, 10440, 14500, 14650, 16340, 17500, 17670, 18350, 18500, 18650, and 18700
• Two outermost slots also support charging of R14, R20, 22650, 25500, and 26650 batteries, as well as protected 20700 and 21700 cells
• Backlit LCD screen displays real-time status information for each charging slot: battery voltage, charging current, charging time, and capacity delivered (mAh)
• Indicates when charging is complete and alerts to errors
• Capacity measurement mode (Grade Mode) available
• Grade Mode performs an automatic test cycle (charging, discharging, recharging) and displays measured capacity

Specifications

• Brand: XTAR
• MPN: VC8SSET
• Type: Wall
• Number of batteries: 8
• Battery sizes: AAA, AA, 10440, 14500, 14650, 16340, 17500, 17670, 18350, 18500, 18650, 18700
• Battery types: Ni-MH, Li-ion
• Protection: Surge, Circuit, Overload, Thermal
• Color: Black
