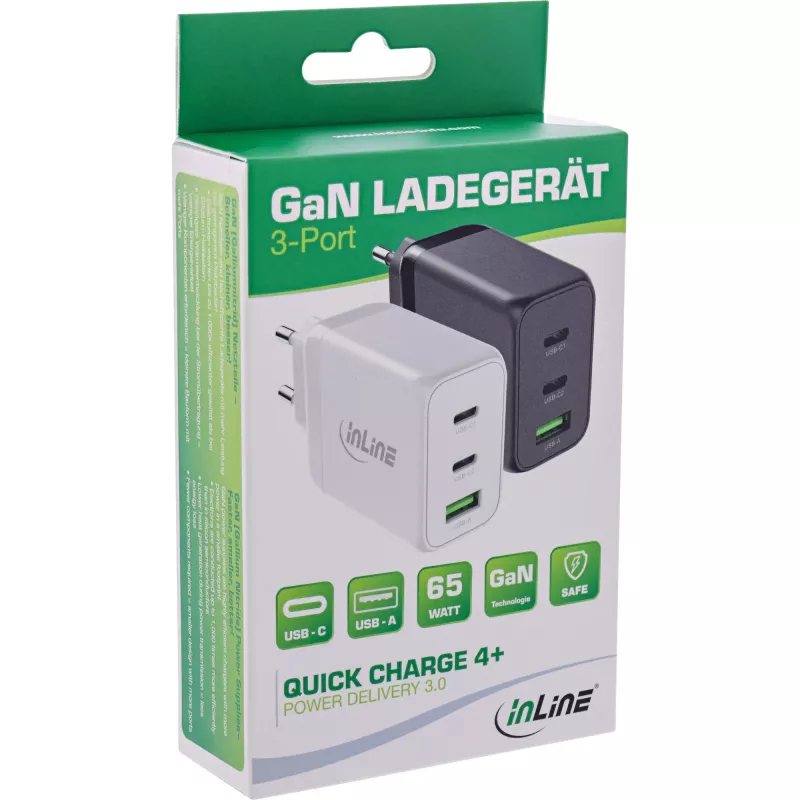

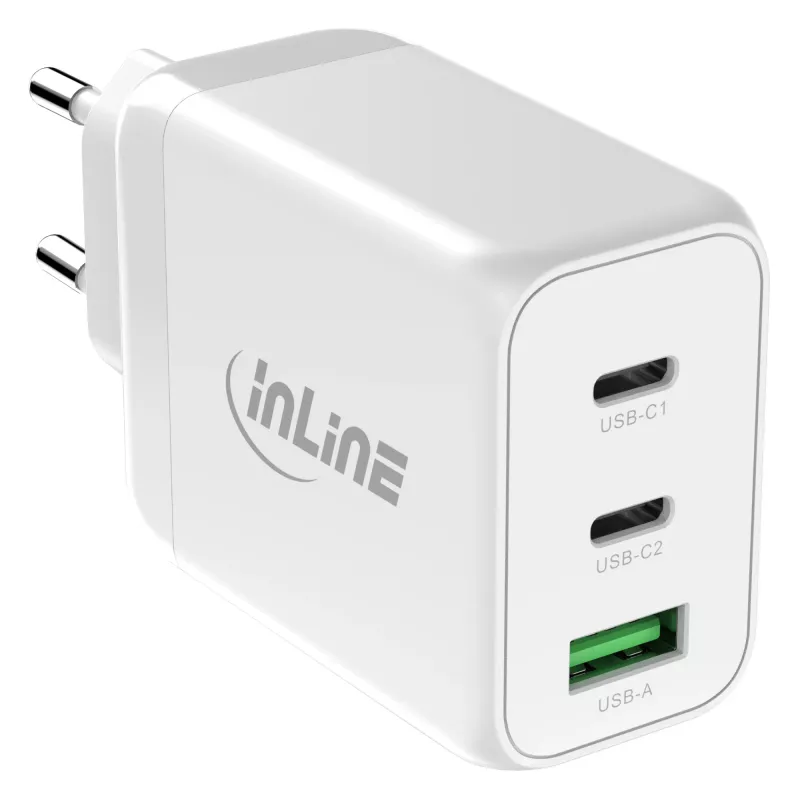

Cargador móvil InLine 31506E — Cargador rápido universal de CA para interiores, entrada 100–240 V, salida hasta 20 V/5 A, 1x USB-A, 2x USB-C, blanco

65 W total power with three charging ports:Simultaneously charges smartphones, tablets and notebooks – ideal for professional multi-device environments.
Modern GaN technology for maximum efficiency:Less heat generation, compact design – ideal for mobile use.
Power Delivery 3.0 & Quickcharge 4+ compatible:Supports a wide range of fast charging protocols – perfect for current USB-C devices.
Intelligent load distribution per port:Automatic adjustment of power to connected devices – protects batteries and devices.

The InLine® USB PD power supply with 65 W power is the powerful and compact solution for demanding multi-device environments. Equipped with two USB-C ports and one USB-A port, it offers maximum flexibility for simultaneous charging of modern devices.
Thanks to GaN technology, the power supply unit works particularly efficiently with low heat generation – ideal for professional continuous use. Power Delivery 3.0 and Quickcharge 4+ enable fast charging of notebooks, tablets, smartphones and accessories.
The intelligent load distribution automatically detects the connected devices and optimally adjusts the output power. A maximum total power of 65 W is achieved – even when using multiple ports simultaneously. Protective mechanisms ensure safe operation without overheating or overloading.

Input voltage: AC 100-240V
Input AC frequency: 50/60 Hz, 1.5 A
Output voltage: 3.3-20.0 V DC
Output current: max. 5.0 A
Output power: 65.0 W
Average operating efficiency: 86.67%
Efficiency at low load (10%): 76.64%
Power consumption at zero load: 0.27 W
USB-C1/C2 output: 3.3-11.0V / 3.0A or 5.0V/3.0A or 9.0V/3.0A or 12.0V/3.0A or 15.0V/3.0A or 20.0V/3.25A (65.0W max)
USB-A output: 4.5V/5.0A or 5.0V/4.5A or 9.0V/3.0A or 12.0V/2.5A or 20.0V/1.5A (30.0W max)
USB-C1+USB-C2 output: 45.0W + 18.0W (63.0W max)
USB-C1+USB-A output: 45.0W + 18.0W (63.0W max)
USB-C2+USB-A output: 5.0V/3.0A (15.0W max)
USB-C1+USB-C2+USB-A output: 45.0W + 5.0V/3.0A
USB PD 3.0 compatible, Quickcharge 4+ and backwards compatible
Dimensions: 95.7x47.2x29.4mm

InLine 31506E. Charger type: Indoor, Power source type: AC, Charger compatibility: Universal. Input voltage: 100 - 240 V, Maximum output voltage: 20 V, AC adapter output current: 5 A. USB 2.0 ports quantity: 1, USB Type-C ports quantity: 2, Fast charging. Product colour: White

How to use

Plug the charger into a compatible AC mains outlet (100–240 V). Connect devices using USB‑C or USB‑A cables. The charger negotiates the required voltage and current via USB Power Delivery or Quick Charge protocols; ensure your device supports the respective protocol for optimal charging speed. Distribute devices among the ports according to required power — high‑power devices should be connected to the primary USB‑C port when possible.

Recommendations

Use certified cables and connect devices one at a time when testing compatible power profiles. Avoid covering the charger during prolonged high‑power use and operate it in well‑ventilated indoor environments. This charger is intended for use with devices rated for USB PD or Quick Charge; follow device manufacturer guidance for battery care.
