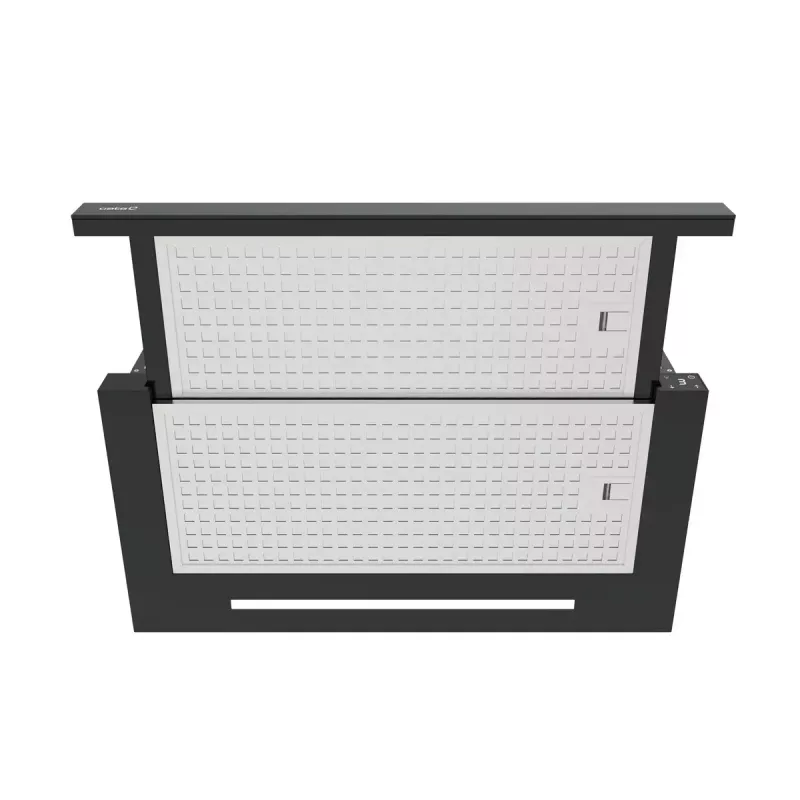

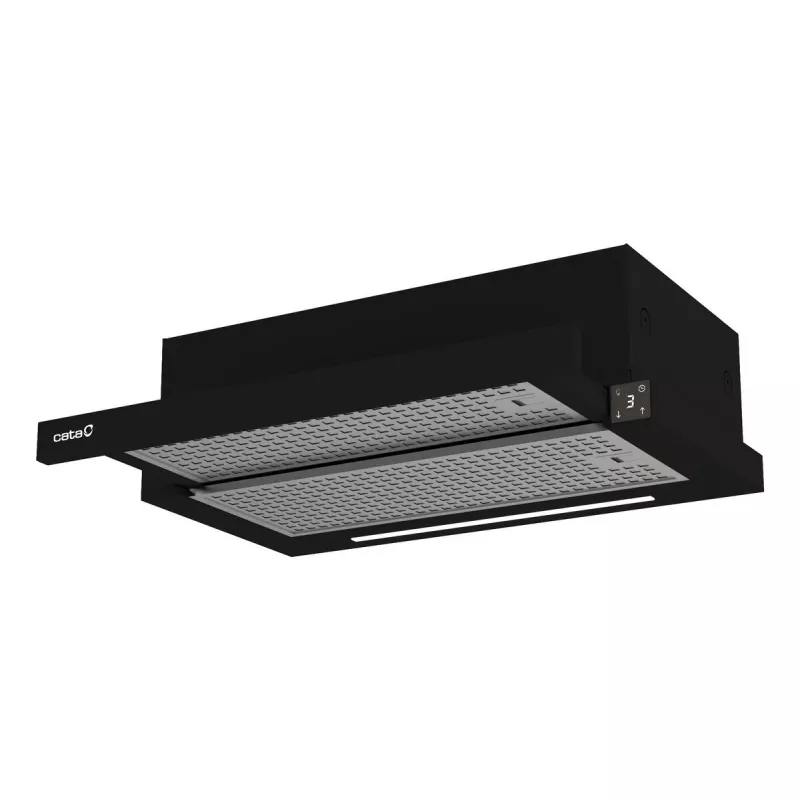

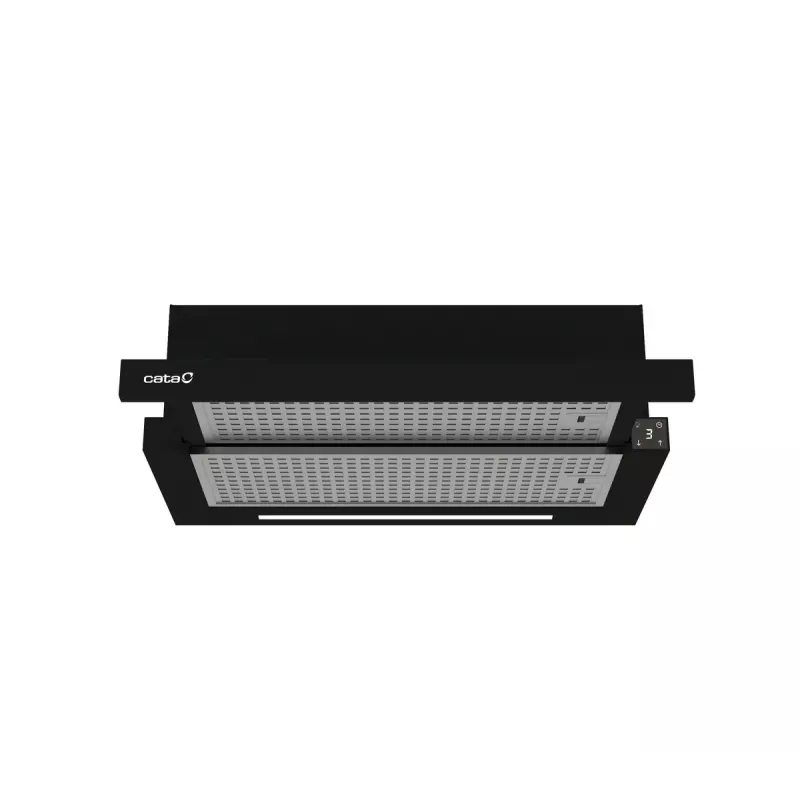

CATA TFH 6430 GBK Campana extractora semintegrada 391,5 m³/h Negro

The CATA TFH 6430 GBK is a semi built-in pull out hood in black with a maximum extraction flow of 391.5 m³/h. It supports both ducted and recirculating installation and is equipped with two aluminium grease filters and one 3 W LED light. The hood has low standby consumption and an energy efficiency classification ranging A+ (product data) within the A+++ to D scale, making it suitable for modern kitchens requiring a compact, retractable extractor.

Advantages

This pull out hood offers a high extraction rate up to 391.5 m³/h and selectable ducted or recirculating operation. It includes a booster function for intensive extraction, a charcoal filter option for recirculation, a filter saturation indicator, and a dimmer-controlled SSLED light. The unit combines aluminium grease filters for effective grease capture with a compact semi built-in design in black.

Suitable for

• Small to medium domestic kitchens where a retractable, semi built-in hood is preferred
• Kitchens that require both ducted and recirculating extraction options
• Spaces where discreet, integrated black appliances are desired

Key specifications

• Type: Semi built-in (pull out)
• Maximum extraction flow: 391.5 m³/h
• Noise level: 65 dB
• Number of speeds: 4 (plus booster)
• Grease filters: 2 aluminium
• Lighting: 1 × LED 3 W (SSLED) with dimmer
• Charcoal filter: available for recirculation
• Exhaust connection diameter: 150 mm
• Annual energy consumption: 13 kWh
• Fluid dynamic efficiency class: B
• Grease filtering efficiency class: C
• Lighting efficiency class: C
• Product colour: Black

How to use

Install the CATA TFH 6430 GBK as a semi built-in pull out hood according to the manufacturer’s installation instructions, connecting either to a 150 mm duct for external extraction or fitting the charcoal filter for recirculating mode. Pull out the front section to switch the hood on and select the required speed; use the booster for short periods of intensive extraction. Adjust the SSLED light with the dimmer to the preferred brightness and replace or clean the aluminium grease filters regularly to maintain performance.

Recommendations

For best results, clean aluminium grease filters at least monthly depending on cooking frequency, replace the charcoal filter as recommended by the manufacturer when using recirculation mode, and avoid running the booster continuously to reduce noise and energy use.
