Cerradura electromagnética SCOT EL-120 120kg (260lbs) 12V DC Fail-Safe montaje en superficie

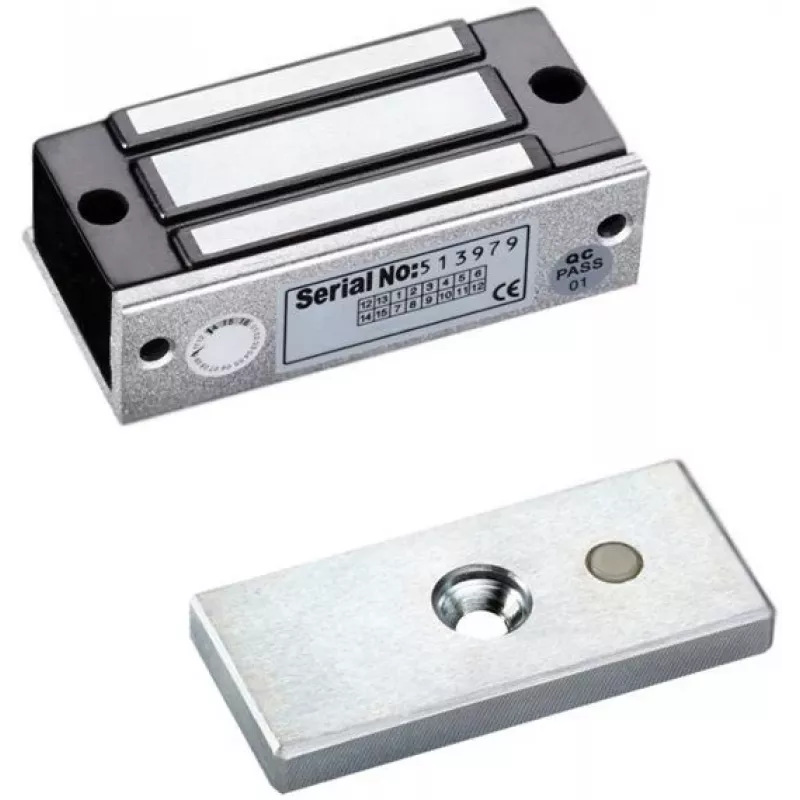

The SCOT EL-120 Electromagnetic Lock is a high-security surface-mounted maglock designed for access control systems. With a holding force of 120 kg (260 lbs), it provides reliable locking for single doors, gates, and cabinets. Operating on 12V DC with fail-safe mode (power to lock, power loss to unlock), it ensures safety in emergency situations. The anodized aluminum housing and steel armature plate offer durability and corrosion resistance, while the LED indicator confirms lock status. Suitable for indoor use, this lock is easy to install with screw terminals and includes an anchor plate and armature.

Advantages

High holding force of 120 kg ensures secure locking. Fail-safe operation allows door to open upon power loss, meeting safety standards. LED indicator provides clear visual status. Durable materials withstand 500,000 cycles. Surface mount design simplifies installation.

Suitable for

• Access control systems for offices, warehouses, and residential buildings
• Security doors, gates, and cabinets requiring electromagnetic locking
• Indoor applications where fail-safe locking is required

Key specifications

• Holding Force: 120 kg (260 lbs)
• Operating Voltage: 12V DC
• Current Consumption: 300 mA
• Lock Type: Electromagnetic (Maglock)
• Operation Mode: Fail-Safe (Power to lock, power loss to unlock)
• Mounting Type: Surface Mount
• Housing Material: Anodized Aluminum
• Armature Plate Material: Steel
• LED Indicator: Yes
• Operating Temperature Range: -10°C to +55°C
• Humidity Range: 0-95% (non-condensing)
• Door Compatibility: Single door, inward/outward opening
• Application: Access control systems, security doors, gates, cabinets
• Armature Plate Dimensions (L x W x H): 130 x 33 x 9 mm
• Durability Rating: 500,000 cycles
• Installation Environment: Indoor
• Cable Connection: Screw terminals

Recommendations

For optimal performance, pair with a compatible access control system and ensure proper power supply. Suitable for indoor use only; avoid exposure to moisture or extreme temperatures.
