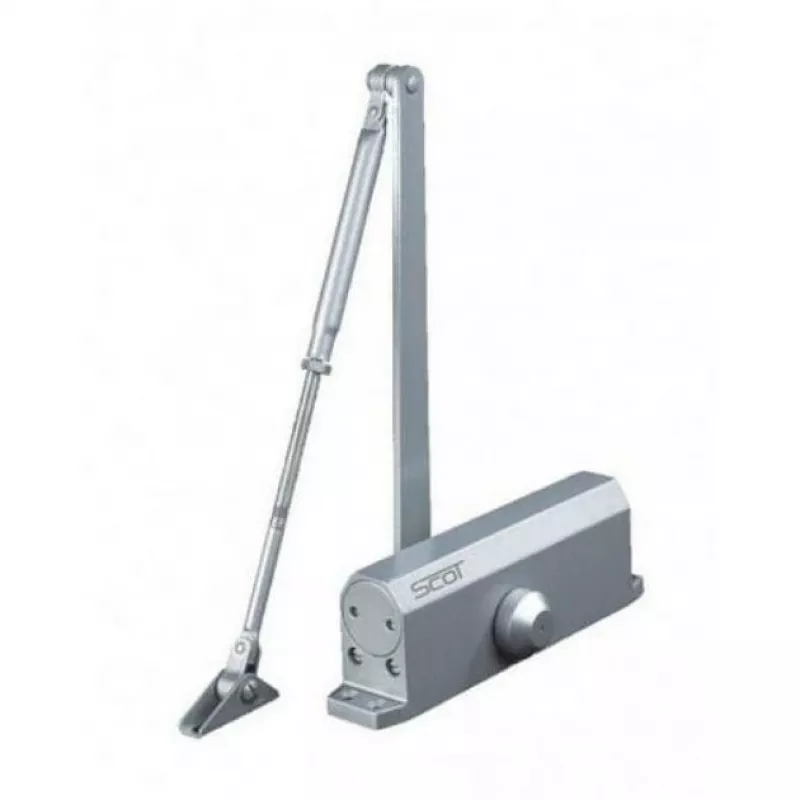

SCOT DC-30 Cierrapuertas para puertas de 80-100 kg, ajustable EN 3-5, plata

A heavy door that slams shut or refuses to close properly is more than a nuisance—it is a safety risk in busy spaces. The SCOT DC-30 overhead door closer tackles this challenge with dependable hydraulic control engineered for doors weighing between 80 and 100 kg. With an adjustable closing force that meets EN 3, EN 4, and EN 5 standards, this closer adapts to your specific door dimensions and traffic demands, ensuring a smooth, controlled motion every time.

Who is it for

The DC-30 is perfect for commercial and residential installations where doors are substantial, such as office entrances, shop fronts, storerooms, or utility rooms. It is also a solid choice for fire doors that must close reliably to comply with safety regulations. Whether you are upgrading an existing closer or installing new hardware, this unit gives you the flexibility and strength to handle demanding environments.

Main features

• Adjustable closing force – EN 3, EN 4, and EN 5, so you can fine-tune the power to suit door weight and usage.
• Adjustable closing speed (180°–15°) and latching speed (15°–0°) for precise cycle control.
• Adjustable backcheck (70°–180°) protects walls and adjacent structures from damage.
• Adjustable delayed action (180°–70°) allows time for access, especially useful for elderly or disabled users.
• Fire-rated to EN 1634-1 – suitable for use on fire door assemblies.
• Non-handed universal design – installs on left or right hinges without any extra parts.
• Versatile mounting: standard, parallel arm, or top jamb configurations.
• Robust cast aluminum body and steel arm for long-lasting reliability.

Specifications

• Type: Overhead door closer
• EN classification: EN 1154 (EN 3/4/5)
• Maximum door weight: 100 kg
• Maximum door width: 1250 mm
• Adjustable closing speed: Yes (180°–15°)
• Adjustable latching speed: Yes (15°–0°)
• Adjustable backcheck: Yes (70°–180°)
• Adjustable delayed action: Yes (180°–70°)
• Maximum opening angle: 180°
• Body material: Cast aluminum
• Arm material: Steel
• Finish: Silver
• Handing: Non-handed (universal)
• Mounting options: Standard, parallel arm, top jamb
• Operating temperature range: -20°C to +45°C
• Certifications: CE, EN 1154

Tips

Proper installation is key to optimal performance. Always follow the included template for alignment and ensure the door frame is sufficiently sturdy. Adjust the speed, latch, backcheck, and delayed action valves in small increments and test the motion until the door moves smoothly without slamming. Regular cleaning of the arm and pivot points will extend the service life. For fire-rated installations, verify local codes and ensure the closer is configured correctly.
