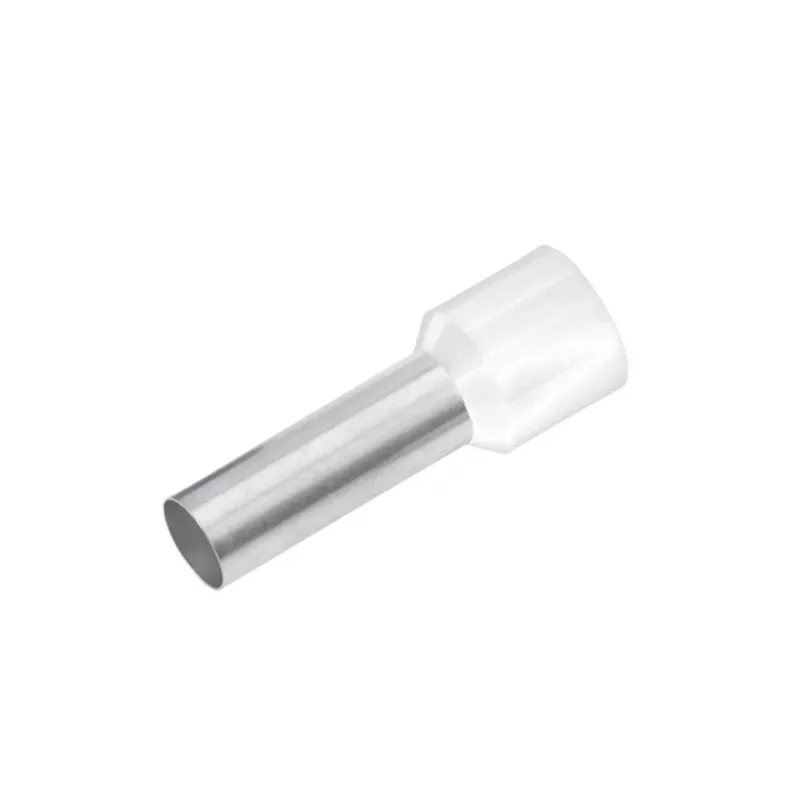

Cimco 187002 Terminal tubular parcialmente aislado, 0,5 mm², blanco, 100 uds.

With a 0.5 mm² cross-section and a white polypropylene insulation collar, this Cimco wire end ferrule is built for reliable crimp connections on stranded copper conductors. The tin-plated electrolytic copper tube ensures low contact resistance and excellent corrosion protection.

Overview

The Cimco 187002 is a partially insulated wire end ferrule designed for terminating fine-stranded copper conductors. The metal tube has a length of 8 mm, while the total length including the insulation collar is 14 mm. The inner diameter of the metal tube is approximately 1.2 mm, and the outer diameter of the insulation collar is approximately 2.5 mm. The ferrule is suitable for conductor cross-sections of 0.5 mm² and is supplied in a pack of 100 pieces.

What stands out

• Partially insulated design with white polypropylene collar for easy identification
• Tin-plated electrolytic copper for superior conductivity and corrosion resistance
• Complies with DIN 46228 Part 4 for consistent dimensions and performance
• Halogen-free insulation for safer disposal and reduced toxic emissions
• Wide operating temperature range from -40°C to +105°C

Technical details

• Wire cross-section: 0.5 mm²
• Insulation type: Partially insulated
• Insulation colour: White
• Quantity per pack: 100 pieces
• Ferrule material: Electrolytic copper
• Surface treatment: Tin-plated
• Insulation material: Polypropylene (PP)
• Connection method: Crimp
• Application: For stranded conductors
• Standard compliance: DIN 46228 Part 4
• Temperature range: -40°C to +105°C
• Voltage rating: Up to 600 V
• Metal tube length: 8 mm
• Total length: 14 mm
• Inner diameter (metal tube): Approx. 1.2 mm
• Outer diameter (insulation collar): Approx. 2.5 mm
• Conductor material compatibility: Copper
• Halogen-free: Yes
• RoHS compliant: Yes

Our verdict

A dependable choice for professional electrical work, offering precise crimping and durable performance in a convenient 100-piece pack.
