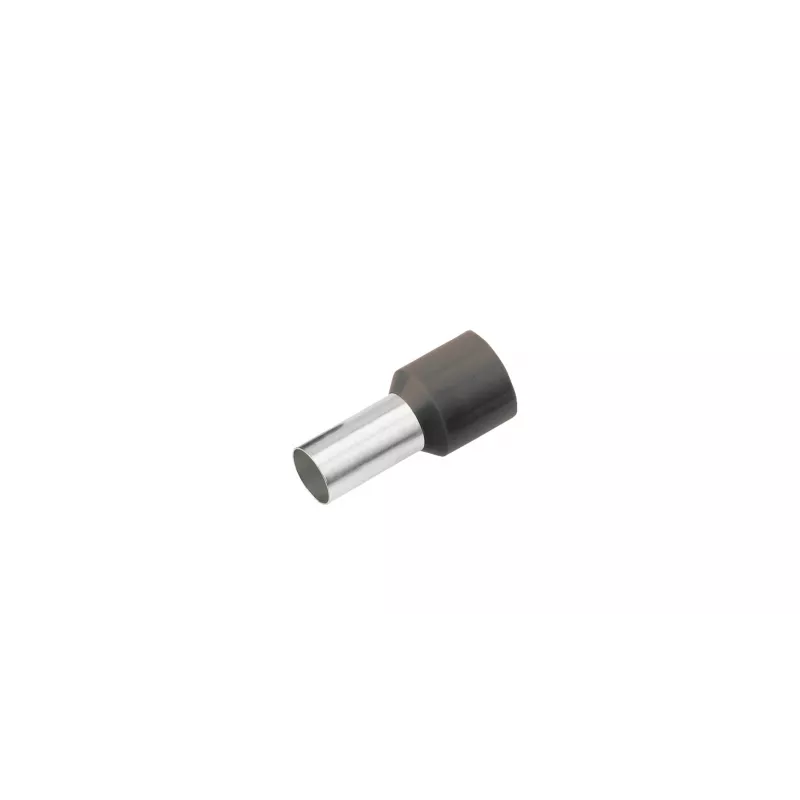

Cimco 187118 Terminal tubular semiaislado, 1,5 mm², negro, 100 uds.

When terminating fine-stranded conductors, the strands can splay or break under screw pressure, leading to poor electrical contact and potential failure. The Cimco 187118 wire ferrule solves this by providing a reliable, gas-tight connection for 1.5 mm² conductors. Its funnel-shaped entry simplifies insertion of fine and super-fine stranded wires, while the tin-plated electrolytic copper sleeve ensures excellent conductivity and corrosion resistance. The black polypropylene insulation collar offers partial insulation, protecting against accidental contact while allowing visual inspection of the crimp. Supplied in a pack of 100, these ferrules are suitable for industrial control panels, building installation, and machinery wiring.

Who is it for

Electricians, panel builders, and maintenance technicians who require consistent, high-quality terminations for fine-stranded conductors in demanding environments.

Main features

• Conductor cross-section: 1.5 mm²
• Partially insulated with black polypropylene collar
• Tin-plated electrolytic copper sleeve for low contact resistance
• Funnel-shaped entry for easy insertion of fine and super-fine stranded conductors
• Pack of 100 pieces

Specifications

• Conductor cross-section: 1.5 mm²
• Insulation type: partially insulated
• Colour: black
• Sleeve material: electrolytic copper, tin-plated
• Insulation material: polypropylene (PP)
• Standard: DIN 46228 Part 4
• Sleeve length (metal part): 8 mm
• Total length: 14 mm
• Temperature range: -40°C to +105°C
• Halogen-free: yes
• RoHS compliant: yes
• Conductor type compatibility: fine-stranded and super fine-stranded conductors
• Entry design: funnel-shaped
• Ferrule type: single wire

Tips

Use a crimping tool with the appropriate die size for 1.5 mm² ferrules to achieve a reliable, gas-tight crimp. Ensure the stripped conductor length matches the ferrule sleeve length to avoid exposed strands or insulation in the crimp zone.
