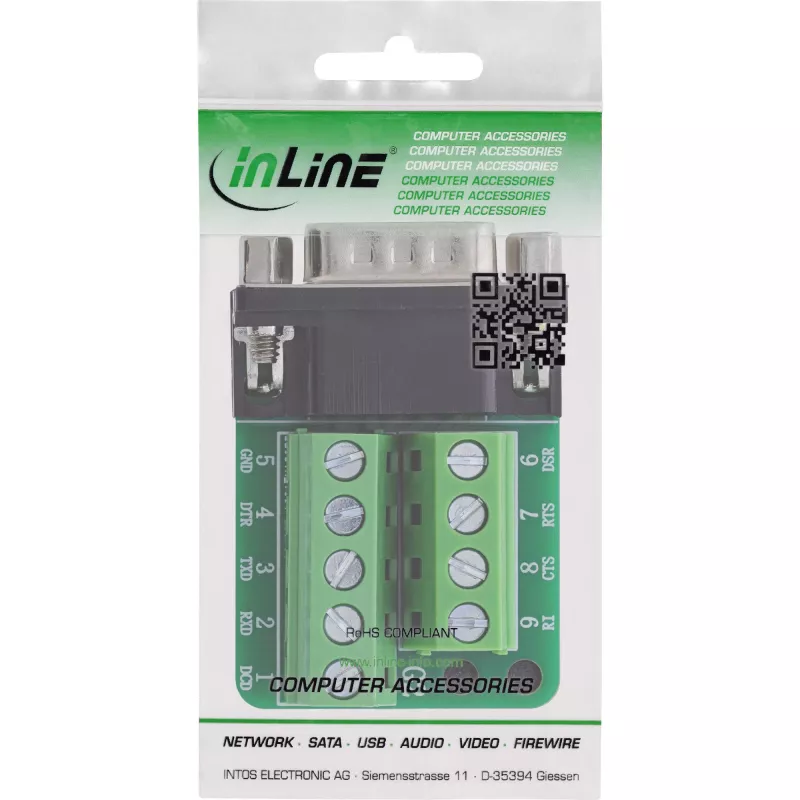

InLine 92501F Conector de cables bloque de terminales / D-Sub 9 negro, verde

Time savings during installation:Quick wiring via screw terminals for 12–22 AWG – tool-assisted with flat-head screwdriver ≤ 2.5 mm.
Stable connection thanks to screw lock:The D-Sub-9 plug is equipped with an integrated screw lock and ensures a secure mechanical connection to the matching socket – even in the event of vibration or movement.
Versatile use in industry:Ideal for automation, machine and plant engineering, control cabinet installations, and mobile test and service applications.
Compact, 2-row design: Measuring 45.5 × 31 × 16 mm, the terminal block offers a space-saving arrangement – especially in dense wiring of Sub-D interfaces.
High signal quality:An insulation resistance of ≥ 10 MΩ at 300 V DC and a rated current of 1 A per pin ensure reliable signal transmission – even in continuous industrial use.

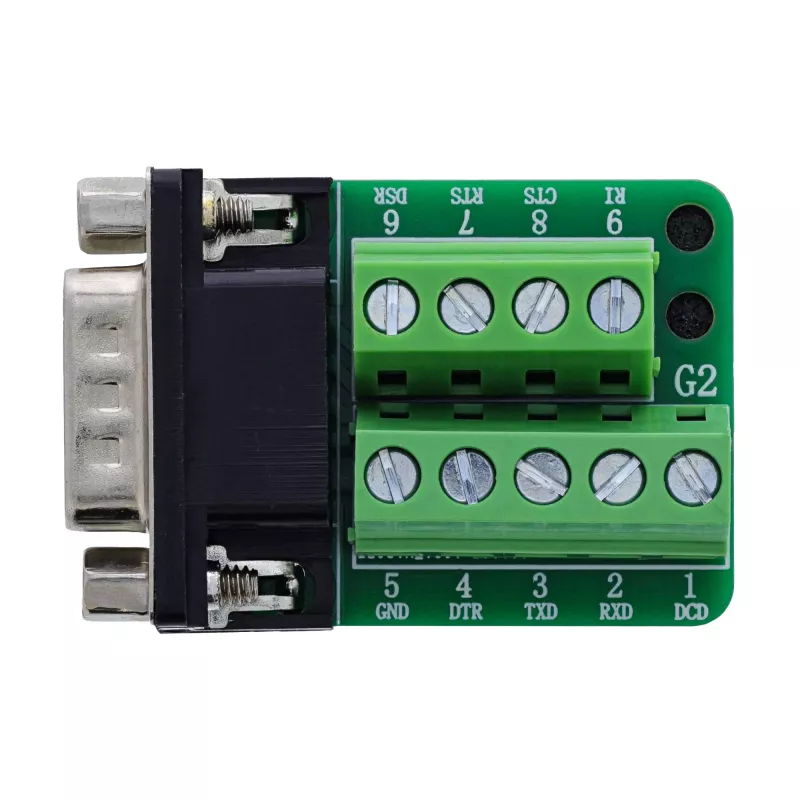

The InLine® terminal block with D-Sub 9 connector in a 2-row design was developed for demanding industrial applications where space requirements and reliable wiring are equally important. Single wires in the range of 12–22 AWG can be securely connected via the screw terminals with a 5.0 mm grid dimension. Installation is carried out using a standard flat-blade screwdriver ≤ 2.5 mm.
The screw lock on the D-Sub connector ensures a stable connection to the mating socket – even with vibration or frequent unplugging. An EVA insulating layer on the underside provides additional protection when mounting on conductive surfaces. This makes the connection block ideal for control cabinet construction, mobile test setups, or compact device installations.

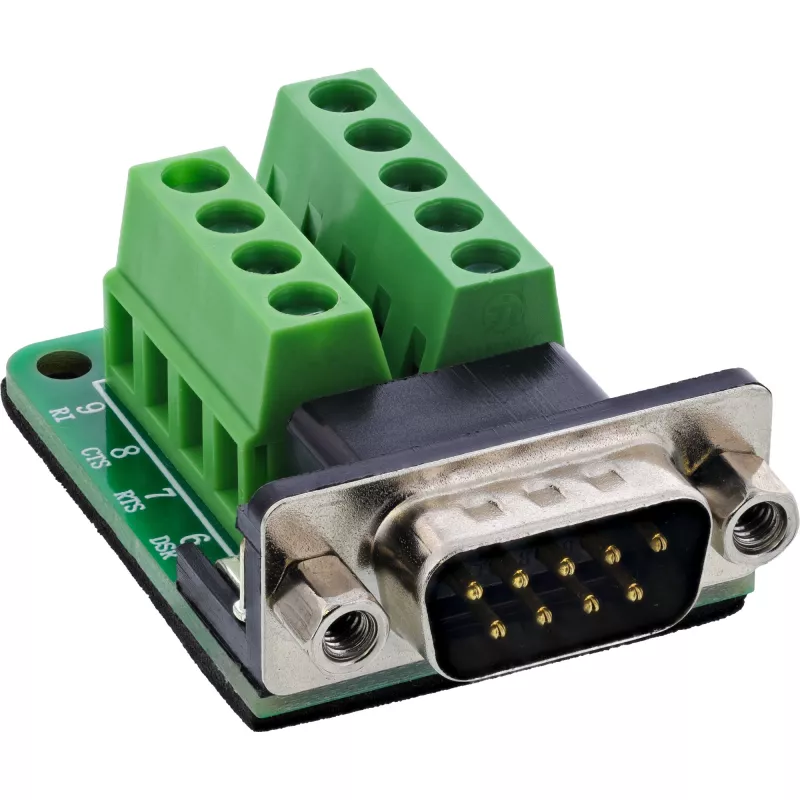

D-Sub 9 connector:2-row, with integrated screw lock
Connection technology:Screw terminal, grid dimension 5.0 mm
Connection range:12–22 AWG
Actuation:With flat-blade screwdriver ≤ 2.5 mm
Rated current: 1 A per pin
Max. operating voltage:100 V between two signals
Insulation resistance:≥ 10 MΩ @ 300 V DC
Operating temperature:–10°C to +70°C
Insulation layer:EVA insulation on underside
Dimensions:approx. 46 × 31 × 18 mm (L × W × H)

InLine 92501F. Connector(s): Terminal block / D-Sub 9, Product colour: Black, Green, Connector gender: Male/Female. Compliance certificates: RoHS, TÜV mark. Dimensions (WxDxH): 31 x 46 x 18 mm, Weight: 22 g, Width: 31 mm. Quantity per pack: 1 pc(s), Package width: 100 mm, Package depth: 165 mm. Country of origin: Taiwan
