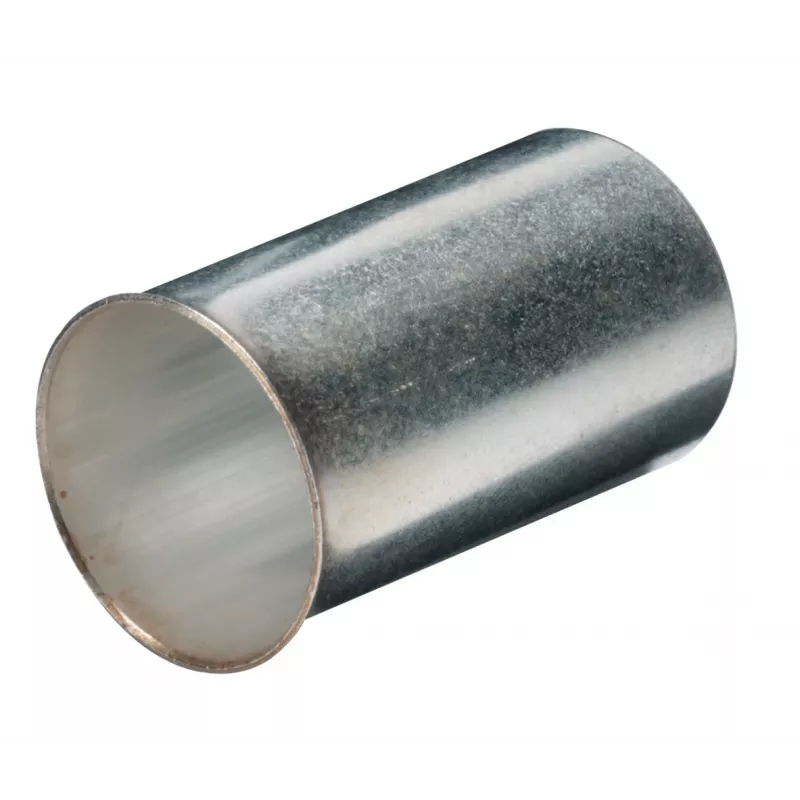

Cimco 187400 Terminal tubular sin aislar 0,25 mm² estañado, 1000 uds.

Wire end ferrule for reliable crimp connections in professional electrical installations. The uninsulated design with tin-plated surface ensures high corrosion resistance and excellent electrical conductivity.

Advantages

Made from electrolytic copper (E-Cu) with tin plating, these ferrules offer superior conductivity and protection against oxidation. The crimp connection method provides a secure, gas-tight joint for fine-stranded and super fine-stranded copper conductors.

Suitable for

• Control cabinet wiring
• Machinery wiring
• Professional electrical installations

Key specifications

• Nominal cross-section: 0.25 mm²
• Ferrule length: 6 mm
• Material: Electrolytic copper (E-Cu), tin-plated
• Standard: DIN 46228 Part 1
• Temperature range: -40°C to +120°C
• Pack quantity: 1000 pieces

Recommendations

Use with a suitable crimping tool for wire end ferrules to achieve a reliable connection. Ideal for applications requiring high corrosion resistance and consistent performance.
