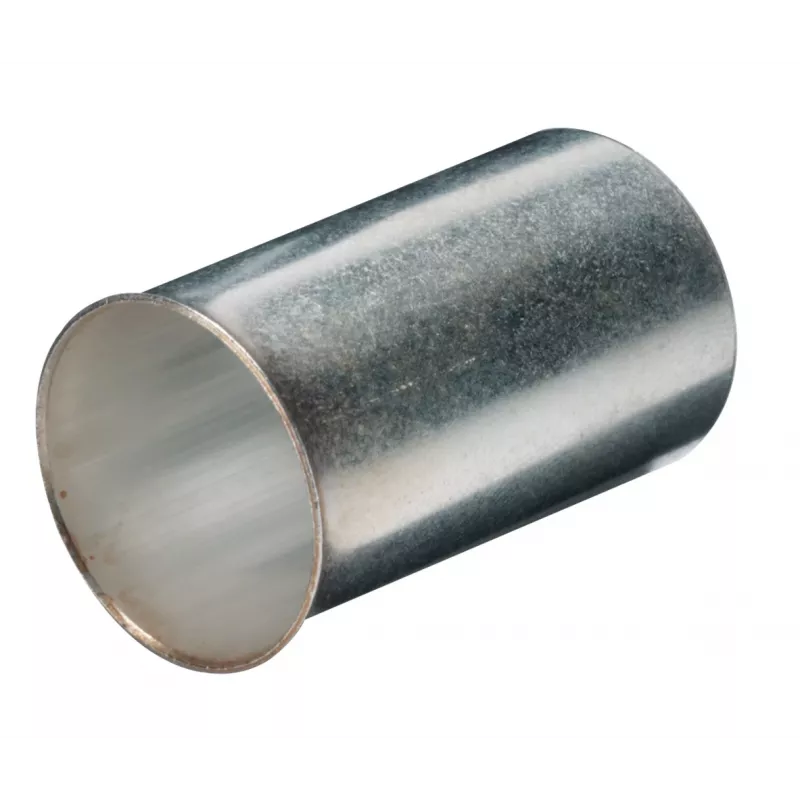

Cimco 187474 Terminal tubular 95 mm² cobre sin aislar estañado 25 uds.

For terminating stranded copper conductors up to 95 mm², this uninsulated wire end ferrule from Cimco offers a reliable, gas-tight connection when crimped with a hexagonal or square die. The tinned surface provides corrosion resistance and ensures a durable electrical contact in demanding installations.

Highlights

• Uninsulated sleeve for direct crimping in compact terminal spaces
• Electrolytic copper with galvanic tin plating for low contact resistance
• Complies with DIN 46228 Part 1 for consistent dimensions and performance
• Pack of 25 pieces for professional use

In daily use

These ferrules are intended for terminating fine-stranded copper conductors in electrical installations, control cabinets, and industrial machinery. The 95 mm² cross-section suits high-current applications where a secure, vibration-resistant connection is essential. The tinned surface prevents oxidation and simplifies soldering if required.

Full specifications

• Product type: Wire end ferrule
• Conductor cross-section: 95 mm²
• Insulation: Uninsulated
• Material: Electrolytic copper, tinned
• Overall length: 32 mm
• Sleeve length: 22 mm
• Inner diameter: 13.5 mm
• Outer diameter: 15.5 mm
• Pack quantity: 25 pieces
• Standard: DIN 46228 Part 1
• Temperature range: -40°C to +125°C
• Crimping type: Hexagonal or square
• RoHS compliant: Yes

Final note

A dependable choice for professional electricians who need a secure, corrosion-resistant termination for large conductors.
