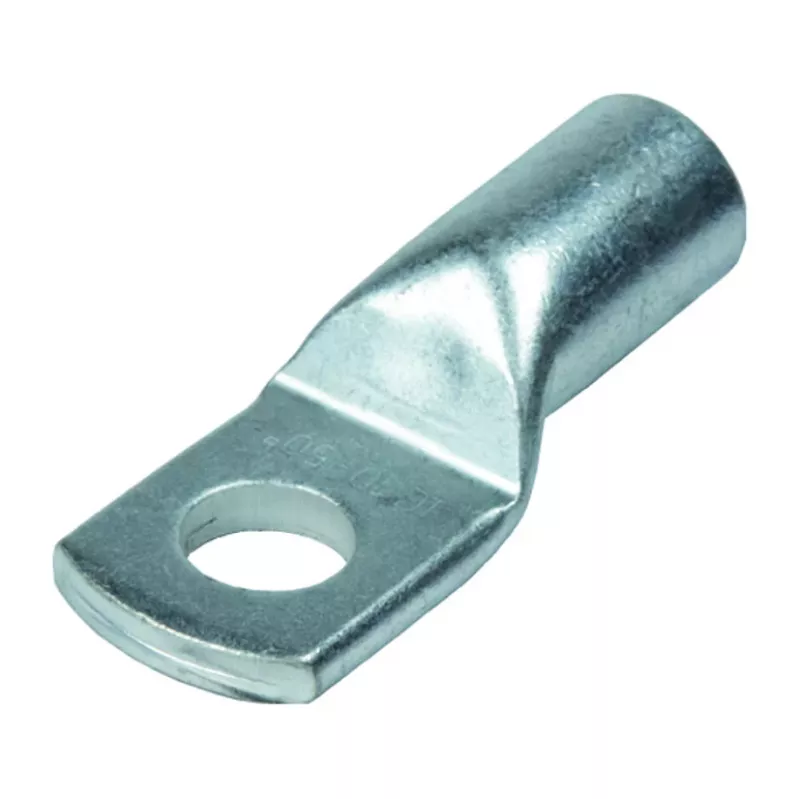

Intercable ICR12010 Terminal tubular 120 mm² M10 estañado serie R

The Intercable ICR12010 tubular cable lug stands apart from typical alternatives through its seamless construction and high-purity electrolytic copper, delivering superior conductivity and mechanical strength for demanding electrical connections. Engineered for 120 mm² conductors with an M10 bolt hole, this lug is tin-plated to resist corrosion and ensure long-term reliability in power distribution, control panels, and grounding applications.

Highlights

• Seamless tube design eliminates weak points, ensuring uniform crimping and maximum pull-out resistance.
• Made from >99.9% pure electrolytic copper for excellent electrical conductivity.
• Tin-plated surface provides outstanding corrosion protection, even in harsh environments.
• Compliant with DIN 46235, guaranteeing dimensional accuracy and compatibility with standard tools.
• Wide operating temperature range from -50°C to +150°C, suitable for extreme conditions.
• Rated for voltages up to 1000 V, making it ideal for low-voltage power systems.
• RoHS compliant, meeting environmental standards.

In daily use

Designed for professional electricians and panel builders, the ICR12010 simplifies cable termination. Its standard entry accepts 120 mm² copper conductors, and the M10 stud hole fits common busbar and breaker connections. The tin plating reduces oxidation, maintaining low contact resistance over time. Whether used in industrial machinery, renewable energy systems, or building infrastructure, this lug delivers consistent performance and easy installation with standard crimping tools.

Full specifications

• Cable cross-section: 120 mm²
• Bolt hole diameter: M10 (10 mm)
• Lug type: Tubular cable lug
• Material: Electrolytic copper (E-Cu)
• Surface treatment: Tin-plated
• Series: R-Series
• Connection method: Crimp
• Conductor compatibility: Copper (Cu)
• Insulation: Uninsulated
• Manufacturing standard: DIN 46235
• Design: Seamless tube
• Temperature range: -50°C to +150°C
• Voltage rating: Up to 1000 V
• Corrosion protection: Excellent (tin plating)
• Material purity: >99.9% electrolytic copper
• RoHS compliance: Yes
• Application: Power distribution, control panels, grounding
• Entry type: Standard
• Electrolytic conductivity: High
• Durability: High resistance to vibration and pull-out forces

Final note

For reliable, long-lasting electrical connections, the Intercable ICR12010 tubular cable lug offers the quality and performance professionals demand. Its seamless, tin-plated copper construction ensures secure crimping and excellent conductivity in any application.
