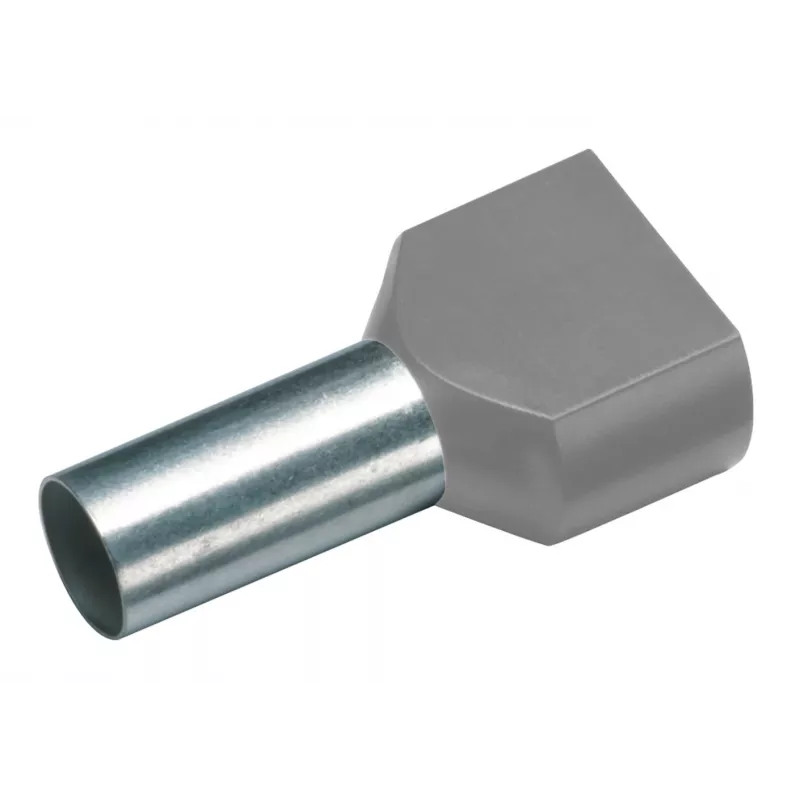

Cimco 187704 Terminal tubular doble 0,75 mm² semiaislado gris (100 uds.)

This twin wire ferrule from Cimco is engineered for secure and reliable connections when terminating two fine-stranded conductors. Unlike standard single wire ferrules, this model features a twin design that accommodates two 0.75 mm² wires in one barrel, simplifying wiring in tight spaces and ensuring a uniform, gas-tight crimp.

Highlights

• Partially insulated with grey polypropylene sleeve for easy identification and protection
• Tin-plated electrolytic copper ferrule for excellent conductivity and corrosion resistance
• Complies with DIN 46228 Part 4 for twin wire ferrules
• Halogen-free insulation for safer use in confined environments
• Supplied in a pack of 100 pieces

In daily use

The ferrule's 8 mm metal barrel and 14 mm total length provide ample insertion depth for most terminal blocks. Its grey colour coding corresponds to the 0.75 mm² cross-section, making it easy to select the correct size at a glance. The polypropylene insulation is resistant to temperatures from -40°C to +105°C, ensuring performance in demanding industrial applications.

Full specifications

• Product type: Twin Wire Ferrule
• Nominal cross-section: 0.75 mm²
• Wire capacity: 2 x 0.75 mm²
• Insulation type: Partially insulated
• Colour: Grey
• Ferrule material: Electrolytic copper, tin-plated
• Insulation material: Polypropylene (PP)
• Ferrule length (metal part): 8 mm
• Total length (with insulation): 14 mm
• Inner diameter (ferrule): 1.5 mm
• Outer diameter (ferrule): 1.8 mm
• Flange diameter (insulation): 3.0 mm
• Temperature range: -40°C to +105°C
• Standard compliance: DIN 46228 Part 4
• Halogen-free: Yes
• Packaging unit: 100 pieces

Final note

A reliable choice for professional electricians and panel builders who need consistent, high-quality terminations for twin conductors.
