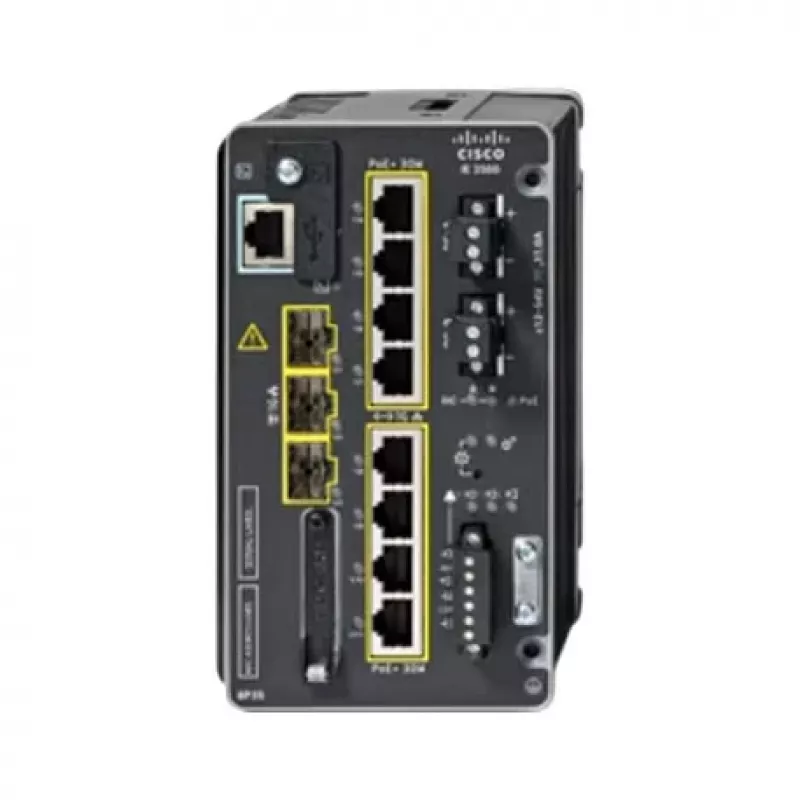

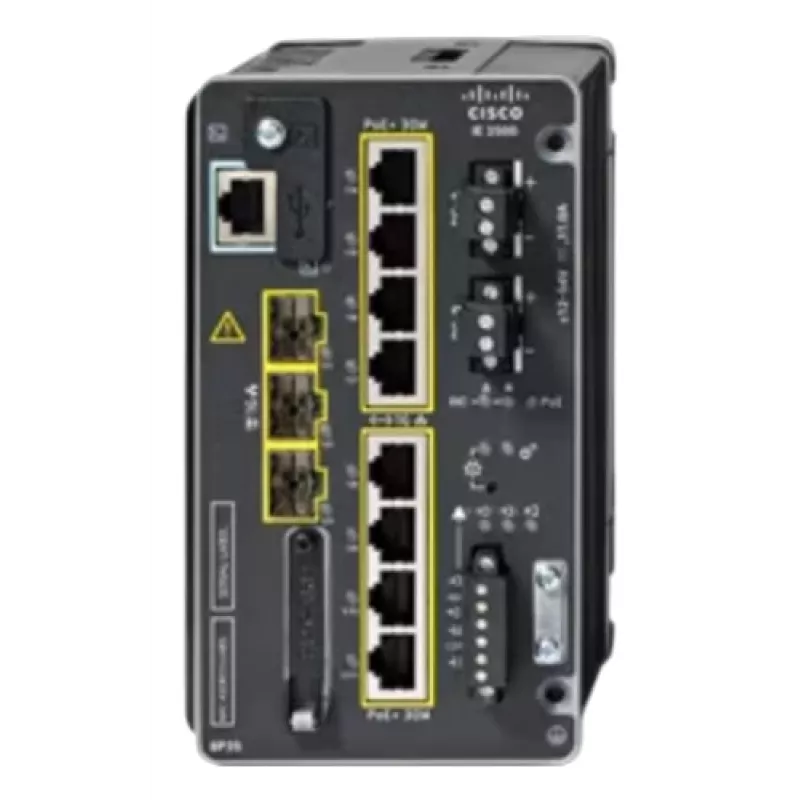

CISCO IE-3500-8P3S-A Switch Industrial Gestionado, 8 GE PoE+ y 3 GE SFP Modular, NA

The Cisco IE-3500-8P3S-A is a rugged, managed industrial Ethernet switch designed for harsh environments. It features 8 Gigabit Ethernet PoE+ ports and 3 Gigabit SFP uplink slots, providing reliable connectivity and power for industrial automation, surveillance, and smart grid applications. With a wide operating temperature range and IP30 protection, this switch ensures continuous operation in demanding conditions.

Advantages

Delivers high-performance switching with a 22 Gbps switching capacity and 16.37 Mpps forwarding rate. Supports PoE+ with a 240W power budget to power IP cameras, wireless access points, and other devices. Dual redundant power inputs (24-54 VDC) enhance reliability. Advanced security features including 802.1X, ACLs, and DHCP snooping protect your network.

Suitable for

• Industrial automation and control systems
• Outdoor and extreme temperature environments
• Transportation and utility networks
• Security and surveillance installations

Key specifications

• 8 x 10/100/1000Base-T PoE+ ports (IEEE 802.3at)
• 3 x 100/1000Base-X SFP uplink slots
• Switching capacity: 22 Gbps
• Forwarding rate: 16.37 Mpps
• PoE power budget: 240W
• Operating temperature: -40°C to 75°C
• IP30 rated metal enclosure
• DIN rail and wall mountable
• Dual redundant 24-54 VDC power input
• Cisco IOS XE LAN Base software

Recommendations

For optimal performance, use Cisco SFP modules and ensure proper ventilation. This switch is ideal for mission-critical networks requiring high availability and security.
