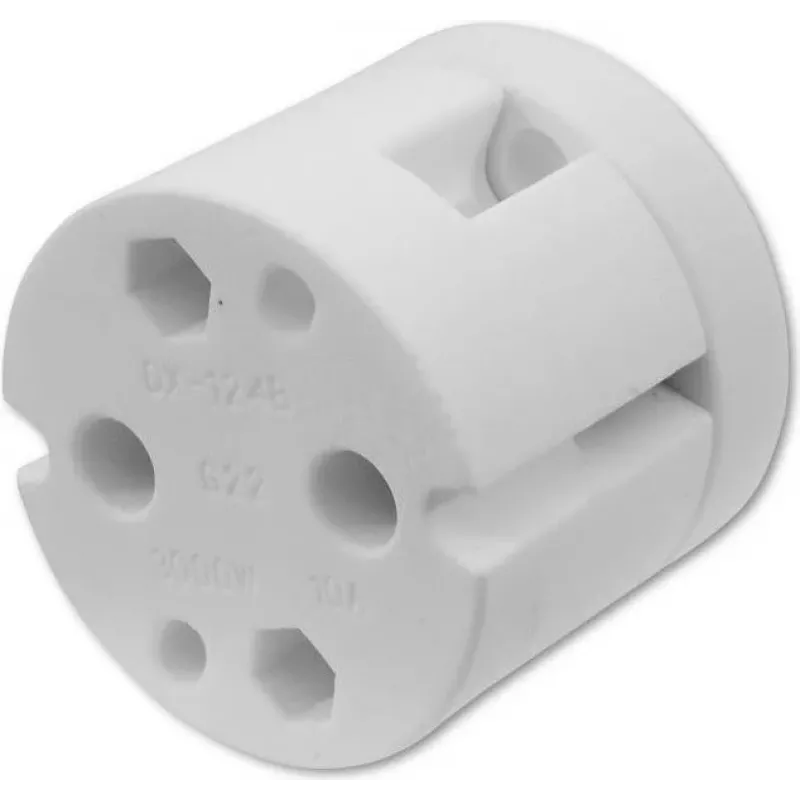

OMNILUX DX-124B portalámparas G22 para iluminación de escenario y estudio 9450045C

Professional lighting technicians and stage crews rely on the OMNILUX DX-124B socket when building or repairing high-output luminaires that use G22 base lamps. This ceramic socket is a direct replacement for worn or heat-damaged holders in moving heads, follow spots, and studio fixtures.

Key specifications

• Lamp base compatibility: G22
• Material: Ceramic
• Maximum voltage: 250 V
• Maximum current: 25 A
• Maximum power: 5000 W
• Connection: Screw terminals
• Mounting: Screw mounting
• Colour: White
• Number of poles: 2-pole

Why choose it

The ceramic body withstands the intense heat generated by high-wattage lamps, while the screw terminals ensure a secure electrical connection even under vibration. Its high dielectric strength provides reliable insulation in demanding professional environments.

Ideal use cases

• Replacing sockets in stage spotlights and moving heads
• Building custom studio lighting fixtures
• Maintaining rental inventory of professional luminaires

Good to know

Designed for screw mounting, this socket integrates easily into existing fixtures. Always verify lamp base type before ordering.
