Citizen CBM 920 II impresora matricial de recibos - monocromo, RS-232 serie, papel de 58 mm, negro

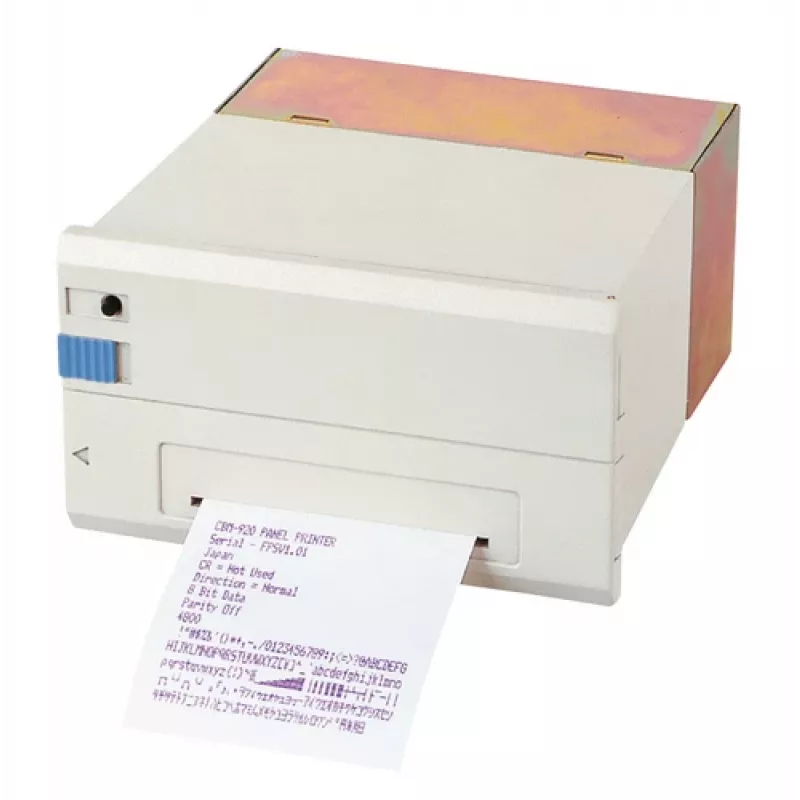

The Citizen CBM 920 II is a reliable and compact dot matrix receipt printer designed for high-volume retail and hospitality environments. With its monochrome printing capability and support for 58mm paper rolls, it delivers clear, durable receipts at speeds up to 1.8 lines per second (40 columns). The printer features an RS-232 serial interface for easy integration with existing POS systems and supports multiple character sets and barcode symbologies.

Advantages

Built with a robust print head rated for 50 million characters and an MCBF of 5 million lines, the CBM 920 II ensures long-lasting performance. Its compact design saves counter space, while the manual tear bar cutter simplifies receipt handling. The printer is ESC/POS compatible, making it a versatile choice for various software environments.

Suitable for

• Retail point-of-sale (POS) systems
• Hospitality and restaurant order printing
• Ticket and label printing applications
• Self-service kiosks and vending machines

Key specifications

• Print Technology: Dot Matrix
• Print Color: Monochrome
• Print Speed: Up to 1.8 lines/sec (40 columns) / 2.5 lines/sec (30 columns)
• Paper Width: 58 mm (2.28 inches)
• Max Paper Roll Diameter: 83 mm
• Interface: RS-232 Serial
• Data Buffer: 4 KB
• Character Sets: PC437, PC850, PC852, PC858, PC860, PC863, PC865, WPC1252
• Barcode Support: EAN-13, EAN-8, UPC-A, UPC-E, CODE 39, CODE 93, CODE 128, ITF, CODABAR
• Emulation: ESC/POS compatible
• Print Head Life: 50 million characters
• MCBF: 5 million lines
• Power Supply: External, 24V DC
• Power Consumption: Approx. 1.5A (printing)
• Operating Temperature: 0°C to 45°C
• Operating Humidity: 10% to 90% RH (non-condensing)
• Cutter Type: Manual tear bar
• Color: Black

Recommendations

For optimal performance, use high-quality 58mm thermal paper rolls. Ensure the RS-232 serial cable is properly shielded to avoid data transmission errors. Regularly clean the print head to extend its lifespan.
