CLAGE Calentador de agua instantáneo 3,5kW Listo para enchufar 230V Hidráulico M3

The CLAGE M3 is a compact, hydraulic instantaneous water heater designed for point-of-use applications such as hand wash basins and guest toilets. With a power rating of 3.5 kW and a plug-in connection (Schuko), it offers quick and efficient hot water supply without the need for complex electrical installation. The hydraulic control system ensures reliable operation, activating the heating elements only when water flows.

Advantages

Space-saving design fits under the sink or on the wall. Easy installation with pre-wired Schuko plug. Energy-efficient operation with energy efficiency class A. Durable bare wire heating system. Suitable for low-flow applications with minimum activation flow of 1.5 l/min.

Suitable for

• Hand wash basins in bathrooms
• Guest toilets and small kitchens
• Remote or secondary water points
• Renovation projects where separate hot water supply is needed

Key specifications

• Power: 3.5 kW
• Voltage: 230 V
• Current: 15.2 A
• Control: Hydraulic
• Energy efficiency class: A
• Water connection: G 3/8"
• Min. flow rate for activation: 1.5 l/min
• Max. flow rate (at 25K rise): 2.0 l/min
• Temperature rise: approx. 25 K at 2.0 l/min
• Protection class: IP24
• Permissible operating pressure: 1-10 bar
• Heating system: Bare wire

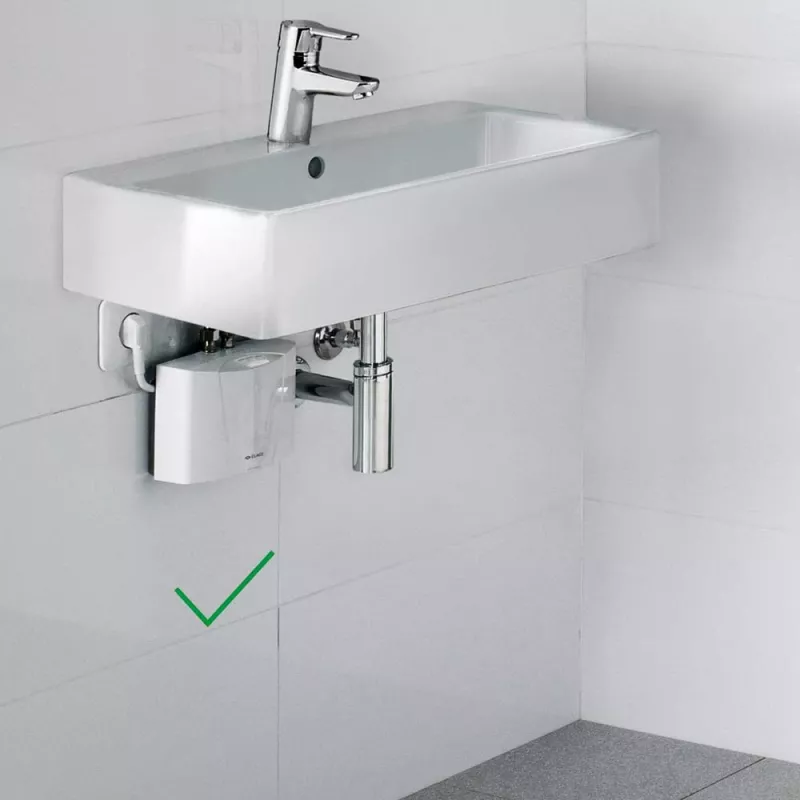

• Installation: Under-sink, wall-mounted
• Electrical connection: Plug-in (Schuko)
• Cable length: approx. 70 cm
• Colour: White

Recommendations

For best performance, ensure the water pressure is within 1-10 bar and the flow rate is at least 1.5 l/min. This heater is not suitable for whole-house applications. Professional installation is recommended.
