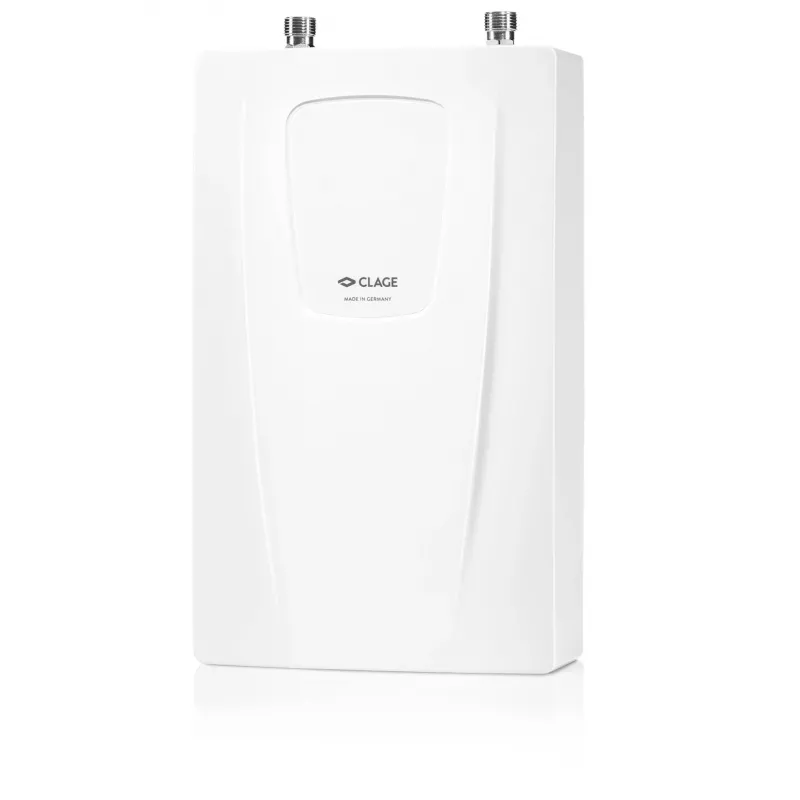

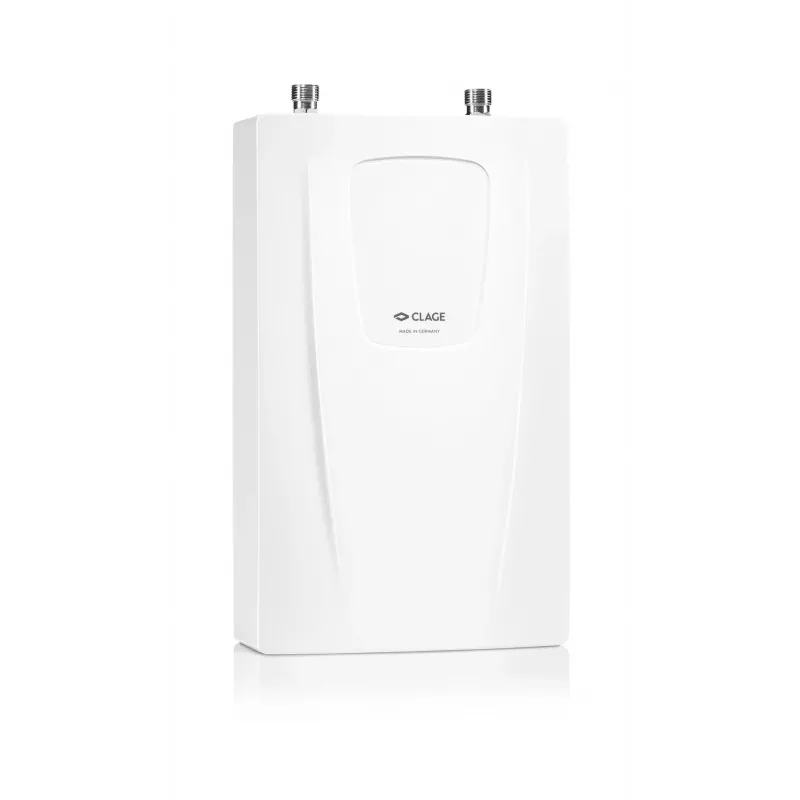

CLAGE CDX11-U Basitronic Calentador de agua instantáneo 11kW 400V 3 Fases Blanco

The CLAGE CDX11-U Basitronic is a compact, electronic instantaneous water heater designed for under-sink installation. With 11 kW power output and 3-phase 400V connection, it provides hot water on demand for a single tap point, such as a kitchen sink or washbasin. The Basitronic control ensures precise temperature regulation and energy-efficient operation.

Advantages

Energy efficiency class A, compact dimensions (294x180x110 mm), splash-proof IP24 protection, and electronic safety features including air bubble detection and overheating protection. The bare wire heating system (IWS) ensures high efficiency and long service life.

Suitable for

• Under-sink installation in kitchens or bathrooms
• Single tap point hot water supply
• Replacement of old storage water heaters
• New builds or renovations requiring space-saving solutions

Key specifications

• Power: 11 kW
• Voltage: 400 V (3-phase)
• Rated current: 16 A
• Energy efficiency class: A
• Control: Electronic (Basitronic)
• Temperature setting: Fixed approx. 50°C (internally adjustable)
• Max. flow rate at 38°C: approx. 5.0 l/min
• Min. flow rate for activation: 2.0 l/min
• Max. operating pressure: 1 MPa (10 bar)
• Water connection: G 3/8"
• Protection class: IP24
• Dimensions (HxWxD): 294 x 180 x 110 mm
• Weight: 3.7 kg
• Colour: White
• Standby power consumption: < 0.5 W

Recommendations

For optimal performance, ensure proper electrical installation by a qualified electrician. The water heater is suitable for use with standard plumbing fittings. Regular maintenance is not required, but periodic checks of the safety features are recommended.
