CLAGE CEX-U ELECTRONIC MPS Calentador de agua instantáneo 2400-26413

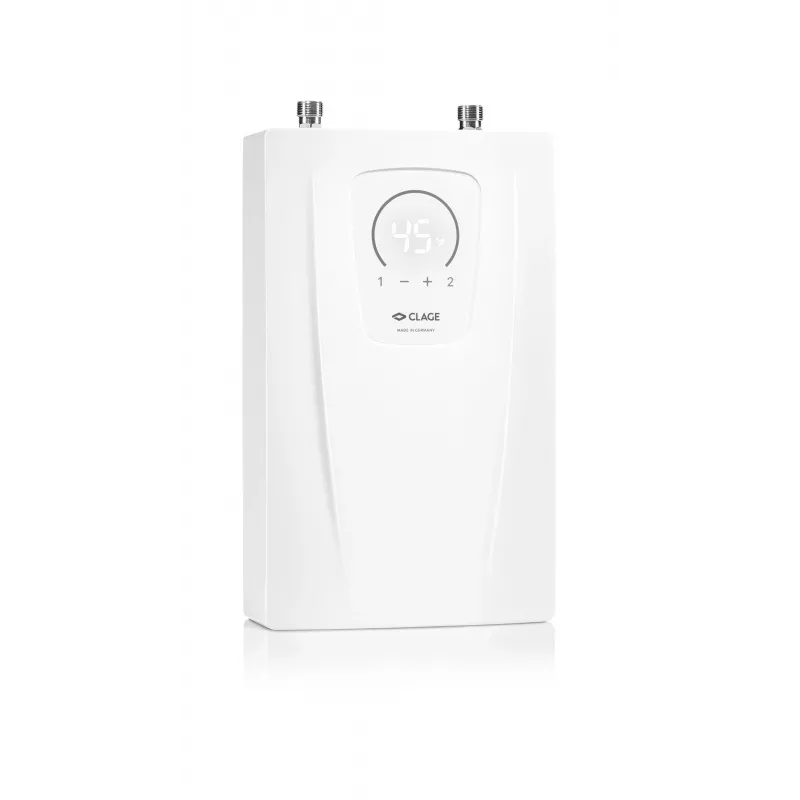

The CLAGE CEX-U ELECTRONIC MPS is a high-performance instantaneous water heater designed for under-sink installation. With selectable heating capacities of 11 kW or 13.5 kW, it provides precise electronic temperature control from 20 °C to 60 °C, ensuring a comfortable and energy-efficient hot water supply. The MPS (Multiple Power System) allows adaptation to different electrical installations, making it versatile for various applications.

Advantages

Energy efficiency class A helps reduce electricity costs. The bare wire heating technology ensures rapid heating and long service life. The LCD display provides clear status information, and the IP25 protection rating makes it splash-proof for safe installation near water sources.

Suitable for

• Under-sink hot water supply in kitchens or bathrooms
• Point-of-use applications where instant hot water is needed
• Replacement of older storage tank heaters

Key specifications

• Selectable heating capacity: 11 kW / 13.5 kW
• Voltage: 400 V (3-phase)
• Nominal current: 16 A / 20 A (selectable)
• Energy efficiency class: A
• Temperature range: 20 °C - 60 °C
• Water connection: G 1/2"
• Minimum flow rate: 2.0 l/min
• Max. operating pressure: 1 MPa (10 bar)
• Protection rating: IP25
• Display: LCD

Recommendations

For optimal performance, ensure proper electrical supply (400 V 3-phase) and water pressure. Compatible with remote control for added convenience. Suitable for pre-heated water from solar or other systems.
