Hub portátil 5 en 1 con Smart Power CLUB3D certificado Thunderbolt™4

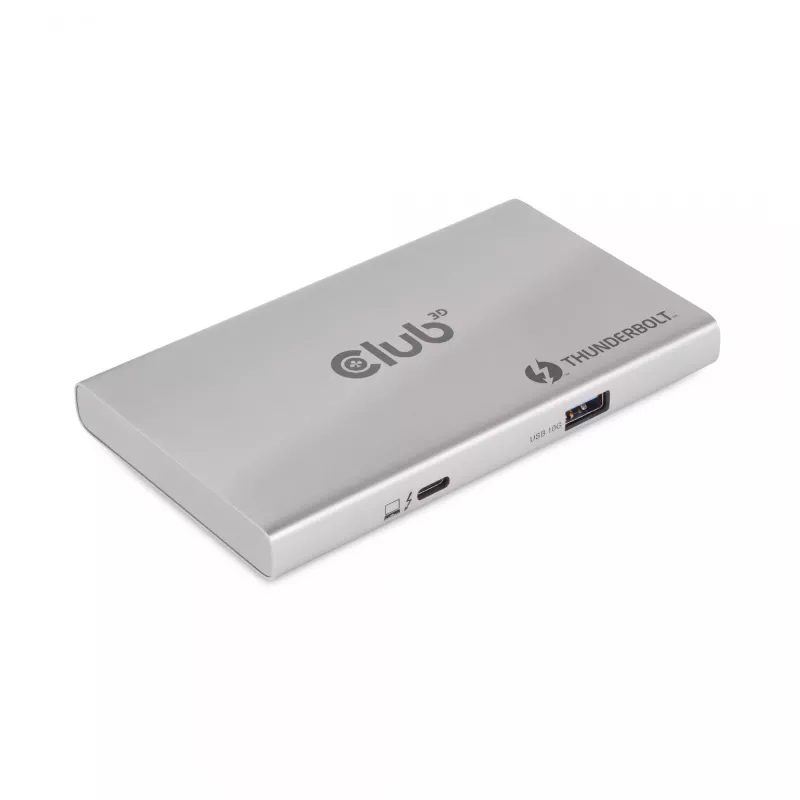

The Club 3D CSV-1580 is a certified Thunderbolt™ 4 portable 5-in-1 hub that delivers up to 40 Gb/s for data and video. It provides three Thunderbolt™ 4 downstream ports for cascading devices and supports connection to USB Type-C devices while simultaneously supplying power to the host. The hub supports Smart Power distribution to allocate external power according to connected devices and is intended for Thunderbolt™ 4 hosts on Windows 10 and for Thunderbolt™ 3 Macs running macOS 11 or later.

Advantages

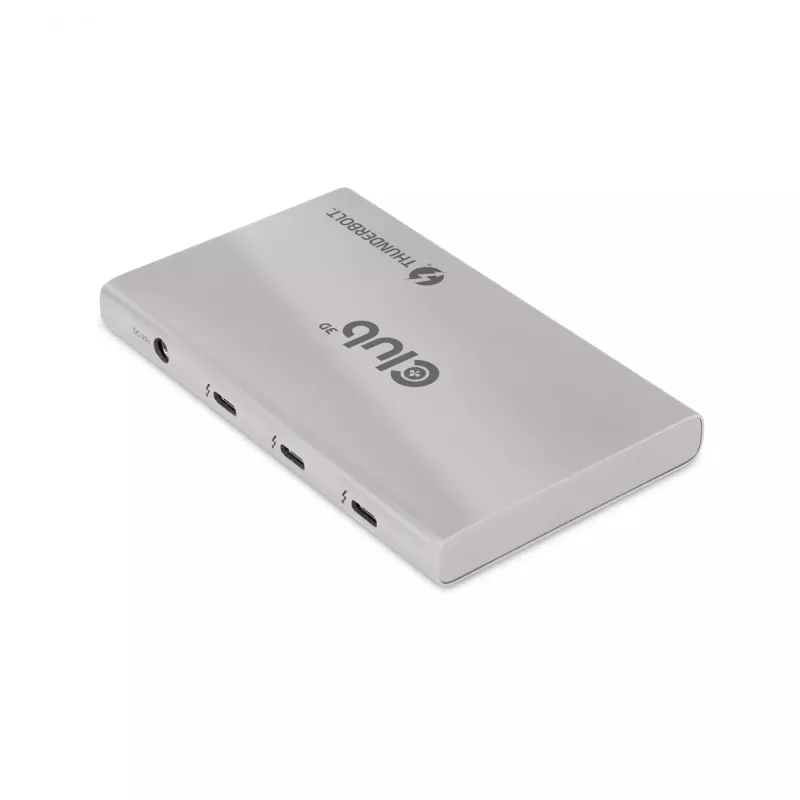

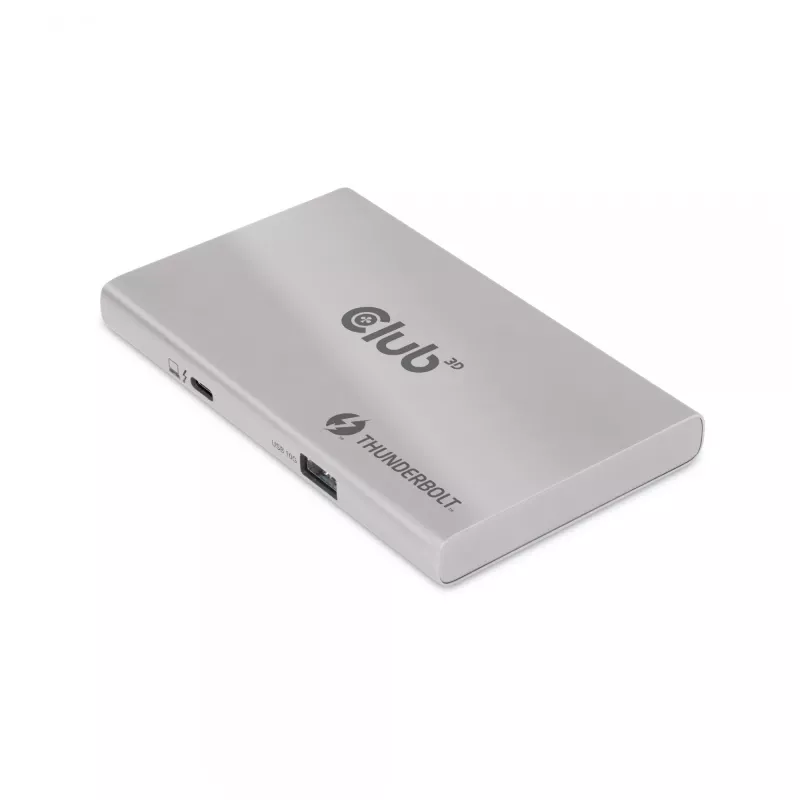

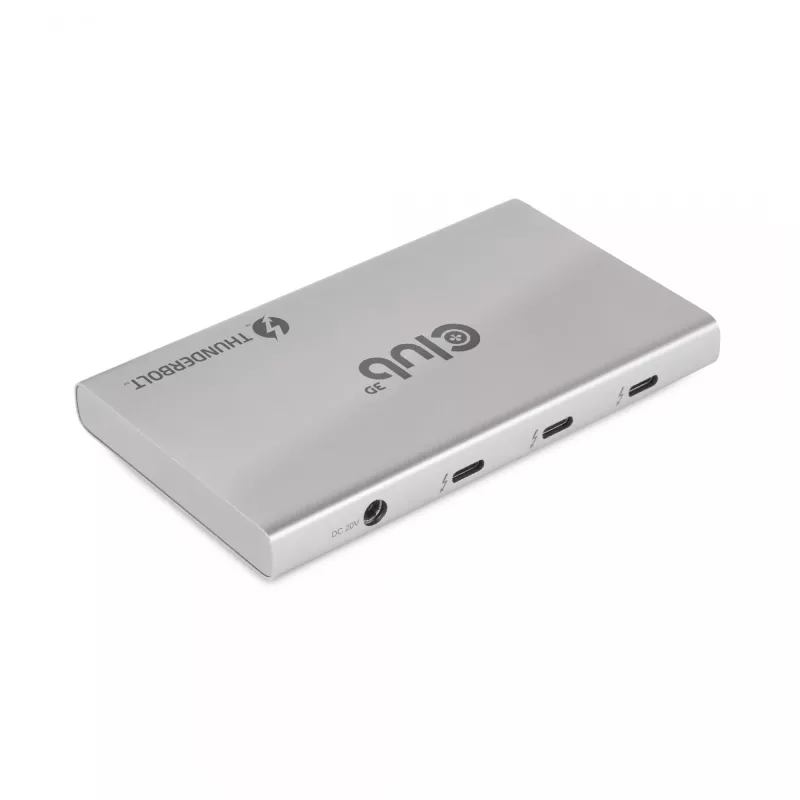

This compact silver hub combines multiple high-speed I/O ports in one unit, enabling single-cable connectivity for video, data and power. With three Thunderbolt™ 4 downstream ports you can cascade peripherals or connect one 8K@30Hz display or two 4K@60Hz displays. The Smart Power function helps allocate the external DC supply efficiently to connected devices. The product is certified (CE, FCC, RoHS) and designed to work with Thunderbolt™ 4 hosts and compatible Thunderbolt™ 3 Macs.

Suitable for

• Expanding ports on Thunderbolt™ 4 laptops and desktops

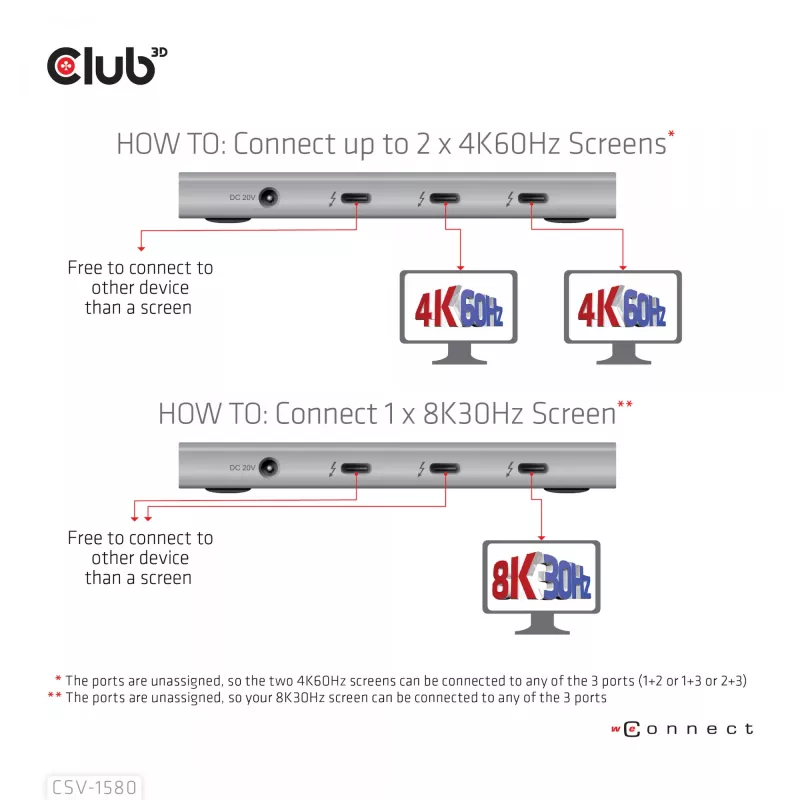

• Connecting multiple high-resolution displays (8K@30Hz or dual 4K@60Hz)
• Attaching Thunderbolt™ devices in a daisy-chain configuration
• Connecting USB Type-C peripherals while charging the host

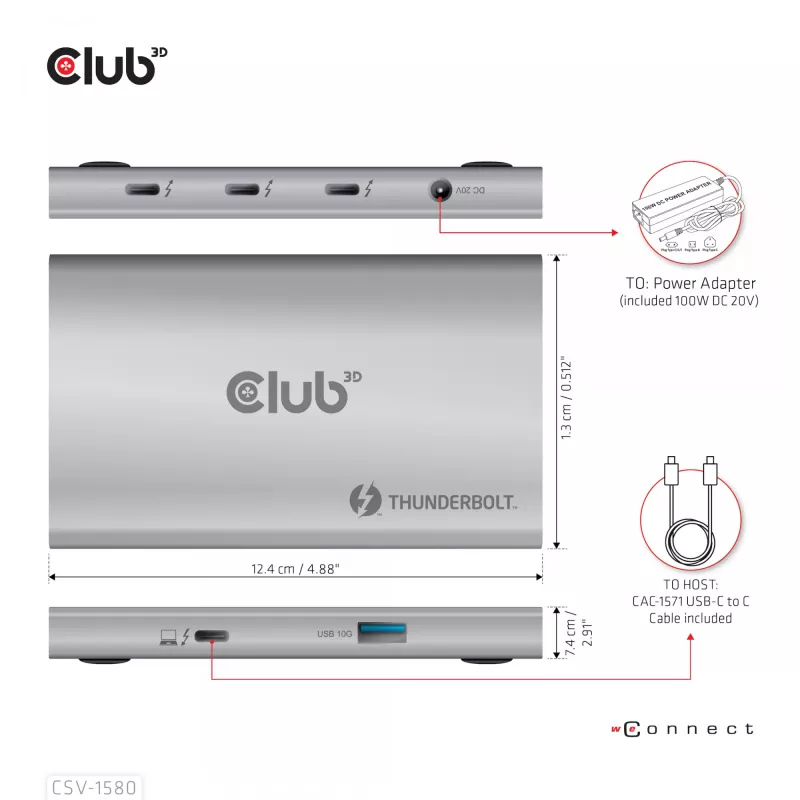

Key specifications

• Model: CLUB3D CSV-1580
• Interface: Thunderbolt™ 4 host
• Data/video bandwidth: up to 40 Gb/s

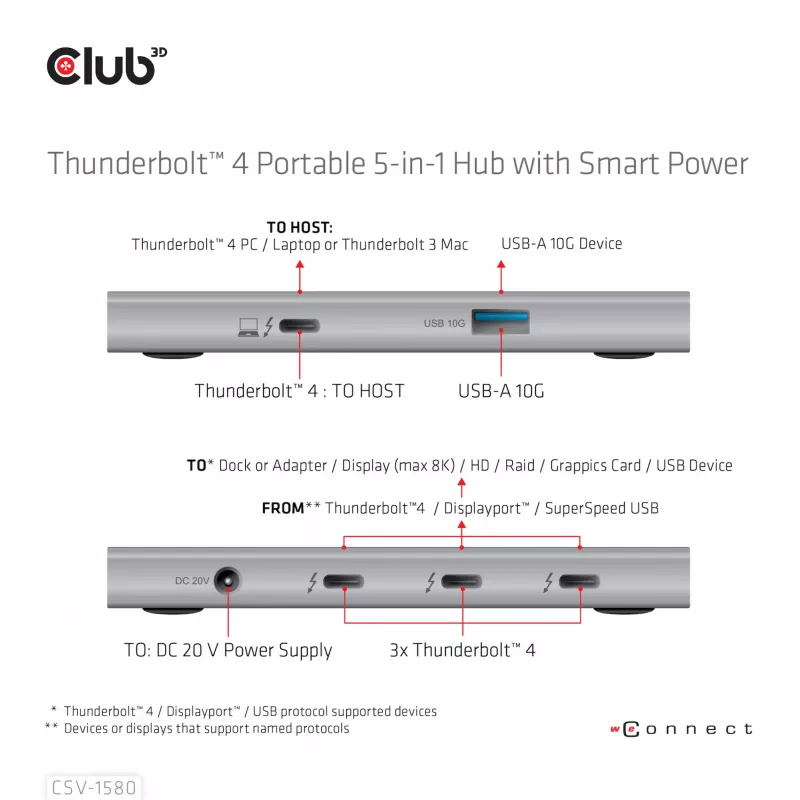

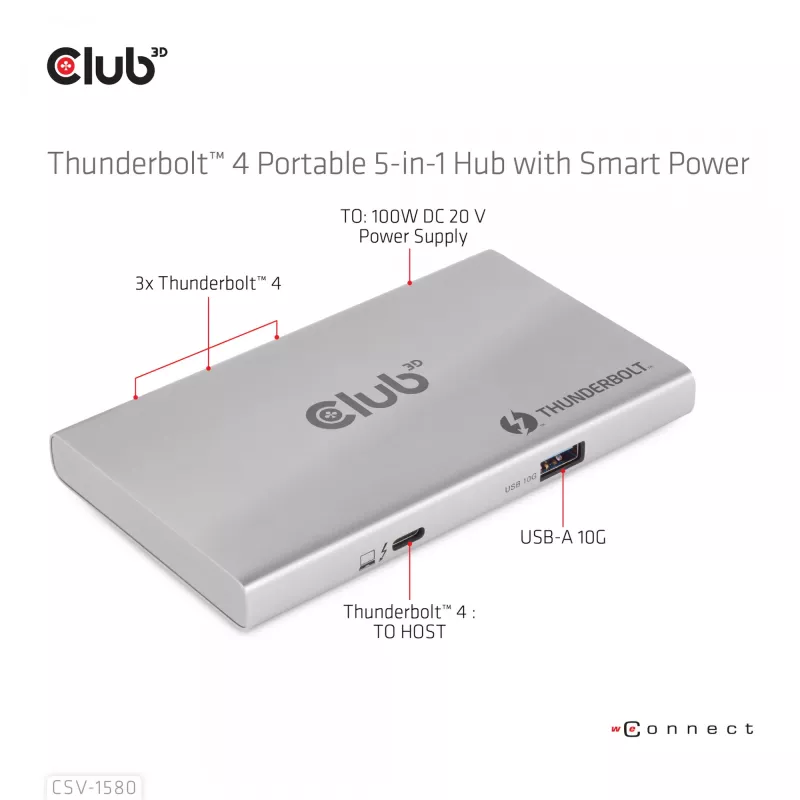

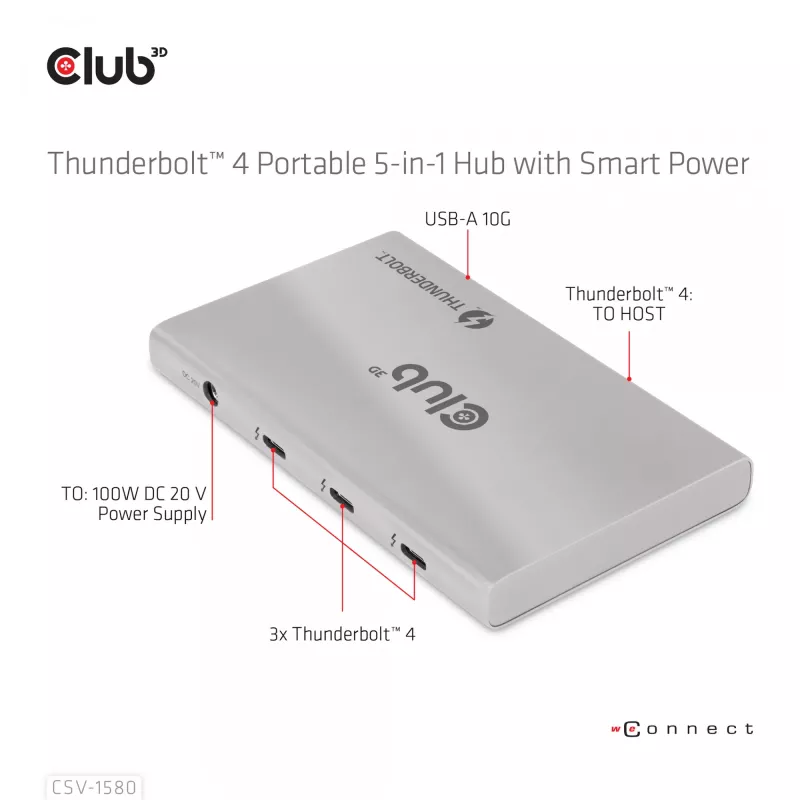

• Downstream ports: 3 × Thunderbolt™ 4
• Power source: DC external power (Smart Power distribution)
• Output voltage: 20 V
• Power supply: 10 W (product summary value)
• Colour: Silver
• Weight: 0.165 kg
• Certifications: CE, FCC, RoHS

How to use

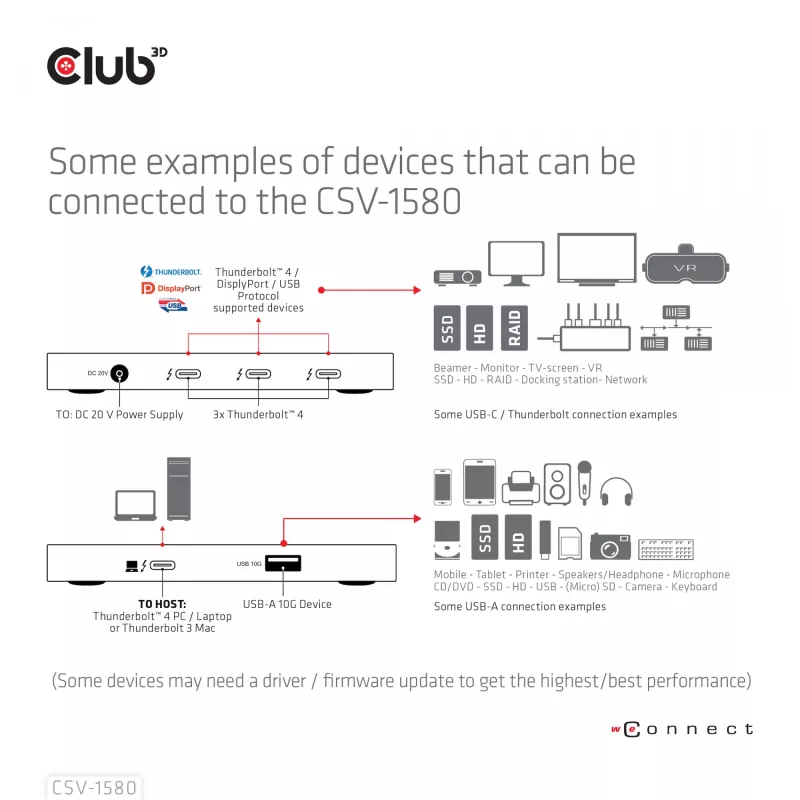

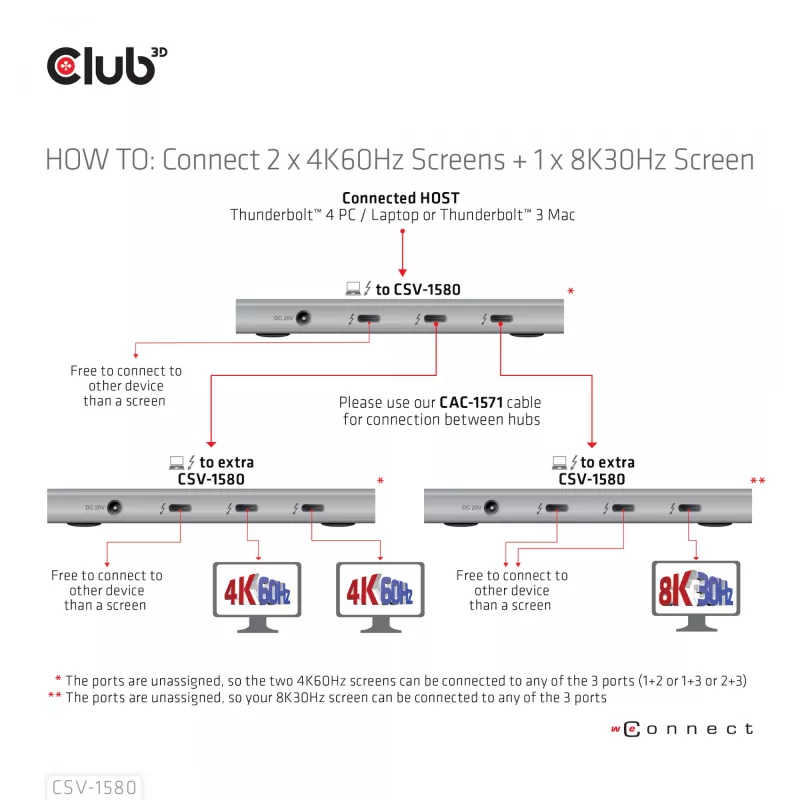

Connect the hub to a Thunderbolt™ 4 host using the provided cable or a compatible Thunderbolt™ 4 cable. Attach an external DC power adapter to enable Smart Power distribution and supply connected devices. Plug downstream Thunderbolt™ 4 or USB Type-C peripherals into the hub’s ports. For display output, connect one 8K@30Hz monitor or two 4K@60Hz monitors to the Thunderbolt™ 4 downstream ports; ensure the host and displays support the chosen resolutions and refresh rates. Use daisy-chaining to connect additional Thunderbolt devices as required.

Recommendations

Use a certified Thunderbolt™ 4 cable and an adequate DC power adapter to ensure full performance and stable power distribution. Verify host OS compatibility (Windows 10 for Thunderbolt™ 4 hosts; macOS 11+ for Thunderbolt™ 3 Macs) and update device firmware and drivers when necessary.
